TEX1002LCD

Name: TEX1002LCD
Brand: RVR
SKU: TEX1002LCD
Price: 6743 NGN
Availability: OutOfStock

RVR

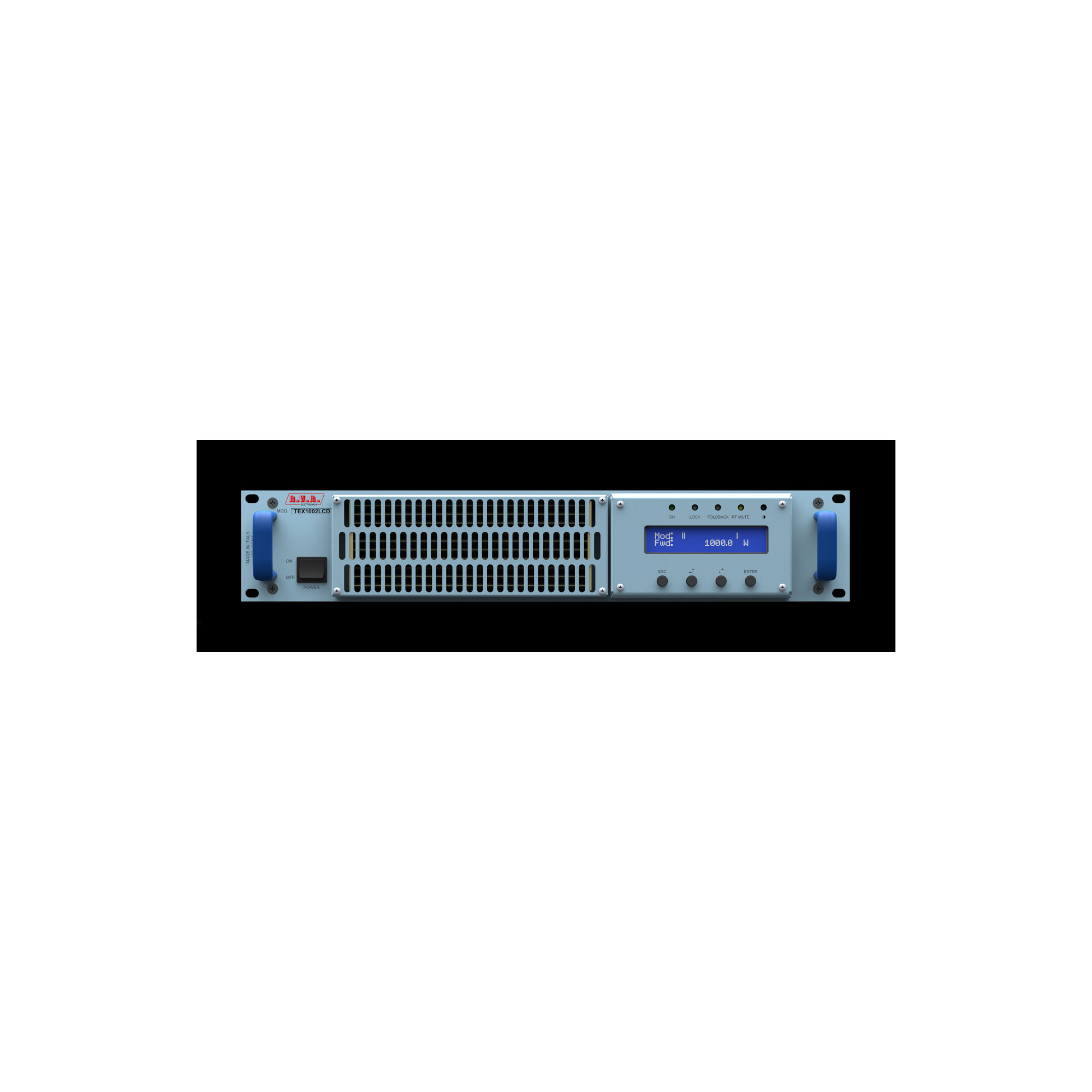

Compact FM Transmitter 1000W - Mono - Stereo - Multiplex

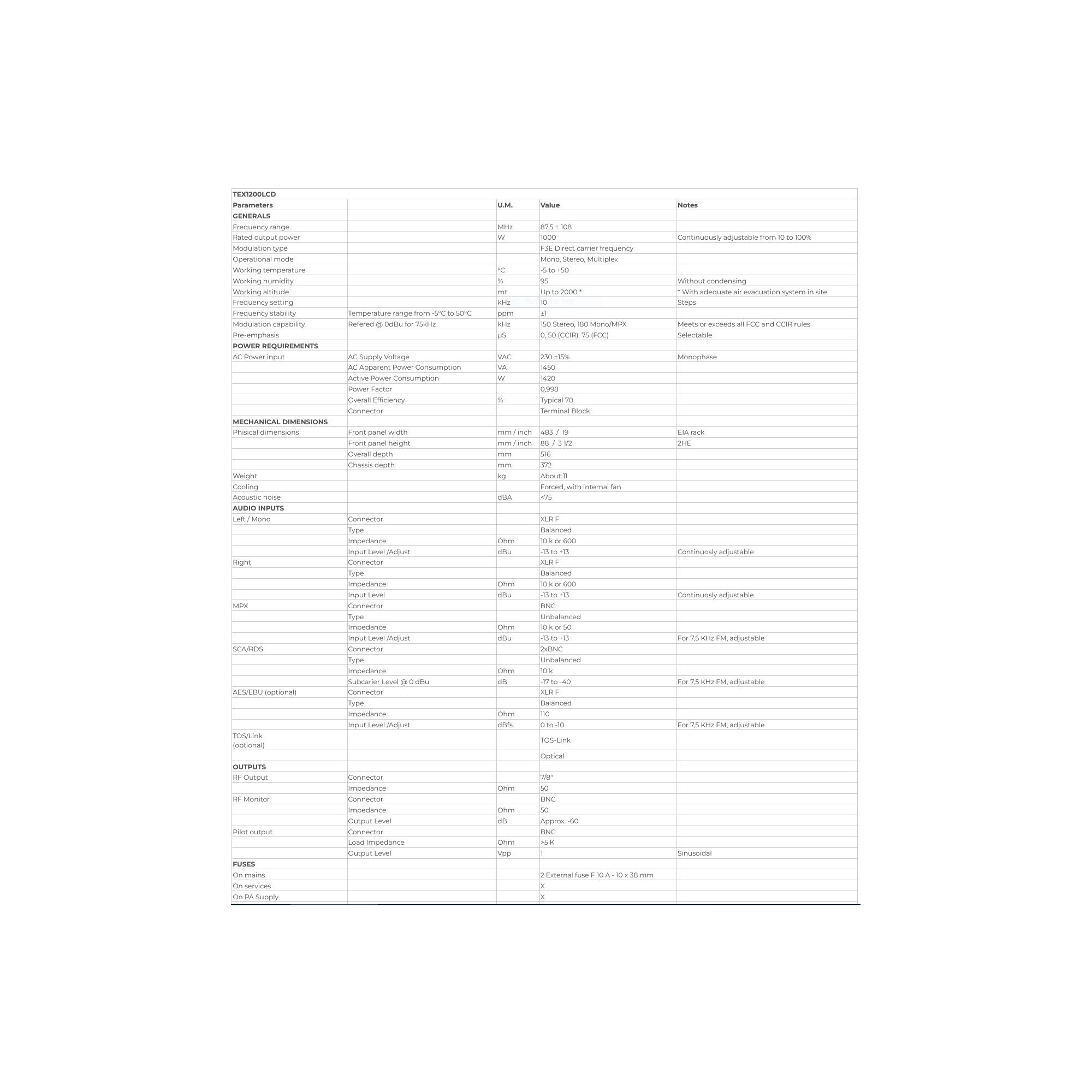

go to the technical sheet

₦ 6,743.00

₦ 6,272.70 VAT excl.

Available in 60 days

Not sure if this is the right product for you? Talk to a consultant

RVR Compact FM Transmitter 1000W - Mono - Stereo - Multiplex. It represents the state-of-the-art technology in full compliance with EC, FCC and CCIR standards.
Easy to setup with only 4 four pushbuttons, you can navigate the menu with all key parameters displayed on LCD.
This transmitter is able to supply a strong continuous power with the highes reliability of the market thanks to the great experience of the producer and high quality of the components.
Ideal for use as transmitters in stand-alone applications. Adjustable power output from 10 to 100%.

General
Frequency Range: FCC- CCIR - OIRT - JPN
Rated Output Power: 1000W
Modulation Type: Direct Carrier frequency
Operational Mode: Mono - Stereo - Multiplex
Enviroment working conditions: -10° to 45° - max 95% relative humidity not condensing
Frequency programmability: From software - 10KHz step
Frequency stability: from - 10° to +50° -> +/-1ppm
Modulation capability: 150 KHz Stereo, 180 KHz Mono / Mpx
Pre-emphasis mode: 0uS, 50uS (CCIR) , 75 uS (FCC)

Power Requirement
AC Power Supply: 230 Volt
Consumption: 1420W
Connector: VDE Iec standard

Weight - Dimensions
Dimensions (L x H x W): 483x88x516 mm
Weight: 11 Kg
Acoustic noise: < 75 dBA

Audio input
Left/Mono/ Right: 10Kohm or 6000ohm XLR
AES/EBU: 110 ohm (optional)
TOSLINK: (optional)

Output
RF Output: 50 ohm (7/8" EIA Flange Type)
RF Monitor: 50 ohm (BNC)
Pilot output: > 5kohm (BNC)
