Lifto 25

Name: Lifto 25
Brand: Cartoni
SKU: Lifto 25
Price: 2860.39 EUR
Availability: InStock

Cartoni

EAN: 4270625673798

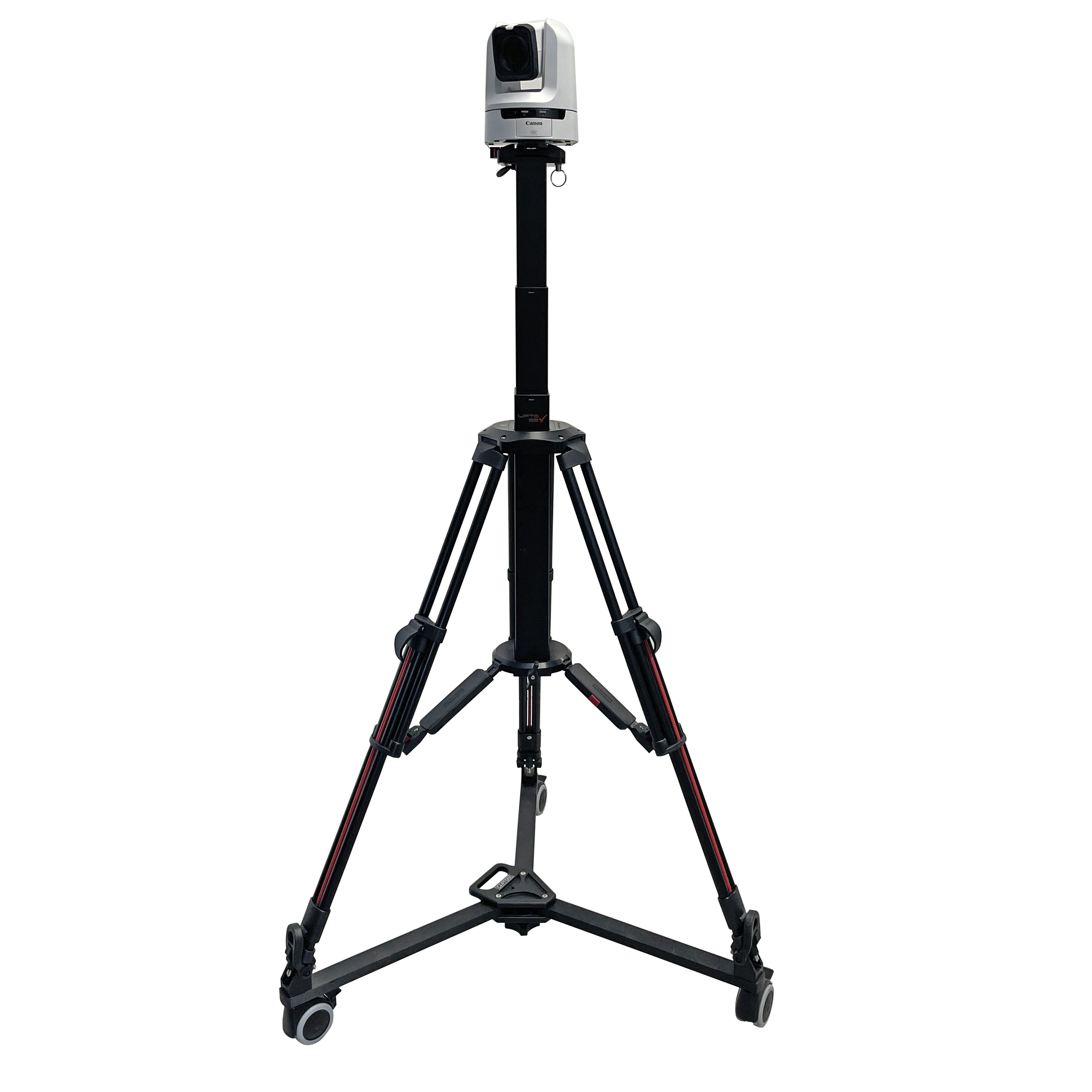

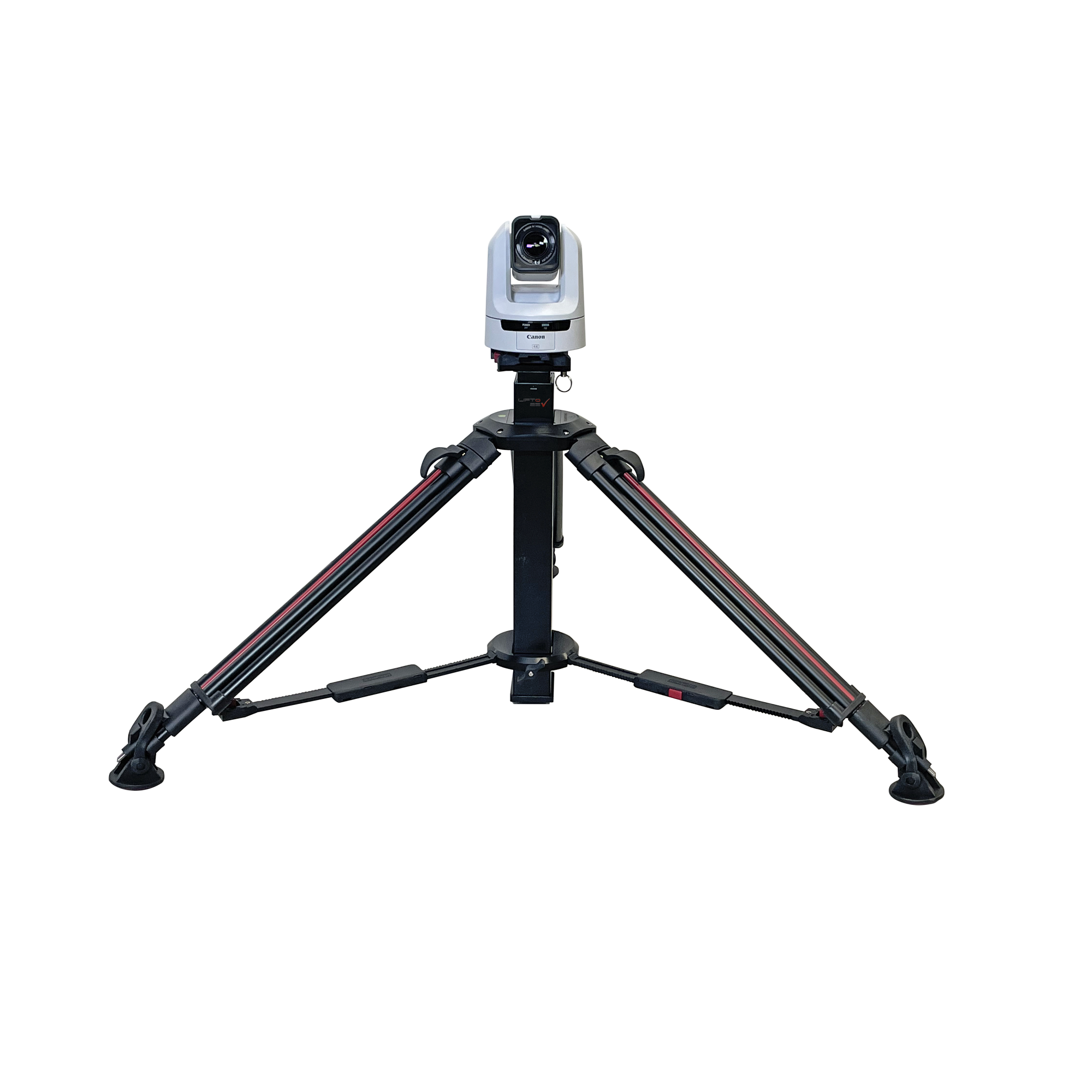

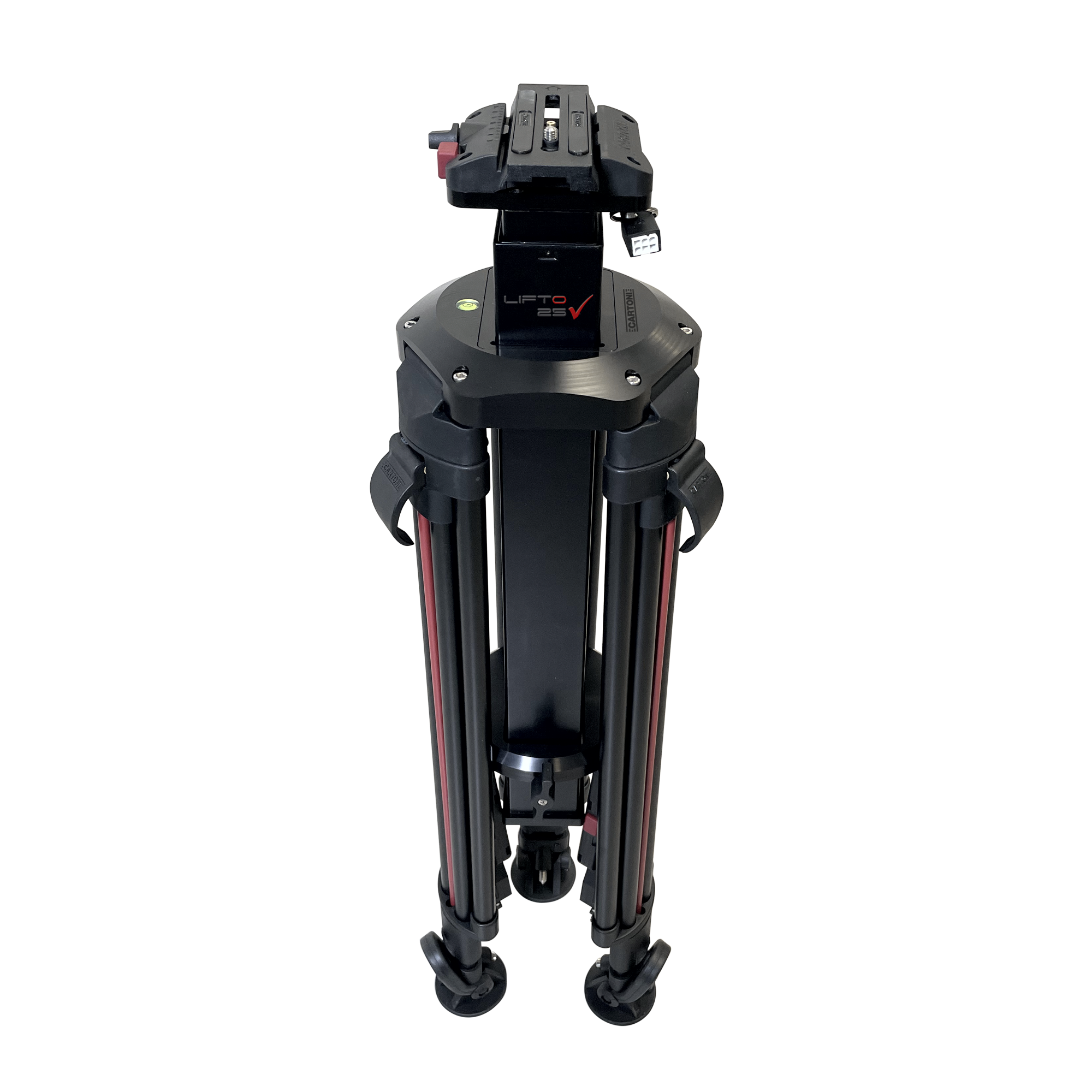

Cartoni Lifto 25V PTZ Elevation Column max. Payload 25 kg

go to the technical sheet

-2.5%

Save 2.5%

€ 2.860,39

€ 2.660,83 VAT excl.

€ 2.933,73

Available 1 unit in 4 Days

Datasheet: Download

Not sure if this is the right product for you? Talk to a consultant

Cartoni Lifto 25V PTZ Elevation Column max. Payload 25 kg

The LIFTO 25 motorized remote controlled elevation column, specifically designed for PTZ cameras, adds extremely smooth on-air quality vertical moves and creativity to en-hance productions.

The increasing need for robotics in small studios, newsrooms, talk shows, educational and houses of worship, make the Lifto 25 a must have in studio or eventing.

The Lifto 25 adds to the Pan & Tilt, and zoom control, additional height movement as a natural feature.

The easy and reliable control unit is connected via wire or optional Bluetooth.

The special Cartoni SDS tripod structure ensures great stability and torsional rigidity to the column and allows accurate movements, including shots with wide angle aperture.
The motor actuator is ex-tremely silent and operates with no vibration.

Lifto 25 offers broadcast quality performance and height range at a competitive price.

° For more informations consulting the Brochure

Download

Datasheet

Download (481.5KB)

Weight: 11.8 kg - 26lbs
Maximum payload: 25 kg - 55.1 lbs
Speed: 38 mm/s
Column interface fixing method: Quick release camera plate
Stroke: 700 mm - 27,5 in
Minimum height: 600 mm - 23 in
Maximum height (feet): 2381 mm (93.7 in)
Maximum height (dolly): 2500 mm (98.4 in)
Overall dimensions (storage): f251 x 838 mm (f9.9 x 33 in)
Footprint diameter (minimum height): 1306 mm (51.4 in)
Input voltage: 24 V
Maximum current consumption: 12.5 A
Duty cycle: 10%
Working temperature range: -10°C/+40°C (14°F/104°F)
Storage temperature range: -20°C/+70°C (-4°F/158°F)

L IFTO 25
Rubber feet (AT871)
Quick release camera plate (AH943)
Power supply
Input device;
Motor cable 2.5 m/8.2 ft
Motor cable extension 2 m/6.6 ft]
RJ 45 coupler
EU power plug
Self-winding cables protective sock
Safety ring (wiring strain relief + PTZ safety leash)
