Drive+ 4KN 35X - USB - W

Name: Drive+ 4KN 35X - USB - W
Brand: Telycam
SKU: Drive+ 4KN 35X - USB - W
Price: 2207780 NGN
Availability: OutOfStock

Telycam

EAN: 766674035594

PTZ Live Streaming Camera, 4K NDI, POE, 35x, 1/1.7", 12MP UHD CMOS - White

go to the technical sheet

₦ 2,207,780.00

₦ 2,053,749.00 VAT excl.

Available in 14 days

Manuale: Download

Not sure if this is the right product for you? Talk to a consultant

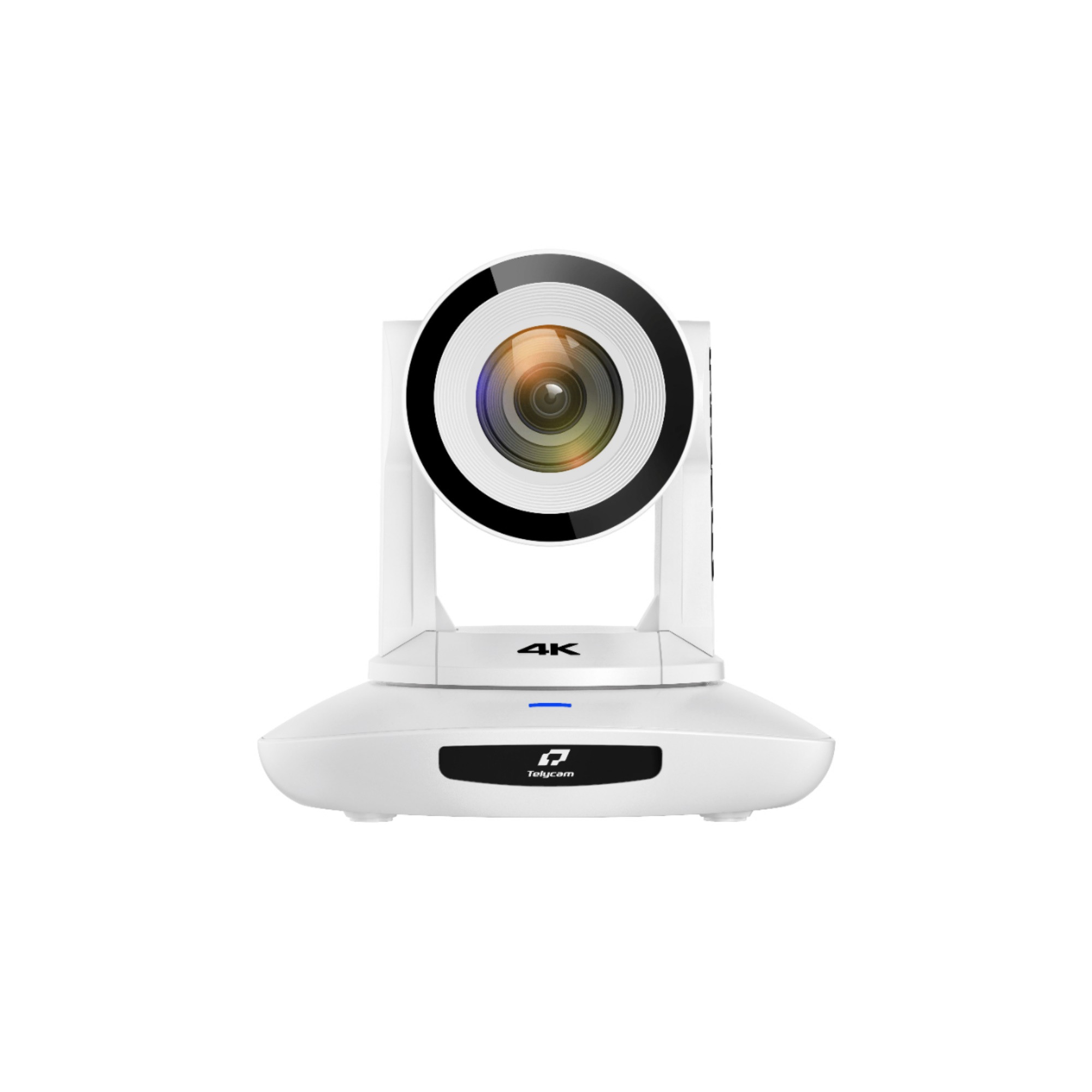

Telycam PTZ Live Streaming Camera, 4K NDI, POE, 35x, 1/1.7", 12MP UHD CMOS - White

- 4K UltraHD resolution
- 35x optical zoom
- NDI®|HX/3G-SDI/HDMI/USB3.0 available
- Incorporates the latest NDI ®|HX 5.5 SDK
- RTMP/RTSP support
- SRT supported
- Tally schedule and preview
- Built-in professional-grade audio input for line input.
- Power via Ethernet

4K and HD resolution
Drive+4KN 35X is equipped with a cutting-edge image processor, 1/1.7 inch 12 megapixel sensor and produces an ultra-high definition video resolution of 3840*2160 p30 to display clear, sharp and lifelike images to users, even in poorly lit working environments.

35x optical zoom
Shoot with a 4K 35x optical zoom lens with a 60-degree field of view and a proprietary focusing algorithm enables fast and precise focusing performance when zooming or panning, to capture every detail of the scene.

3G-SDI/HDMI/USB3.0 available
In addition to NDI ®|HX, 3G-SDI, HDMI and USB3.0 also output images simultaneously.
3G-SDI and HDMI are suitable for conventional video production workflow, and the USB output can be used as a high-end webcam.

Smooth and silent PTZ movement
Pan, tilt and zoom in real time with motorized PTZ camera control and configurable preset positions.
Focus, white balance, exposure and iris can be adjusted automatically or manually.
128 presets supported, Exposure parameter and white balance parameter can be saved in presets (in manual mode).

Incorporates the latest NDI ®|HX SDK
Newtek's NDI® creates a plug-and-play environment for various live streaming products and platforms, allowing you to produce abundant and diverse live content.

PTZ cameras Networking

Telycam

TLC-W10

₦ 76,378.00 VAT included

Available in 14 days

Telycam

V-Joy+

₦ 810,549.00 VAT included

Available 4 unit in 4 Days

Tp-Link

Switch8 POE+

₦ 324,326.00 VAT included

Available 3 unit in 4 Days

Download

Manuale

Download (1.86MB)

Sensor
Sensor: 1/1.7 inch, 12MP UHD CMOS
S/N Ratio: =50dB
Video Format:
- HDMI:3840*2160P30/25, 1920*1080P60/50/30/25/59.94/29.97/24, 1920*1080I60/50/59.94, 1280*720P60/50/30/25/59.94/29.97
- NDI®|HX:3840*2160@15~30, 1920*1080@15~60, 1280*720@15~60, 1024*576@15~60, 640*360@15~30(low bandwidth mode)
- 3G-SDI:1920*1080P60/50/30/25/59.94/29.97/24, 1920*1080I60/50/59.94, 1280*720P60/50/30/25/59.94/29.97
- USB 3.0:1920*1080P60/50/30/25(USB3.0), 1280*720P60/50/30(USB3.0), 1280*720P25(USB3.0&USB2.0), 1024*576P30(USB3.0&USB2.0), 960*540P30(USB2.0), 640*360P30(USB2.0), 512*288P30(USB2.0)

Lens
Zoom: 35X optical zoom
Lens: f = 5.8mm ~ 203 mm, F1.5 ~ F4.8
Horizontal View Angle: 60°(Wide) - 2.02°(Tele)
Vertical viewing angle: 45.32° - 1.51°
Diagonal viewing angle: 70.0° - 2.51°
Minimum Working Distance: 1.5m

Image Parameters
Noise Reduction: 2D&3D
Minimum lux: 0.5Lux (50 IRE Max AGC,1/30, F1.8)
White Balance: Auto/Manual/Auto tracking/Push/Indoor/Outdoor/Color Temperature
Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
Anti-Flicker: OFF,50Hz,60Hz
Image Flip: Support
Mirroring: Support
Focus: Auto/Manual
Iris: Auto/Manual
Electronic shutter: Auto/Manual
Gamma: Support
WDR/BLC: Support

IP Streaming
Video Encoding: H.264/H.265
Bitrate Control: Variable bitrate(VBR), Constant bitrate(CBR)
Bitrate Range: 1024Kbps - 61440Kbps
Network Port Speed: 1000M
Protocol: NDI®|HX,SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP, TCP, UDP, VISCA, PELCO P/D

Pan/Tilt Movement
Preset: Remote controller: 10, Serial port: 128, Accuracy:0.1°
Pan Rotation Angle: -170° - +170°
Tilt Rotation Angle: -30° - +90°
Pan Rotation Speed: 0.1° - 120°/s
Tilt Rotation Speed: 0.1° - 80°/s

I/O Interface
Control Port: RS232, RS485, NDI®|HX, USB3.0 (UVC1.5), USB2.0 (UVC1.1)
Video Port: NDI®|HX, HDMI, 3G-SDI, USB Type-C
Audio Port: Dual 3.5mm line in
Tally: Support
POE+: Support
Daisy Chain: Support

General
Input Voltage: DC12V, POE+(IEEE802.3at)
Power Consumption: PoE+: IEEE802.3at (Pmax=10W), DC: 12V 2A (Pmax=10W)
Operating Temperature: -10°C - 50°C
Operating Humidity: less than or equal 80%
Color: White
Dimension (L×W×H): 220mm×190mm×205.8mm
Net Weight: 1.75kg
