Aida

0720260897607
1/2.5" sensor PTZ IP Broadcast streaming H.264 or H.265 camera RTSP/RTMP 20x
go to the technical sheet
₦ 1,951,876.00

₦ 1,815,699.00 VAT excl.

Available in 9 days
Manufacturer: go to website
Not sure if this is the right product for you? Talk to a consultant

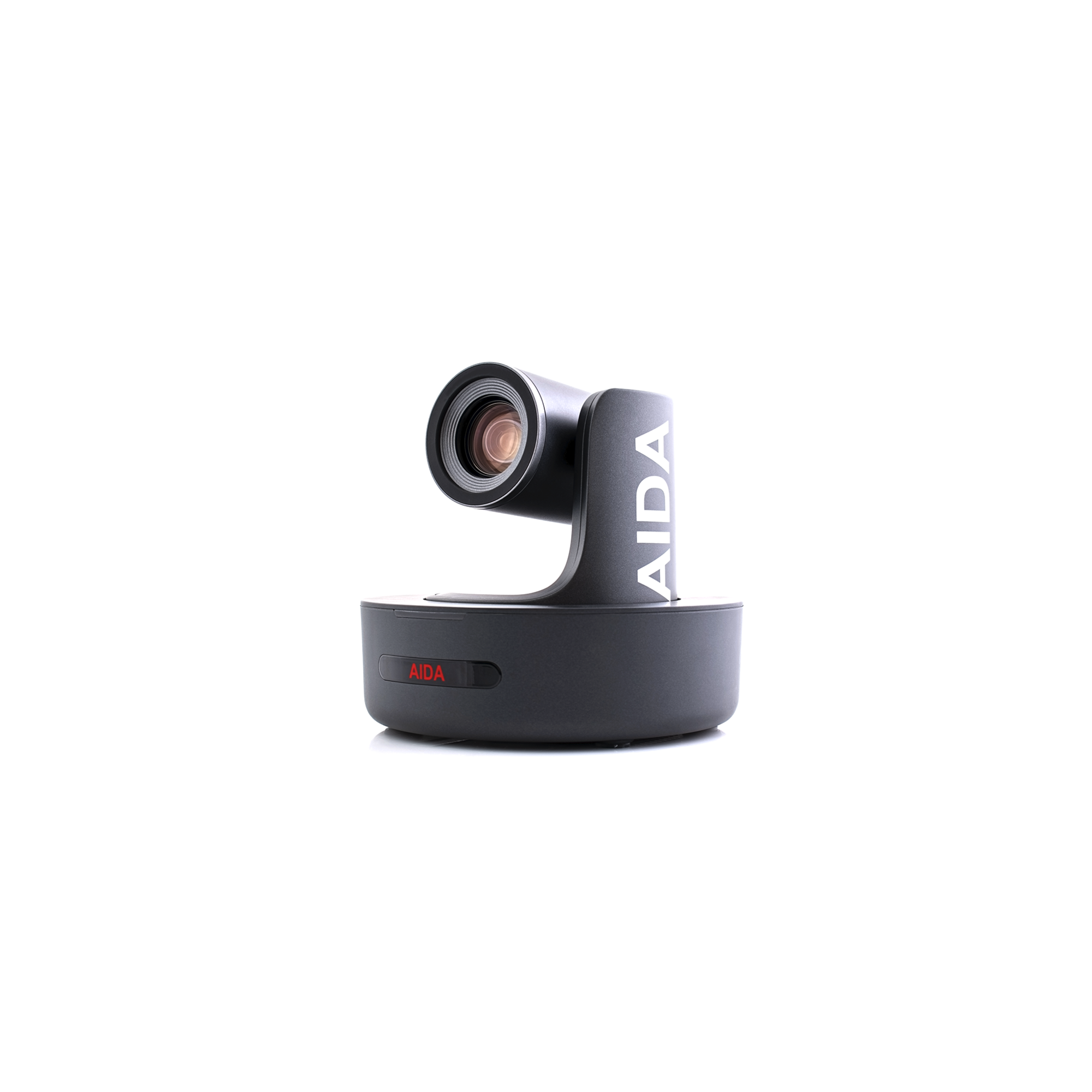

The PTZ-X20-IP is one of AIDA's most well-rounded Full HD cameras yet. The camera features IP streaming technology by H.264 or the newer H.265 High Efficiency Video Coding (HEVC). With integrated RS232 and VISCA over IP camera control, this camera is compatible with most IP based controllers, simplifying existing workflows with better cable management. The camera features traditional multi video format outputs such as 3G-SDI, HDMI, USB 3.0, as well as online video outputs RTSP/RTMP. Our camera's cost effective approach makes professional grade PTZ cameras, at the fraction of the price.
MAIN FEATURES

Full HD Progressive Scan sensor captures sharp and vivid color.

Advanced digital image processor provides vivid and detailed images with full access feature sets.

Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion
video without blur.

3G/HD-SDI, HDMI, RJ-45, USB 3.0, and USB 2.0 for versatility and seamless video performance.

Power Optical Zoom capability up to 20X.

Compatible with other industry leading products, conforming with SMPTE 424M/292M standard.

Auto White Balance and shutter speed provides the optimized performance in a variety of situations.

Built-in OSD controls for customizable image settings.

Versatile and compact.

FLOW2000
Swit

FLOW2000

₦ 3,003,388.00 VAT included
Available in 11 days
FLOW500
Swit

FLOW500

₦ 1,429,856.00 VAT included
Available in 11 days
COSMO C1
Hollyland

COSMO C1

₦ 987,978.00 VAT included
Available 3 unit in 4 Days
RCC-6-SDI
Roland

RCC-6-SDI

₦ 16,285.00 VAT included
Available 8 unit in 4 Days
RCC-25-SDI
Roland

RCC-25-SDI

₦ 81,538.00 VAT included
Available 9 unit in 4 Days
RCC-16-SDI
Roland

RCC-16-SDI

₦ 47,138.00 VAT included
Available 3 unit in 4 Days
RCC-10-SDI
Roland

RCC-10-SDI

₦ 43,483.00 VAT included
Available 1 unit in 4 Days
RCC-3-SDI
Roland

RCC-3-SDI

₦ 13,544.00 VAT included
Available 7 unit in 4 Days
RCC-100-SDI
Roland

RCC-100-SDI

₦ 103,575.00 VAT included
Available 7 unit in 4 Days
Mars T1000
Hollyland

Mars T1000

₦ 2,935,286.00 VAT included
Available in 29 days
BR-CZ1 Orange
ON-AIR

BR-CZ1 Orange

₦ 78,259.00 VAT included
Available 1 unit in 4 Days
BR-235105
ON-AIR

BR-235105

₦ 75,894.00 VAT included
Available 6 unit in 4 Days
BR-235155
ON-AIR

BR-235155

₦ 240,315.00 VAT included
Available 8 unit in 4 Days
244RC
Manfrotto

244RC

₦ 482,405.00 VAT included
Available 1 unit in 4 Days
SC-01
ON-AIR

SC-01

₦ 40,526.00 VAT included
Available 1 unit in 4 Days
026
Manfrotto

026

₦ 101,855.00 VAT included
Available 60 unit in 4 Days
143N
Manfrotto

143N

₦ 299,924.00 VAT included
Available 4 unit in 4 Days
143RC
Manfrotto

143RC

₦ 512,774.00 VAT included
Available in 14 days
244N
Manfrotto

244N

₦ 335,453.00 VAT included
Available in 14 days
Arm Mini
ON-AIR

Arm Mini

₦ 43,160.00 VAT included
Available 3 unit in 4 Days
CCS-USB
Aida

CCS-USB

₦ 394,201.00 VAT included
Available 1 unit in 4 Days

Video
Image Sensor 1/2.5" Progressive CMOS
Effective Pixels Horizontal: 1920, Vertical: 1080
Pixel Size 2.13 µm x 2.13 µm
Resolution 1080p & 1080i: 1920 x 1080
Resolution/Rate 1080 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/29.97p/25p
IP Rate 1920 x 1080 @ 1~60
1280 x 720 @ 1~60
1024 x 576 @ 1~60
620 x 360 @ 1~60
Output HD-SDI/3G-SDI
HDMI
RJ45
USB 3.0 & 2.0
Color Space 4:2:2 (YCbCr) 10bit
Min. Illumination 0.1Lux

Function
White Balance Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor
Focus Auto, Manual
Shutter Speed 1 to 1/10,000 Sec.



Lens
Lens 12X HD Optical Zoom, F1.5 ~ F3.0

PTZ
Pan/Tilt Range Pan: 340°, Tilt: +90 to -30°
Pan/Tilt Speed Pan: 0° to +120°/s, Tilt: 0° to +80°/s,
Presets 128 Positions
Field of View 72.5°

Standard
SMPTE SMPTE 292M, SMPTE 424M
IP Protocol TCP/IP, RTSP/RTMP

Physical
Camera Control Protocol: VISCA
Interface: RS-232C IN & OUT, RJ-45
Remote Controller
Operation Temp 32° F - 104° F
Dimension 155mm x 160m x 170mm / 6.10" x 6.92" x 6.69"
Weight 1.35kg / 2.97lbs
Power 12VDC (+9 - +15VDC)
PoE+
