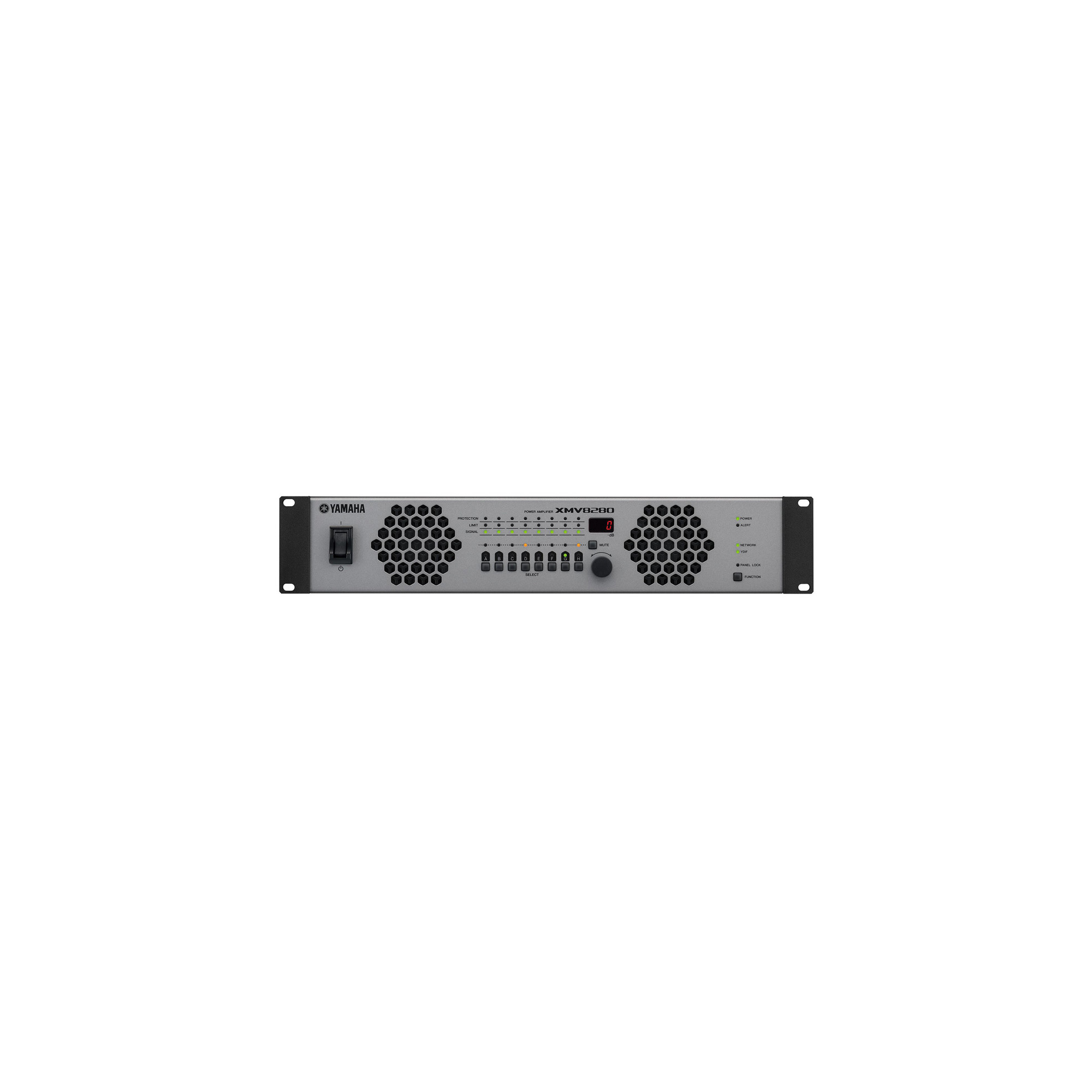

XMV8280

8ch 280W Class D amplifier at 4 ohms or 100V

8 Ch multi-channel amplifier equipped with remote control card via LAN and YDIF connectivity, possibility to choose the low impedance (4 or 8 ohm) or 100 V output mode of each single pair of channels. Power: 8x 280 W at 4 or 8 ohms, possibility of combining 2 channels with Double Power mode with powers of 560 W at 4 or 8 ohm, 8x 250W at 100V, the configuration of the output mode occurs per pair of channels. Front panel with controls for: power on, channel control selection, parameter adjustment encoder, 3-digit numeric display, mute button, function button, indications: power on, signal, mute, protection, limiter, alert, panel lock. Balanced inputs on 3P Euroblock clamp connectors, outputs on fixed terminal connectors, YDIF connections 2x RJ45 IN/OUT, remote control connector Euroblock 3P terminal, Euroblock 3P error output connector. Frequency response 20Hz 20kHz, Input sensitivity 4 dBu, S/N ratio = 100 dB, crosstalk = 60 dB, balanced input impedance 20 kohm, HPF circuit selectable Off/40/80 Hz. Self-resetting protection circuits: short circuit, thermal, over or under power, on/off muting, DC, clip limiter. Cooling with double 3-speed fan, front air intake and rear expulsion. Working voltage 100-240V 450W (1/8 power 4 ohm). Dimensions (HxWxD): 88x480x422 mm, (2U). Weight: 10.1kg.
