Tascam

8-Channel Headphone Amplifier. Tascam MH-8
go to the technical sheet
€ 667,91

€ 621,31 VAT excl.

Available in 11 days
Not sure if this is the right product for you? Talk to a consultant

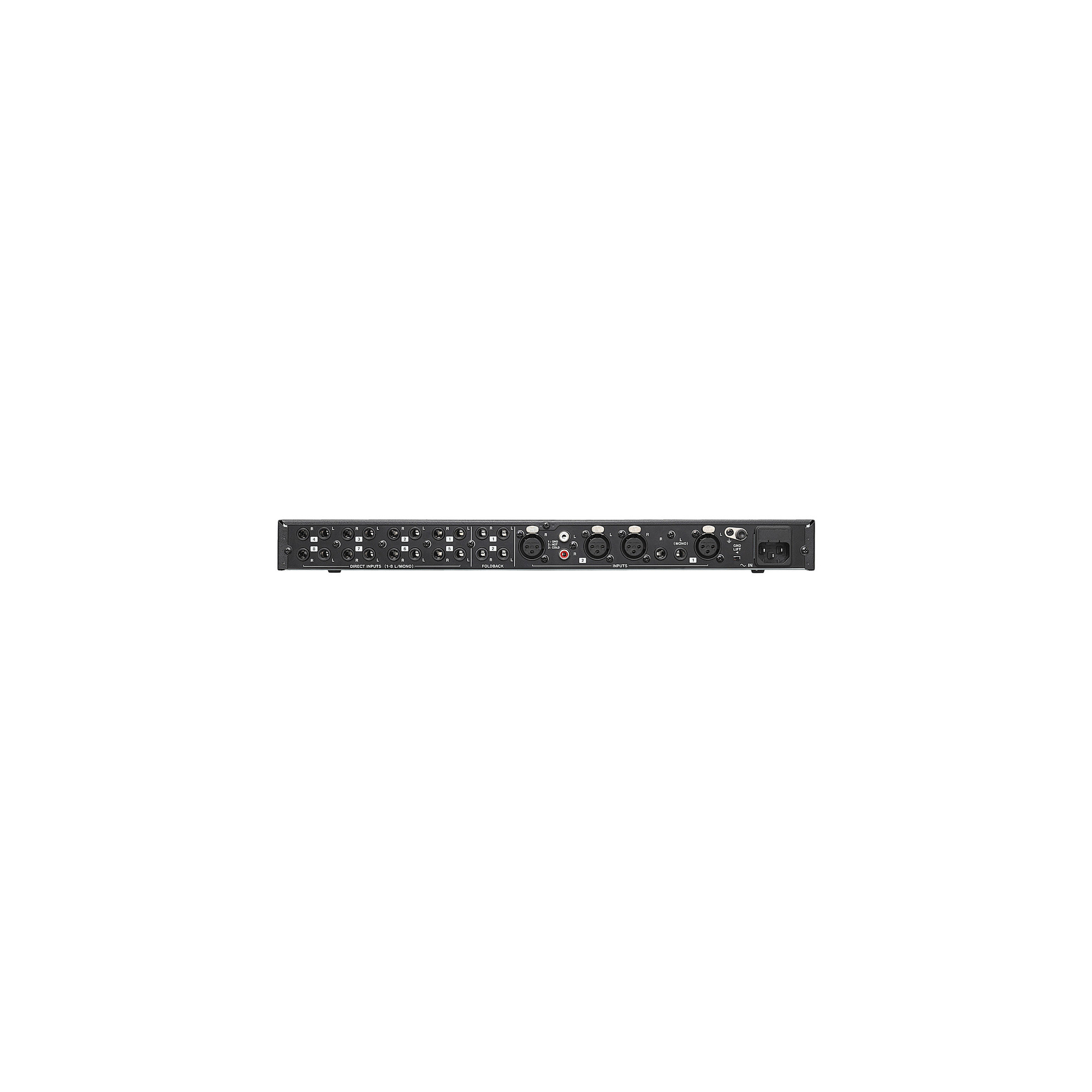

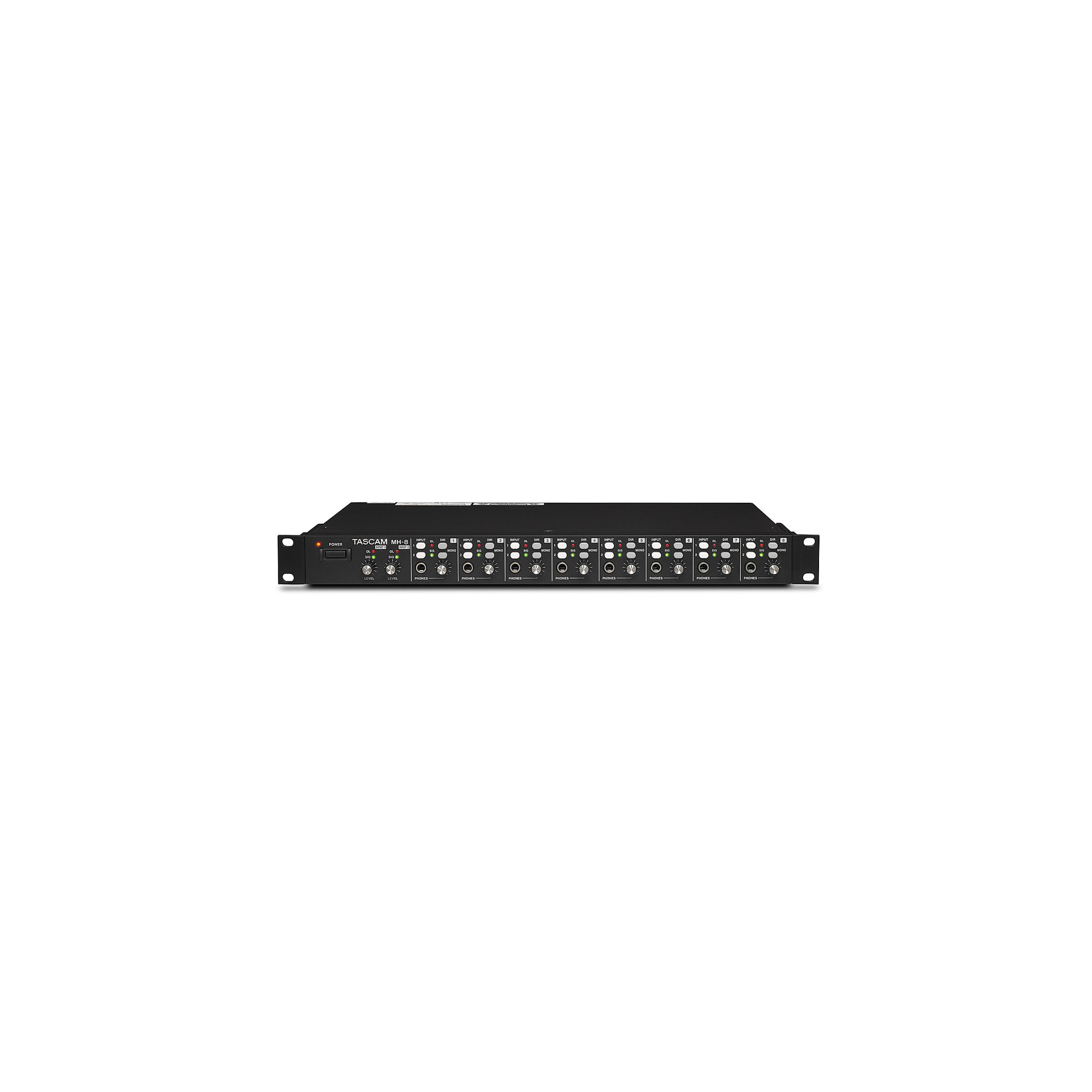

The MH-8 from Tascam is a professional-quality rackmount headphone amplifier that allows 8 listeners to monitor a variety of sources. Each of the 8 channels has its own direct stereo input. There are also 2 stereo channels that can be shared to any of the outputs. Each 1/4" headphone output can select one input, or mix several together. All of the outputs have an individual level control, as well as input selector switches, a mono switch, and signal and overload LED indicators. A set of 4 TRS foldback outputs allow you to daisy-chain multiple units.

Rackmount design for easy installation in any standard equipment rack

Direct stereo input on all 8 channels, plus 2 group stereo inputs

Each channel can select a direct source, group source, or combination of sources

Standard 1/4" headphone jacks with 250mW + 250mW output

Each output channel has a level control, input selector switches, a mono switch, and LED indicators for signal and overload

4 TRS foldback outputs allow you to daisy-chain multiple units

Number of Channels 8
Input Connectors 16 x 1/4" TRS Direct Inputs
4 x XLR Inputs
2 x 1/4" Inputs
2 x RCA Inputs
Output Connectors 8 x 1/4" Stereo Headphone Outputs
4 x 1/4" TRS Foldback Outputs
Maximum Output Level 250mW + 250mW
Function Controls 8 x Channel Level Controls
2 x Main Level Controls
8 x Mono Switches
8 x Sets of Input Selector Switches
Frequency Response Not Specified by Manufacturer
Display LED Indicators for Signal and Overload
Dimensions Not Specified by Manufacturer
Weight Not Specified by Manufacturer
Packaging Info
Package Weight 11.0 lb
Box Dimensions (LxWxH) 22.0 x 15.6 x 5.5"
