XLi800

Name: XLi800
Brand: Crown
SKU: XLi800
Price: 622.05 EUR
Availability: OutOfStock

Crown

Crown Audio XLi 800 Stereo Power Amplifier 20 Hz to 20 kHz +0/-1 dB (at 1 W)

go to the technical sheet

€ 622,05

€ 578,65 VAT excl.

Available in 14 days

Manuale: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

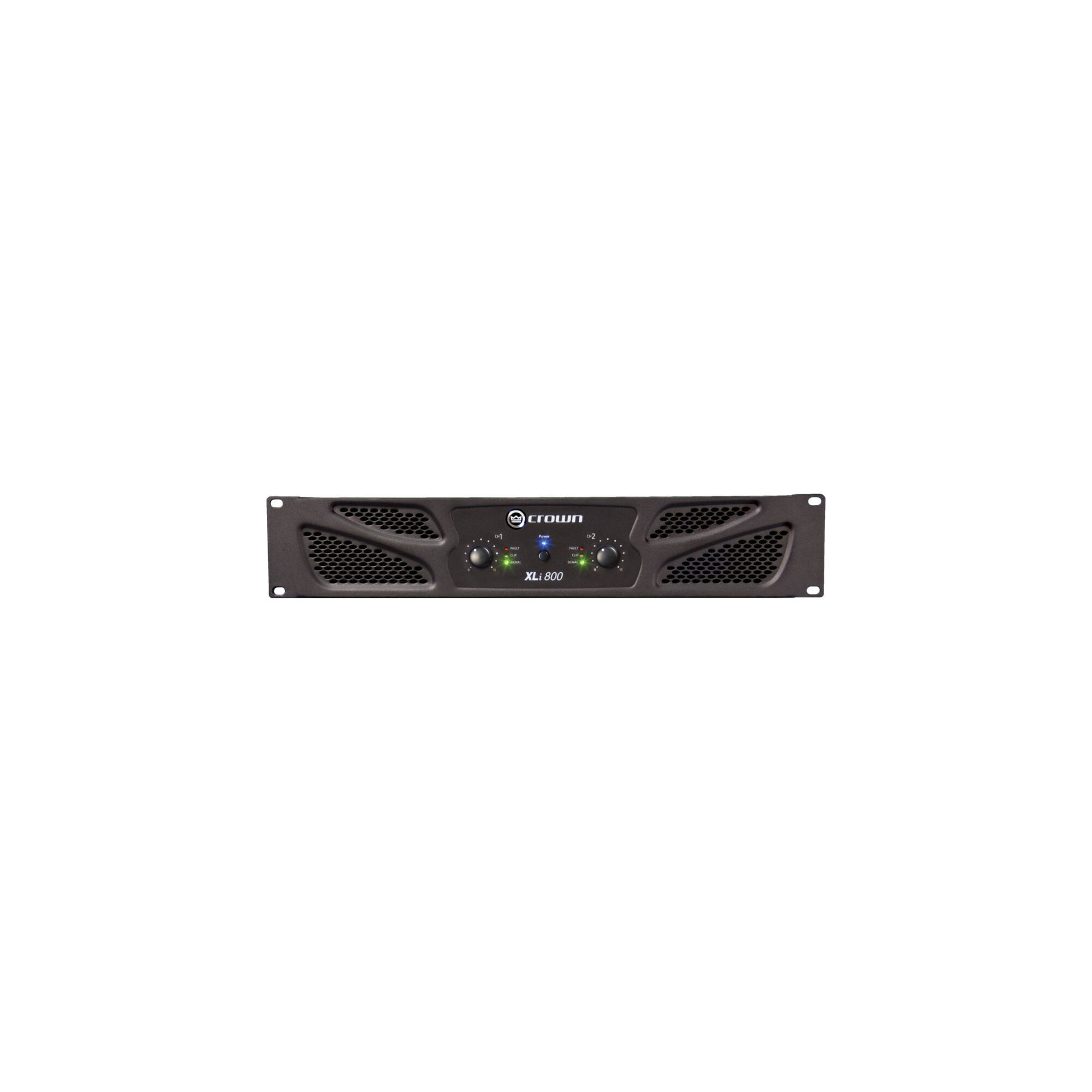

Crown Audio XLi 800 Stereo Power Amplifier 20 Hz to 20 kHz +0/-1 dB (at 1 W) - Black

Designed for musicians, DJs, entertainers, houses of worship, discos, and other venues, the Crown XLi 800 Stereo Power Amplifier feature both RCA and XLR inputs as well as speakON and binding post outputs.
The amplifier includes a user-selectable input sensitivity of 0.755V or 1.4V, stereo/parallel-bridge-mono modes, power/fault/signal presence/clip LED indicators, forced-air cooling, and protection against shorts, no-load, on/off thumps, and interference from radio frequencies in the environment.

Drawing from over six decades of experience in building amplifiers, the unit is capable of delivering 300W per channel at 4 ohms, 200W per channel at 8 ohms, and 600W at 8 ohms in bridged-mono mode..

Stereo/parallel/bridge-mono mode
User-selectable input sensitivity: 0.775V and 1.4V
Efficient forced-air cooling prevents excessive thermal buildup
Electronically balanced XLR inputs and RCA inputs; binding post and speakON outputs
Two level controls, power switch, power LED, and six LEDs, which indicate signal presence, clip, and fault for each channel
Protection against shorts, no-load, on/off thumps and radio-frequency interference

Sound Diffusion

-2.5%

JBL

CONTROL 23-1

-2.5%

€582,78 € 568,21 VAT included

Available in 19 days

Download

Manuale

Download (4.05MB)

Amplifier
Number of Channels: 2
Power Rating:
° 4 Ohms:
2 x 300 W RMS per Channel (1 kHz, 0.5% THD)
° 8 Ohms:
2 x 200 W RMS per Channel (1 kHz, 0.5% THD)
° 8 Ohms:
1 x 600 W RMS Bridged (1 kHz, 0.5% THD)
Amplifier Class: Class-AB
Load Impedance / Voltage: 4 / 8 Ohms per Channel

Performance
Protections:
° Circuit Breaker, On/Off Muting, RF, Reactive/Mismatched Load, Short Circuit, Thermal
Frequency Response: 20 Hz to 20 kHz +0/-1 dB (at 1 W)
Damping Factor: > 200 at 8 Ohms
Input Sensitivity: 0.78 or 1.4 V (at 8 Ohms)
Input Impedance:
° 10 Kilohms (Unbalanced)
° 20 Kilohms (Balanced)
Max Gain: 29 dB
SNR: > 100 dB
THD: < 0.5% (Full Range, Below Rated Power)
Intermodulation Distortion: < 0.35%
Crosstalk:
° -75 dB (Below Rated Power, 1 kHz)
° -59 dB (Below Rated Power, 20 kHz)
Slew Rate: > 10 V/µs
Crossover: Yes

Connectivity
Analog Audio I/O:
° 2 x Binding Post Pair 1-Pin Speaker Output
° 2 x speakON NL4 Speaker Output
° 2 x XLR 3-Pin Female Balanced Line Input
° 2 x RCA TS Unbalanced Line Input
Digital I/O: None
USB: None

Power
AC Input Power:
° 120 VAC, 60 Hz
° 220 VAC, 50 / 60 Hz
° 230 to 240 VAC, 50 / 60 Hz
AC Power Connector: IEC 15 A

Physical
Display & Indicators:
° 1 x Blue LED (Power)
° 1 x Green LED (Signal, per Channel)
° Yellow LED (Clip, per Channel)
° Red LED (Fault, per Channel)
Rackmount Size: 2 RU
Cooling:
° Heatsink
° Fan (Variable Speed)
Dimensions: 19.0 x 3.5 x 12.4" / 48.3 x 8.9 x 31.5 cm
Weight: 25.1 lb / 11.4 kg

Packaging Info
Package Weight: 28.4 lb/13 kg
Box Dimensions: 22 x 21 x 5.5"/56 x 53 x 14 cm
