HM400

Name: HM400
Brand: Mackie
SKU: HM400
Price: 400.23 EUR
Availability: OutOfStock

Mackie

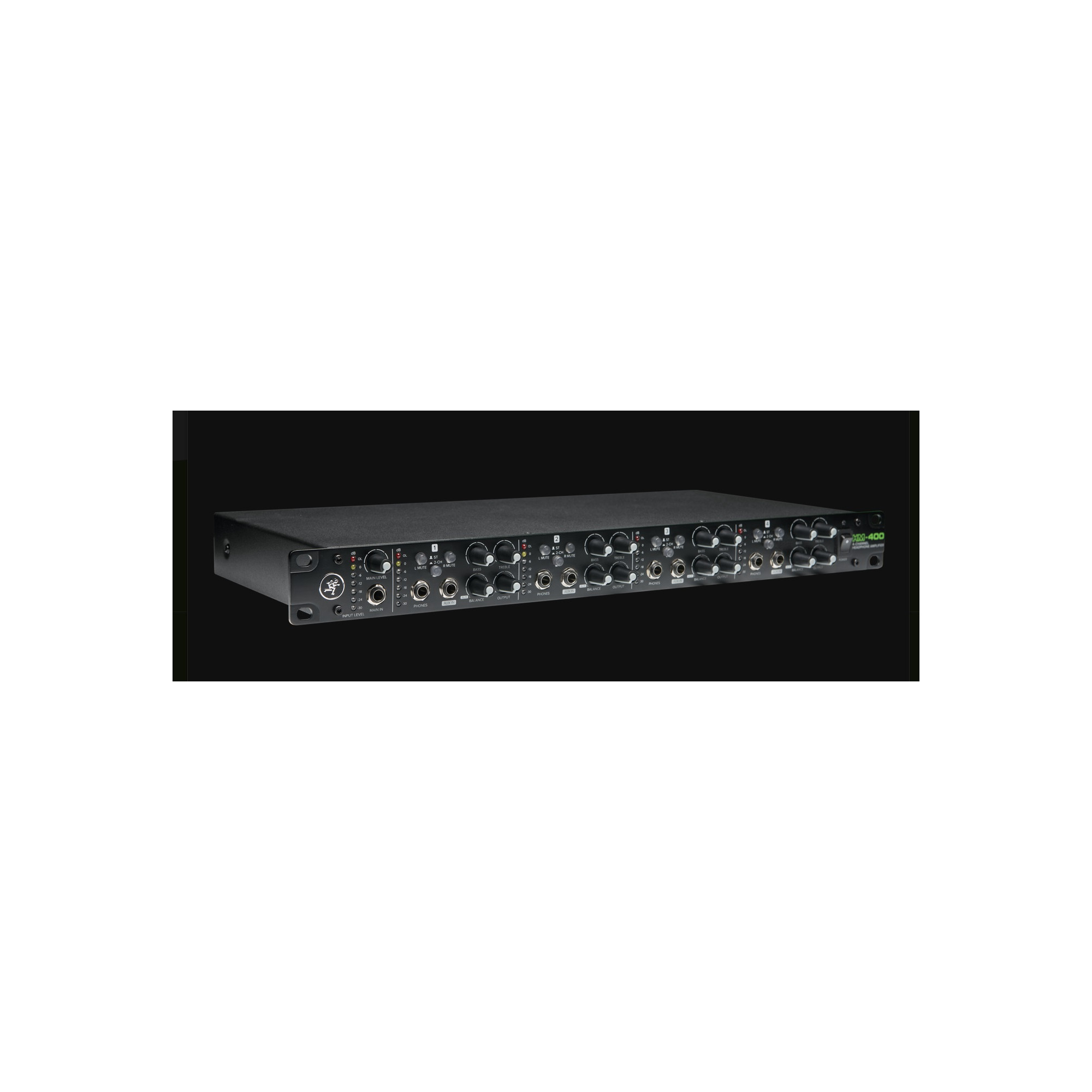

4 Channel Headphone Amplifier - Stereo L / R inputs and outputs

go to the technical sheet

€ 400,23

€ 372,31 VAT excl.

Available in 14 days

Manuale: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Whether you need to expand your home studio headphone monitoring capability or add robust cue mix distribution, the affordable HM Series offers the sound quality, reliability and flexibility you need to expand your setup. The two 19 "rack-mountable models, HM-400 and HM-800, offer flexible and robust headphone distribution for studios, practice spaces and more.

Features

Main stereo L / R inputs plus stereo L / R outputs
7-segment LED meter per channel plus main
3 headphone outputs per channel
Aux input on each channel with balance control for mixing main and aux signal
Mute and Stereo / 2-Ch mode switches
12 total headphone outputs
Built like a tank
Dimensions: (H) 46 x (W) 483 x (D) 224 mm
Weight: 3.6 kg

Audio

Cordial

XLR 3P MF 6m

€ 13,09 VAT included

Available 8 unit in 4 Days

Cordial

XLR 3P MF 5m MULTICORE 8ch

€ 47,60 VAT included

Available in 14 days

Fender

XLR 3P MF 3m

€ 25,67 VAT included

Available 1 unit in 4 Days

Cordial

XLR 3P MF 3m MULTICORE 8ch

€ 38,84 VAT included

Available 2 unit in 4 Days

Cordial

XLR 3P MF 1m

€ 21,89 VAT included

Available in 14 days

Download

Manuale

Download (1.68MB)

Form Factor: Rackmount
Number of Headphone Channels : 4-Channel
Headphone Output Power: 550 mW per Side into 47 Ohms (Max)
EQ : 2-Band EQ per Channel
Display : 5 x Multi-Segment LED Meter

Connectivity
Analog Audio:
I/O 2 x XLR 3-Pin Balanced Input (1 Stereo Pair)
2 x 1/4" TRS Balanced/Unbalanced Input (1 Stereo Pair)
1 x 1/4" TRS Unbalanced Stereo Input
4 x 1/4" TRS Unbalanced Stereo Aux Input
2 x XLR 3-Pin Balanced Output (1 Stereo Pair)
2 x 1/4" TRS Balanced Output (1 Stereo Pair)
12 x 1/4" TRS Unbalanced Headphone Output

Performance
Frequency Response : 20 Hz to 20 kHz ±1 dB
Gain/Trim Range:
Inputs: -66 to +18 dBu
Max Input Level: Line Inputs +15 dBu / Aux Inputs +20 dBu
Max Output Level : Headphone Outputs +21 dBu
Impedance : Headphone Outputs 3 Ohms (Unbalanced) / Inputs 20 Kilohms (Balanced) 10 Kilohms (Unbalanced) / Aux Inputs 10 Kilohms (Unbalanced)
THD: < 0.01% (at +4 dBu, 1 kHz, Unity Gain)
Noise: -66 dB
CMRR: Line Inputs > 42 dB (1 kHz)

Power
Power Requirements : AC Input
AC Input Power: 100 to 120 VAC, 50 / 60 Hz and 220 to 240 VAC, 50 / 60 Hz
Power Consumption : 24 W

Physical
Rackmount Size: 1 RU
Dimensions : 19 x 8.8 x 1.8" / 483 x 224 x 46 mm
Weight: 8.0 lb / 3.6 kg
