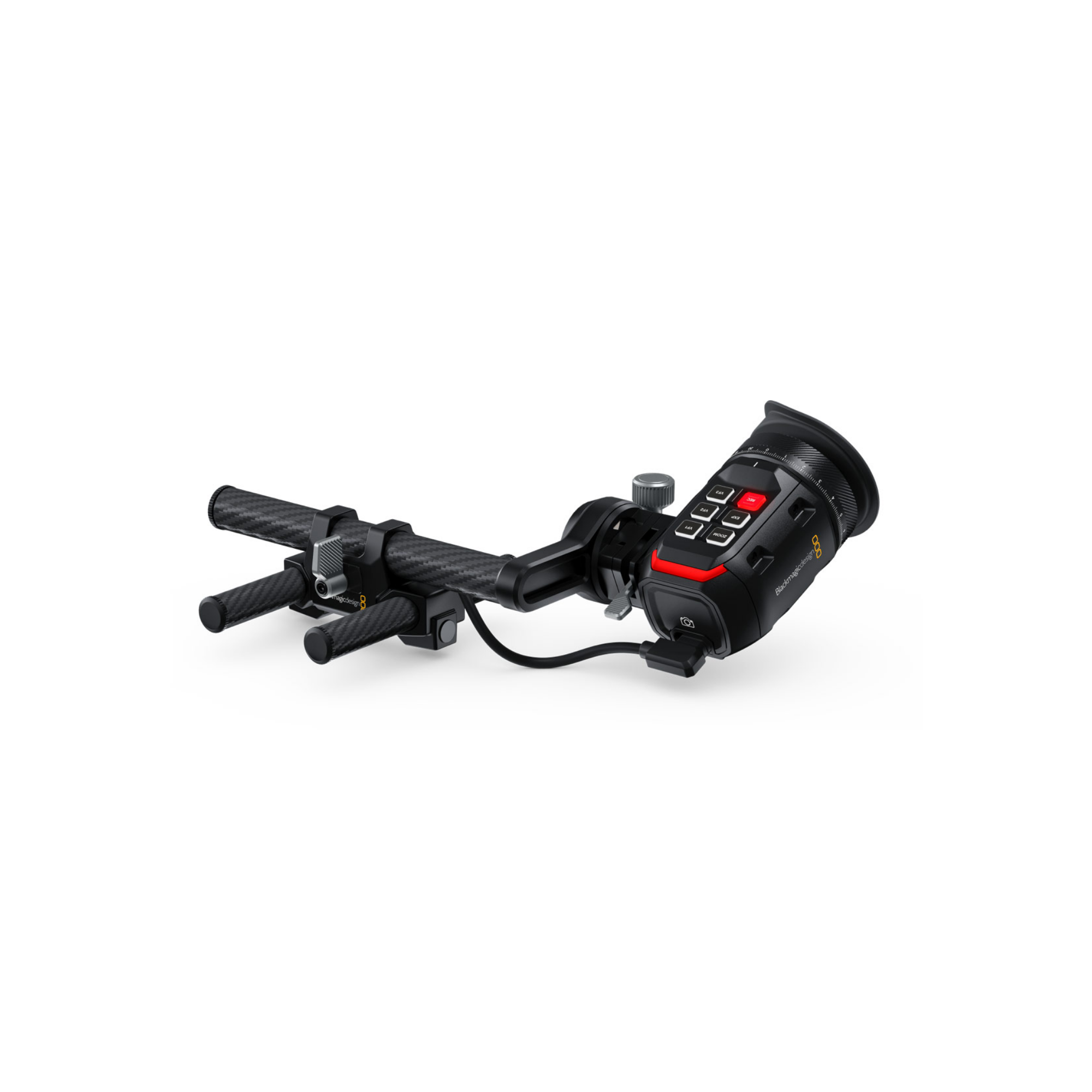

URSA Cine EVF

Connections
Video Inputs: USB-C
Power Input: USB-C
Data Input/Output: USB-C
Computer Interface: USB-C for software updates

Features
Display Resolution: Full 1920 x 1080
Frame Rates: Up to 60fps
Display Type: OLED
Display Pixels: 6.22 Million Pixels
Color Precision: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084.
Focus: 4 Element diopter.
Diopter Range: -5 to +5
Controls: Record button, Exposure Button, Zoom Button, 3 x assignable VF buttons.
Overlays: Built in overlay display processor and top mounted buttons.
Eyepiece: Can be tilted vertically and extended for left or right eye use.
Tally: LED tally light
Mounting Options: Fully adjustable EVF mounting kit included. Blackmagic URSA Cine Handle is required for mounting to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras.
Blackmagic URSA Cine EVF Extension compatible with standard extended viewfinder supports.
Metadata Support: Displays and sends camera data and settings over USB to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras.

Operating Systems
Mac 13.0 Ventura
Mac 14.0 Sonoma or later
Windows 10 and 11

Power Requirements
Powered over USB-C

Environmental Specifications
Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
Relative Humidity: 0% to 90% non-condensing

1x Blackmagic URSA Cine EVF
1x Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod
1x Blackmagic URSA Cine EVF Bracket rod mount
1x Blackmagic URSA Cine EVF Extension
2x short carbon fibre 15mm rods
1x short right angle to right angle USB Viewfinder cable
1x short right angle to straight USB Viewfinder cable
1x long right angle to straight USB Viewfinder cable
1x Rubber eyecup
1x Fabric eye chamois
1x Blackmagic Sticker
1x Welcome wallet with QR code for software download
