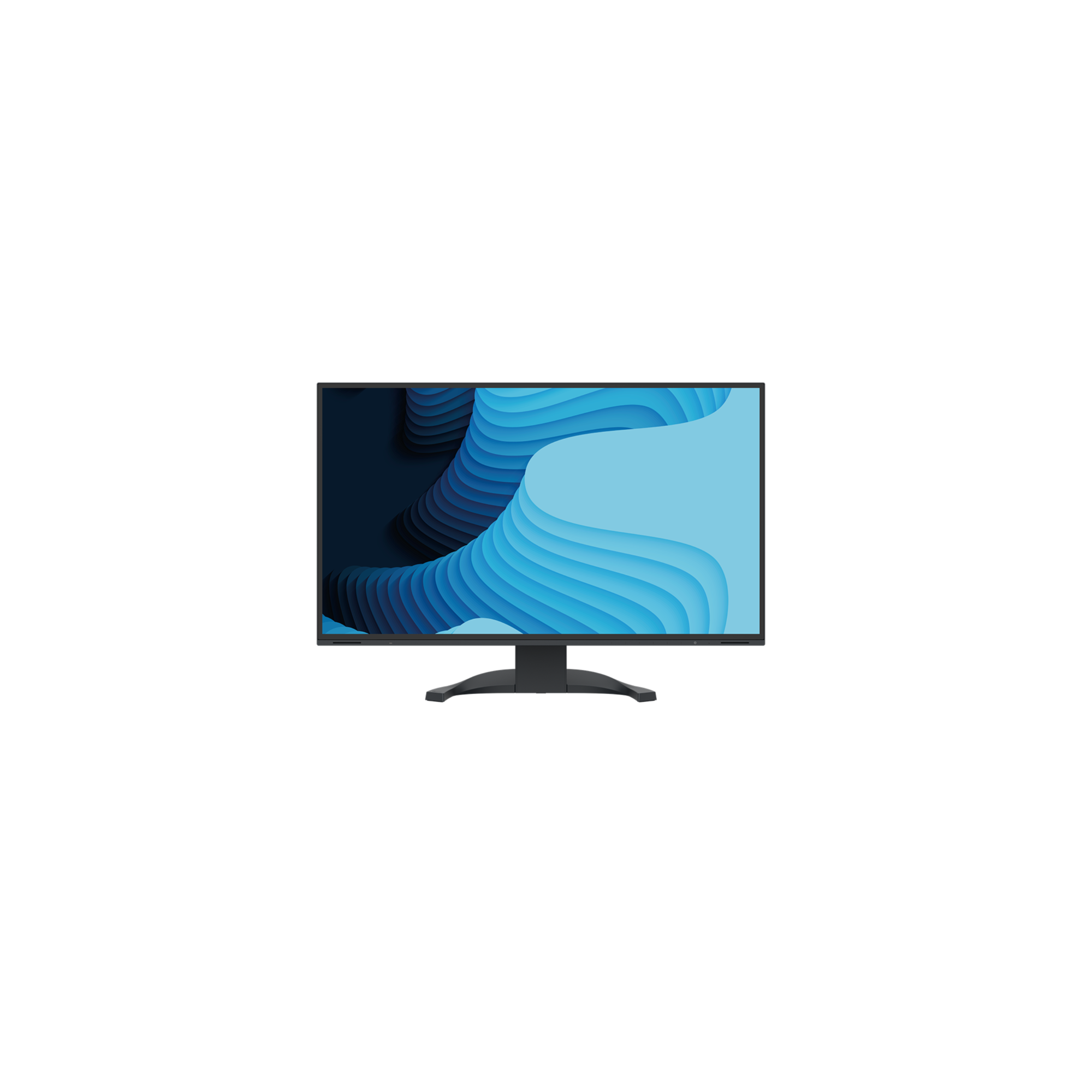

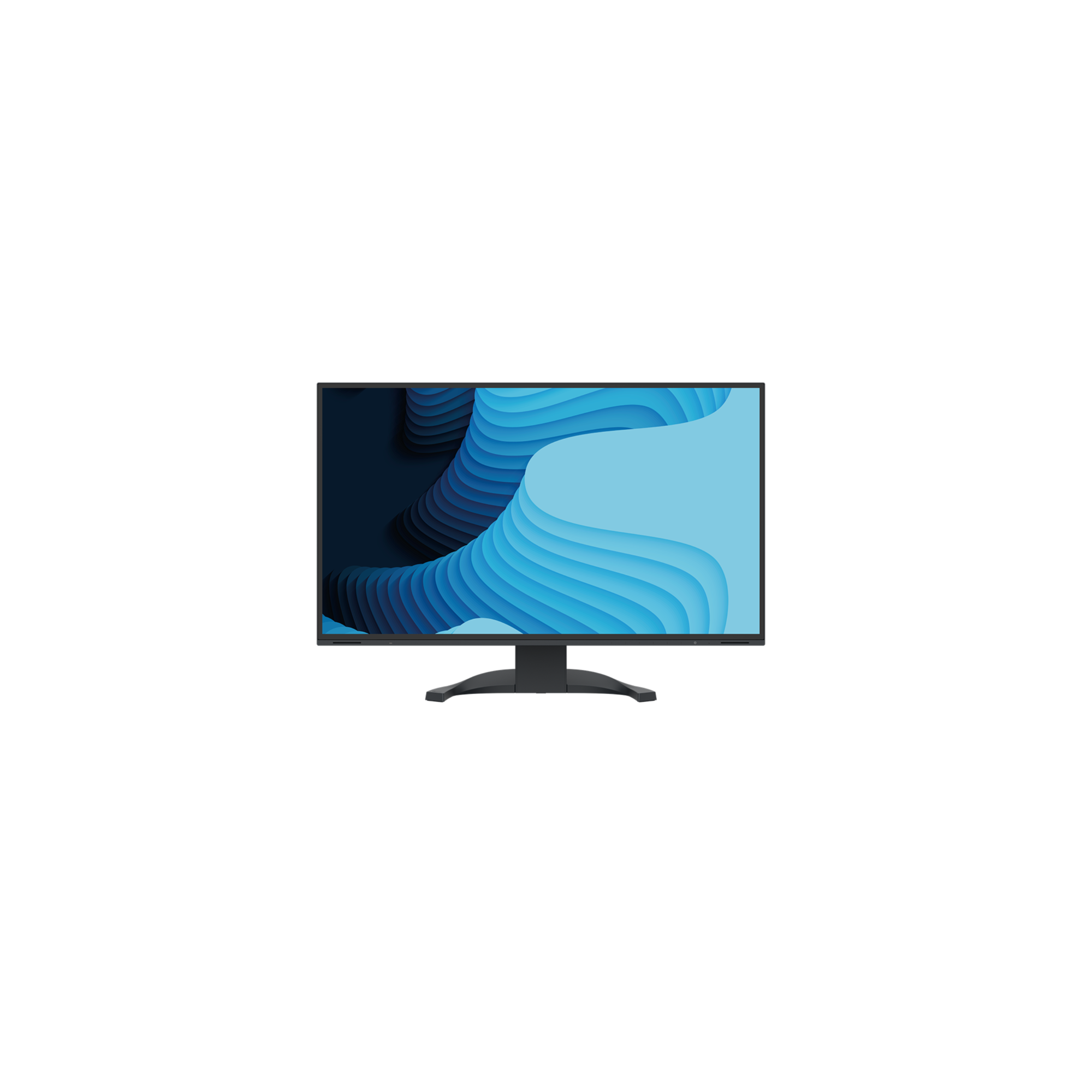

EV2740X-BK
Eizo
₦ 1,981,199.00 VAT excl.
Thanks to the high 4K resolution (3840 x 2160 pixels), the EV2740X model offers four times the resolution of a normal Full HD screen (1080 pixels) and guarantees extremely sharp and detailed images.
The 4K resolution offers those who use complex spreadsheets or multi-screen modes on a daily basis, more space by allowing them to see multiple large windows on a single screen.
° 4K resolution for extremely realistic images and content
CAD, office and multimedia applications - FlexScan EV2740X with high definition at 4K-Ultra-HD supports your work with incredibly realistic visual quality.
Texts and graphics on the 27-inch screen will be rendered at a native resolution of 3840 x 2160 (4K UHD) pixels and at a pixel density of 163 ppi in an absolutely accurate and crystal clear manner.
° High technology of the IPS panel
The monitor boasts a triple winning combination: high resolution of 3840 x 2160 (4K UHD) pixels, maximum contrast ratio of 2000:1 and stable brightness up to maximum values of 350 cd/m².
That is to say: the outlines are distinct, the graphics are brilliant, the images are detailed and sharp.
Thanks to the IPS technology panel with LED backlighting, chromaticity and brightness remain stable from every perspective.
° Color management
An image is only perfect if the colors are also perfect. EIZO monitors have a color table (LUT) of at least 10 bits.
In this way, color information can be assigned more precisely and accurately than on a monitor with an 8-bit color table.
The transitions will be very fine and the range of colors available will be much wider.
In addition, it is also possible to make an individual setting, for example, of the white point from 4000 to 10 000 Kelvin (K) in steps of 500 K, without any loss of quality.
° Overdrive rapid image transition
The overdrive function accelerates response times so that gray-to-gray transitions occur in an average of 5 ms.
Watching movies will be smoother and without trail effects or delays.
° USB-C port
The USB-C port is extremely versatile and offers many benefits: from connecting to external monitors, to charging the battery and transferring data and videos.
Through a single cable, the EV2740X model can be connected to your laptop and also allows you to drive peripherals.
USB-C technology also allows you to quickly power and charge laptops, tablets and phones at up to 94W.
° LAN input
If your computer or laptop does not have an Ethernet port, but you need to connect it to the network, simply connect the EV2740X monitor to the computer using the USB cable to access the network signal.
A truly simple solution that does not require the use of an adapter to connect to the internet and allows you to exploit the maximum network speed via cable, for example, to conduct video conferences.
As a network device, the monitor has its own MAC address.
Alternatively, the "EIZO MAC Address Clone Utility" software for Windows can temporarily assign the connected PC's MAC address to the monitor.
This allows authenticated PCs to access the network through the monitor.
° KVM switches
The EV2740X monitor offers a KVM (Keyboard Video Mouse) switch via the upstream USB ports that connects the mouse and keyboard to the currently active computer.
In this way, desktop and laptop PCs or computers in the office and at home can be operated with the same combination of monitor, mouse and keyboard.
This saves hardware, reduces the number of cables and makes your workflow smoother.
Screen
Diagonal [inches]: 27
Diagonal [in cm]: 68.5
Format: 16:9
Active display area (WxH) [in mm] : 597 x 336
Recommended resolution: 3840 x 2160 (4K UHD)
Dot pitch [in mm]: 0.155 x 0.155
Pixel density [in ppi]: 163
Available resolutions: 3840 x 2160 (4K UHD), 2560 x 1440, 1920 x 1200, 1920 x 1080 (Full HD), 1680 x 1050, 1600 x 1200, 1280 x 1024, 1024 x 768, 800 x 600, 7 20 x 400 , 640 x 480
Panel Technology: IPS
Max. horizontal viewing angle : 178
Max. vertical viewing angle: 178
Representable colors: 16.7 million colors (DisplayPort, 8 bit), 16.7 million colors (HDMI, 8 bit), 16.7 million colors (USB-C, 8 bit)
Representable colors/LUT: More than 1.06 billion shades (14 bit)
Maximum color space (typical): sRGB (100%)
Maximum brightness (typical) [cd/m²] : 350
Maximum contrast: 2000:1
Gray-to-gray change response time (typical) [in ms] : 5
Max. refresh rate [in Hz] : 60
Backlight: LED
Connections
Signal inputs: 2x HDMI (HDCP 1.4/2.3), DisplayPort (HDCP 1.3/2.3), USB-C (DisplayPort Alt Mode, HDCP 1.3/2.3)
USB Specifications: USB 5Gbps (USB 3)
USB upstream ports: 1 x Type C (DisplayPort Alt Mode, power 94W max.), 1 x Type B
Downstream USB ports: 1 x Type C (15 Watt charging function), 3 x Type A
Network socket: RJ-45
LAN Standard : IEEE802.3ab (1000BASE-T)
Graphics signals: USB-C, DisplayPort, HDMI (RGB, YUV)
Audio input: USB-C, DisplayPort, HDMI
Audio output, headphone socket: 2 x 3.5 mm stereo chinch (Headphone, Line Out)
Electrical data
Scanning Rate: USB-C: 31-134kHz / 29-61Hz, DisplayPort: 31-134kHz /29-61Hz, HDMI: 31-135kHz / 29-61Hz
Power consumption (typical) [in watts] : 16
Power consumption (maximum) [in watts] : 186 (consumption at maximum brightness and using all inputs)
Power consumption in stand-by mode [in watts]: 0.35
Power consumption with power switch off [in watts] : 0
Energy efficiency class: D
Energy consumption/1000h [in kWh] : 18
Power supply: AC 100-240V, 50/60Hz
Power via USB-C: 94
Dimensions and weight
Dimensions (including stand) (width x height x depth) [in mm] : 612 x 371-565 x 242-250
Weight (incl. stand) [in kg] : 8.2
Dimensions (without stand) (width x height x depth) [in mm] : 612 x 359 x 61
Weight (without stand) [in kg] : 5.5
Support rotation: 90
Inclinability: 5 / 35
Pivot function: 90° (clockwise)
Height adjustment [in mm]: 195
Mounting holes: 100 x 100
Certification and Standards
Certifications:
CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified Generation 9, EPEAT 2018 (US), TÜV/Blue Low Light Content,
TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC
EPEAT: EPEAT 2018 Gold (US), EPEAT Climate +
USB signal cable (USB-C - USB-C)
Manual via download
Power cord
Quick reference instructions
