ULTRA 5

Name: ULTRA 5
Brand: SmallHD
SKU: ULTRA 5
Price: 4712852.68 NGN
Availability: OutOfStock

SmallHD

EAN: 811786033461

Display Touchscreen 5" 1920 x 1080 HDMI & 3G-SDI IN & OUT

go to the technical sheet

₦ 4,712,852.68

₦ 4,384,049.00 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 471,285.27

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

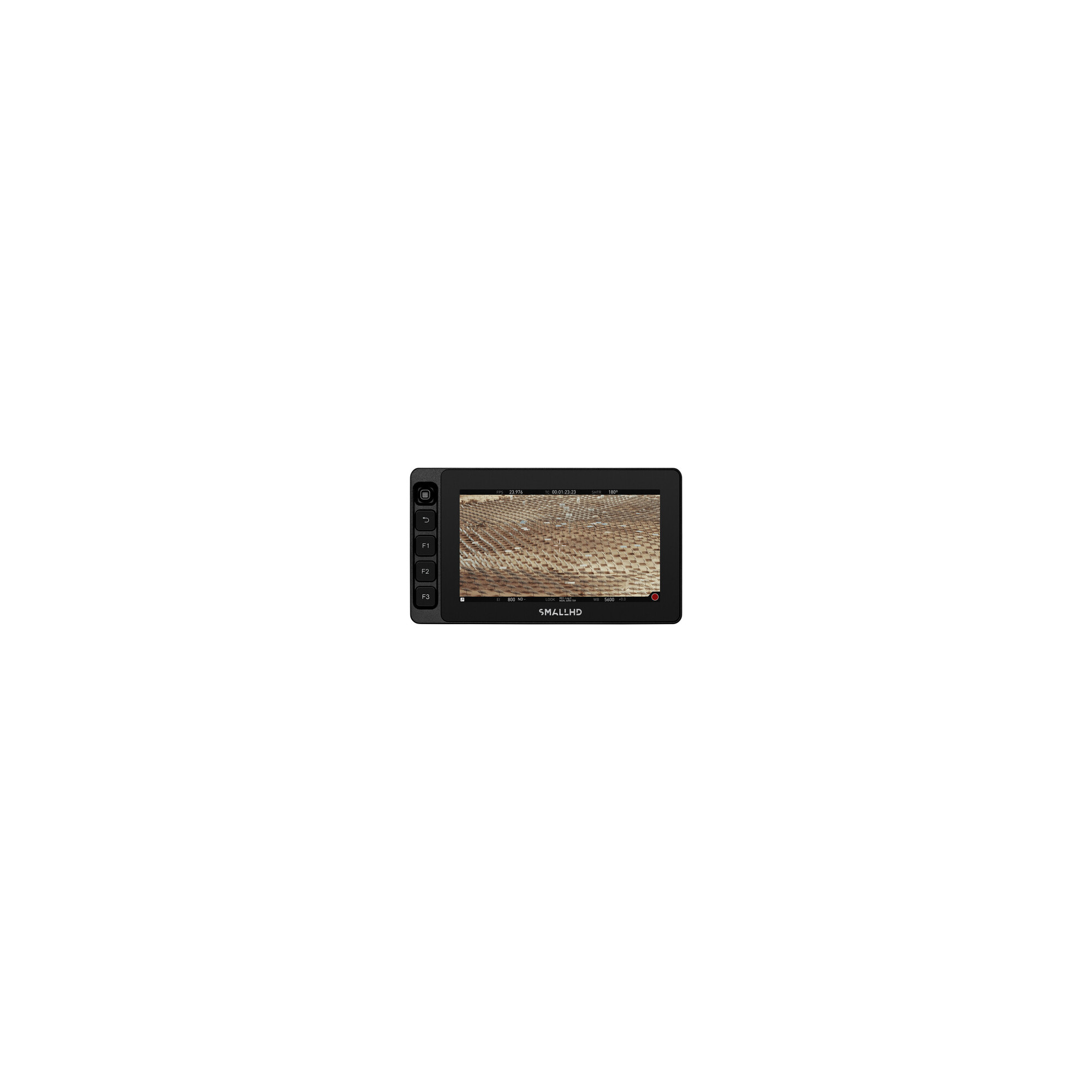

SmallHD Display Touchscreen 5" 1920 x 1080 HDMI & 3G-SDI IN & OUT

Add an ultra-bright monitor to your production facility with the SmallHD ULTRA 5 Bright touchscreen monitor, which features a bright 3000 cd/m² display for viewing in virtually any indoor or outdoor environment.
he 5" 1920 x 1080 touchscreen LCD provides a crisp image and 4:2:2 Rec. 709 10-bit color processing, ideal for focusing and image analysis on set and in the field.

The ULTRA 5 features HDMI and 3G-SDI inputs and outputs and also has physical buttons for use in conditions that may require gloves.
It can also be used to control your camera and has a 5-pin USB port for optional RED camera control and also has an Ethernet port for optional ARRI and Sony VENICE camera control.
All monitor functionality is available via PageOS 5, which provides advanced functionality with a simple and efficient graphical user interface.

- 5" daylight viewable touchscreen camera monitor with 3000 cd/m² brightness
- Slim and lightweight design with 4:2:2 DCI-P3 color touchscreen LCD panel 10-bit
- HDMI and 3G-SDI inputs and outputs
- Buttons around the monitor allow you to operate the monitor in any condition
- PageOS 5 toolset with EL Zone Exposure Assist, improved waveform, false color, Look-Around Camera Control (sold separately), advanced Teradek RT overlays and more
- Four 1/4"-20 mounting threads on the left, right, bottom and rear of the monitor
- Power using a 2-pin power input
- Optional RED camera control via micro-USB port
- Optional ARRI/Sony VENICE camera control via Ethernet port
- Durable aluminum chassis
- Viewing tools
- Pixel zoom: 2x and 4x with pinch-zoom
- Aspect ratio:
- Preset and customizable DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Anamorphic De-squeeze only
- Underscan: 1.33x, 1.5x, 1.66x, 2.0x
- Image Flip: Auto and Manual
- Image Rotation: Auto and Manual
- Cross Conversion: HDMI to SDI, SDI to HDMI
- Color Focus Assist: Style and Strength
- Adjustable Peaking: Strength Adjustable
- False Color: Spectrum, ARRI Style and Custom
- Zebra: Dual, Custom
- Waveform: Luma and RGB, Customizable with Region of Interest Highlighting RGB Vectorscope Parade, Custom Histogram: Luma and RGB

Image Capture, with Dedicated Button and Image Gallery
Custom LUTs: Load as Appears on Pages or as System Level Calibration via Settings Menu
LUT Import: Via SD Card or USB Storage Device
Image Overlay: Opacity Slider and Blink Setting
Image Capture
Audio Meters: Up to Eight Channels

Monitors

SmallHD

18-2015

₦ 1,061,023.93 VAT included

Available in 19 days

Screen
Panel type: LCD
Display Size: 5.0 "/ 12.7cm
Resolution: 1920 x 1080
Aspect Ratio: 16: 9
Touch screen: yes
Maximum brightness: 3000 cd / sqm
Bit depth / Color support: 10 bit (1.07 billion colors)
Pixels per inch (ppi) 443 ppi
Color gamut 100% DCI-P3
Image Controls Blue Only, False Colors, Focus Peaking, Flip Image, Pixel-to-Pixel Zoom, RGB Parade, Screen Indicators, Waveform

Video I / O
1 x BNC output (3G-SDI)
1 x HDMI output
1 x BNC input (3G-SDI)
1 x HDMI input
Built-in audio: HDMI - SDI

Audio I / O
1 x 1/8 "/ 3.5mm headphone output
Integrated speaker: None

Other I / O
1 x LEMO 5 pin output
1 x RJ45 output

Media / memory card slot: None
Wifi: None
Format support
Video format
SDI (10 bit 4: 2: 2)
1080p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
1080PsF: 30 / 29.97 / 25/24 / 23.98
1080i: 60 / 59.94 / 50
720p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
480i
576i
HDMI (8/10/12 bit)
UHD 4K: 30
1080p: 60 / 59.94 / 50/30/25/24 / 23.98
1080PsF: 30/25/24 / 23.98
1080i: 60 / 59.94 / 50
720p: 120 / 119.88 / 100/60 / 59.94 / 50/30/25/24 / 23.98
576p: 100/50
480p: 120 / 119.88 / 60 / 59.94
480i39.7 / 2 /120/119.88/60/59.94
576i: 200/100/50

Power
Battery type: None
Assembly
Fitment: 3 x 1/4 "-20 female
General
Construction material: Aluminum
