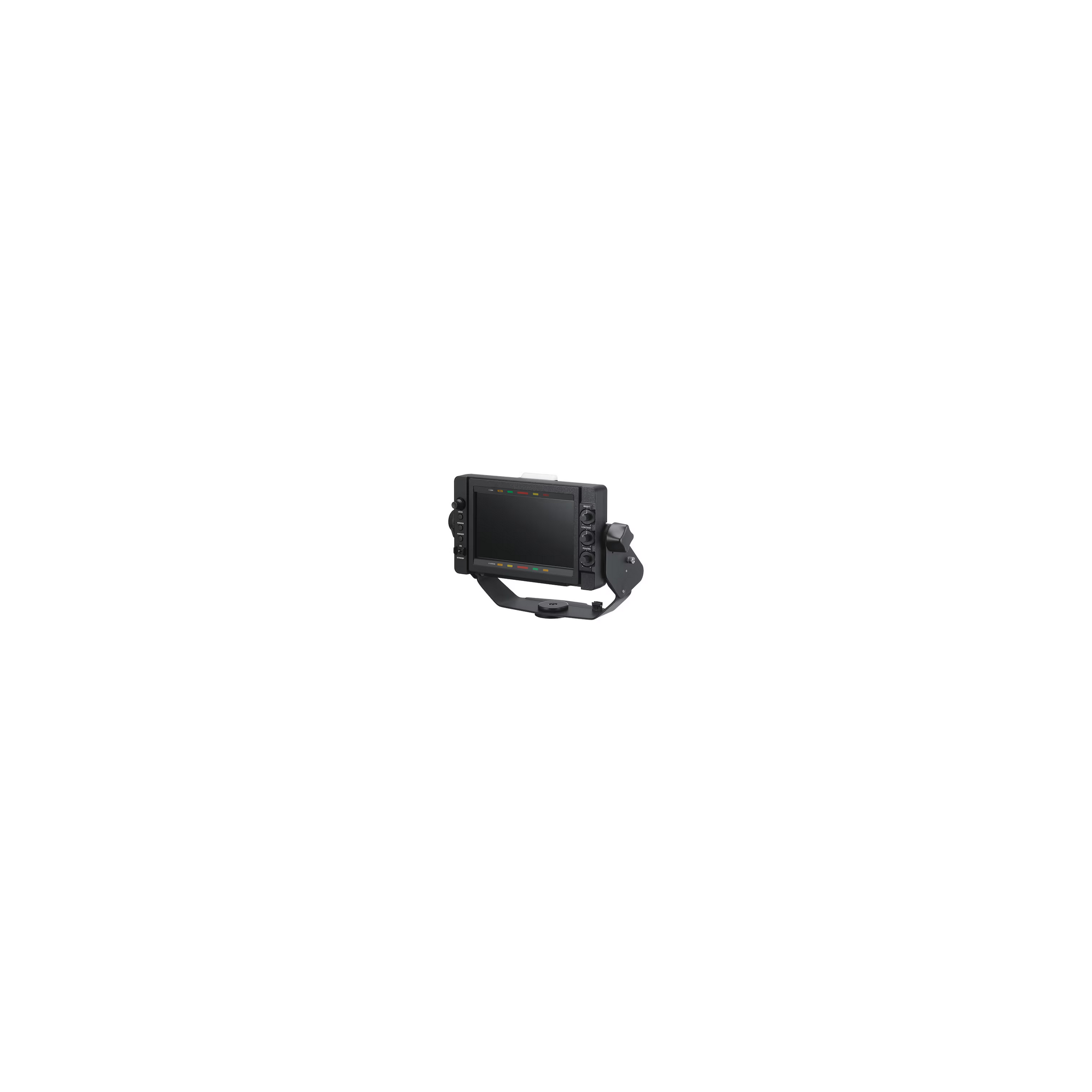

HDVF-EL740

7.4'' Colour Full HD OLED Viewfinder For Sony HDC & XDCAM Camcorders

7.4" 1920 x 1080 OLED Display
20-Pin Digital & SDI (BNC) Video Inputs
Displays Both Camera & Viewfinder Menus
Boosted Brightness Mode for Exteriors
3200-9500K Adjustable Color Temperature
DC Power Input for Standalone Use
Tally Input, Camera Number Plate
Slimmer Panel, Assignable Buttons
Includes Interior Hood, Tilting Bracket


The HDVF-EL740 7.4" HD Color OLED Viewfinder provides bright viewing with accurate focusing for the HDC, XDCAM, and additional Sony camera series. Its interface provides both 20-pin digital and SDI (BNC) analog video inputs, offering compatibility with multiple cameras. HDVF-EL740 features include a BBM (Boosted Brightness Mode) for exterior use, a 3200-9500K color temperature range adjustable in 100K steps, access to camera head menus, and both tally and DC power inputs.
1920 x 1080 OLED Panel
The HDVF-EL740 viewfinder features a 7.4" 1920 x 1080 OLED panel that enables accurate focusing for Sony 4K or HD camcorders and XDCAM cameras.
Digital and Analog Video Inputs
The 20-pin Sony connector transmits 1080p signals from HDC-series cameras, while the SDI (BNC) input supports analog signals.
Flexible Menu Options

The HDVF-EL740 enables you to access both the Sony HDC camera and viewfinder menus.
Most functions can be assigned to dedicated switches on the viewfinder panel, enabling the operator to concentrate on a single interface.

Image Functions
A waveform display, flicker suppression, assignable buttons, and an adjustable 3200-9500K color temperature enable users to quickly adjust the image for each setup.
Boosted Brightness Mode
The BBM (boosted brightness mode) function increases the display level from 315 to 700 cd/m² for easier viewing in exterior or brightly lit settings.
