EW-DX SK Q1-9
Sennheiser
₦ 750,649.00 VAT excl.

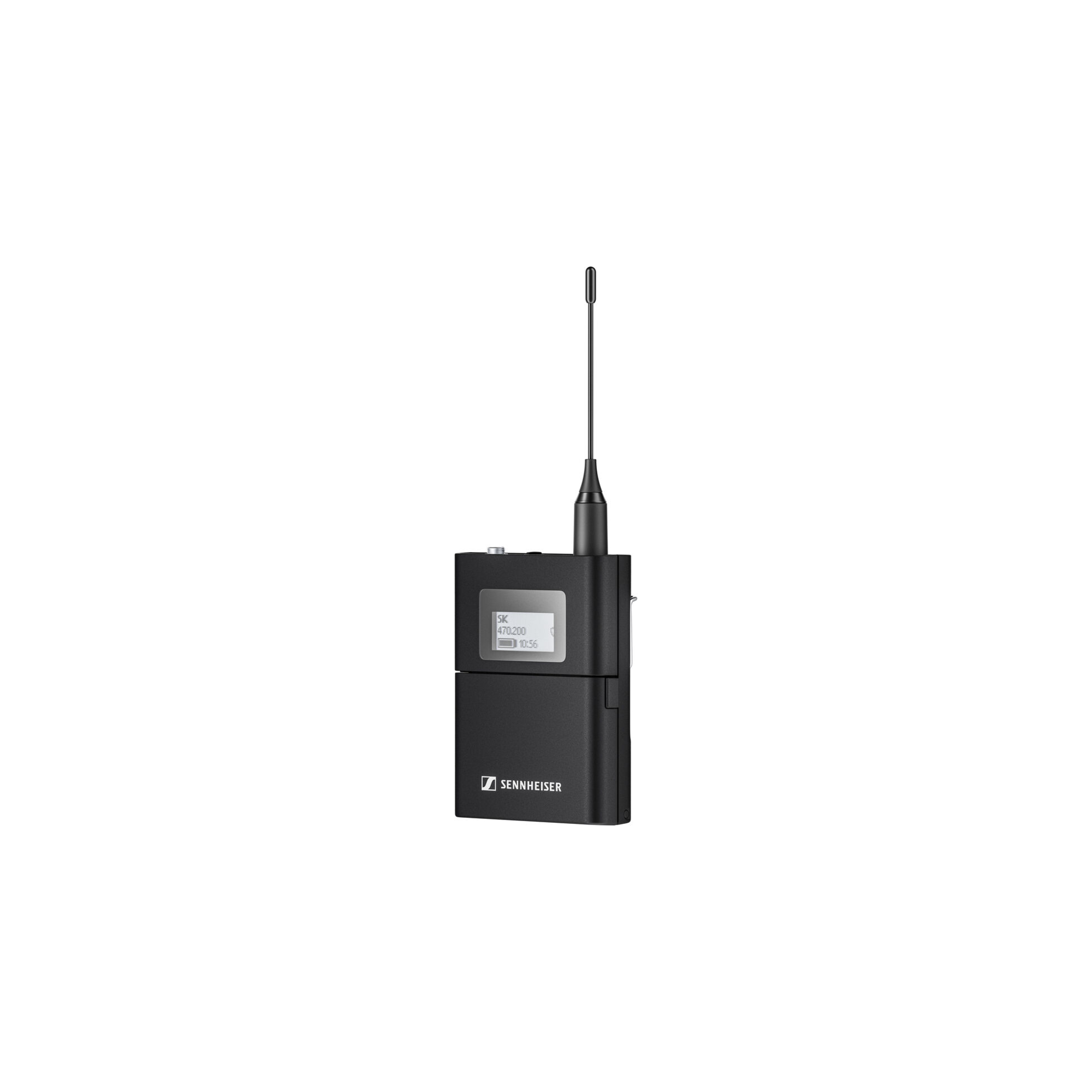

The Sennheiser EW-DX SK is a digital bodypack wireless transmitter compatible with EW-DX wireless receivers. Lightweight and comfortable for performers and presenters to wear, the bodypack features a rugged, all-metal housing well suited for daily use in conference rooms, houses of worship, or on stage.
The EW-DX SK is equipped with a locking 3.5mm TRS connector that accommodates the compatible lavalier or headset microphone of your choice, or an adapter cable for guitar and bass. With a remarkable 134 dB dynamic range on its input, the transmitter can handle a wide variety of sound sources, including loud vocalists and performers, connections to musical instruments, and even line-level signals from mixers, all without requiring any gain adjustment.
- For EW-DX Digital Wireless Receivers
- Use with Lav/Headset Mic or Instrument
- Locking 3.5mm TRS Connector
- 134 dB of Dynamic Range, 24-Bit Audio
- 3200 Frequencies on Equidistant Grid
- e-Ink Display
- Durable Metal Housing
- Set Up/Operate from Receiver or Phone
- In-Device Charging
- 8-Hour AA /12-Hour Rechargeable Battery
Compatible Mics and Instrument Cable with Locking 3.5mm TRS Connector
- The sweat-resistant, subminiature MKE 2 omnidirectional lavalier mic offers a pristine, broadcast-quality sound and is easy to conceal.
- The unobtrusive ME 2 omnidirectional lavalier mic provides a forgiving pickup pattern that captures sound equally well in every direction.
- The ME 4 cardioid lavalier mic offers a narrower, feedback-resistant pickup pattern for louder events.
- The ME 3 cardioid headset mic provides enhanced speech clarity for lectures and presentations.
- The CI 1 instrument cable lets you connect the bodypack transmitter to a guitar, bass, or keyboard.
RF Frequency Band: Q1-9: 470.2 to 550 MHz
RF Bandwidth: 80 MHz
Frequency Step Size: 25 kHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 328.1'' / 100 m (Line of Sight)
Built-In Recorder: No
Mobile App Compatible:
Yes: Android & iOS
*As of September, 2022: Check with manufacturer for the most up-to-date compatibility
Bluetooth: 5.1 LE
Bluetooth Operating Distance: 120'' / 36.6 m (Transmitter Sync, App Control)
Sample Rate/Resolution: 24-Bit
Latency: 1.9 ms
Encryption: AES 256
Transmitter
Transmitter Type: Bodypack
RF Output Power:
- 10 mW (ERP)
- 10 mW (EIRP)
Audio I/O: 1 x 1/8" / 3.5 mm TRS Female Input (Lockable)
Included Cable Connector: No
Muting: Mute Switch
Audio Input Level: 2 to 4.35 V
Auto-Level Control: No
Frequency Response: 20 Hz to 20 kHz -3 dB
Sync Method: Bluetooth
Antenna: 1 x Flexible Whip, Fixed (Beltpack)
Power Requirements: Battery
Battery Type:
- 2 x AA (Included)
- 1 x Sennheiser Battery Pack (Not Included)
Approx. Battery Life:
- 8 Hours (Alkaline)
- 12 Hours (Sennheiser Battery Pack)
Display & Indicators: 1 x Backlit LCD (Battery Status, Mute)
Housing: Metal
Operating Temperature: 14 to 131°F / -10 to 55°C
Operating Humidity: 5 to 95%
Dimensions: 2.5 x 3.3 x 0.8" / 63 x 85 x 20 mm
Weight: 4.2 oz / 120 g (without Batteries)
Sennheiser EW-DX SK Digital Wireless Bodypack Transmitter with Locking 3.5mm Connector (Q1-9: 470 to 550 MHz)
Belt Clip
2x AA Batteries
Pouch
