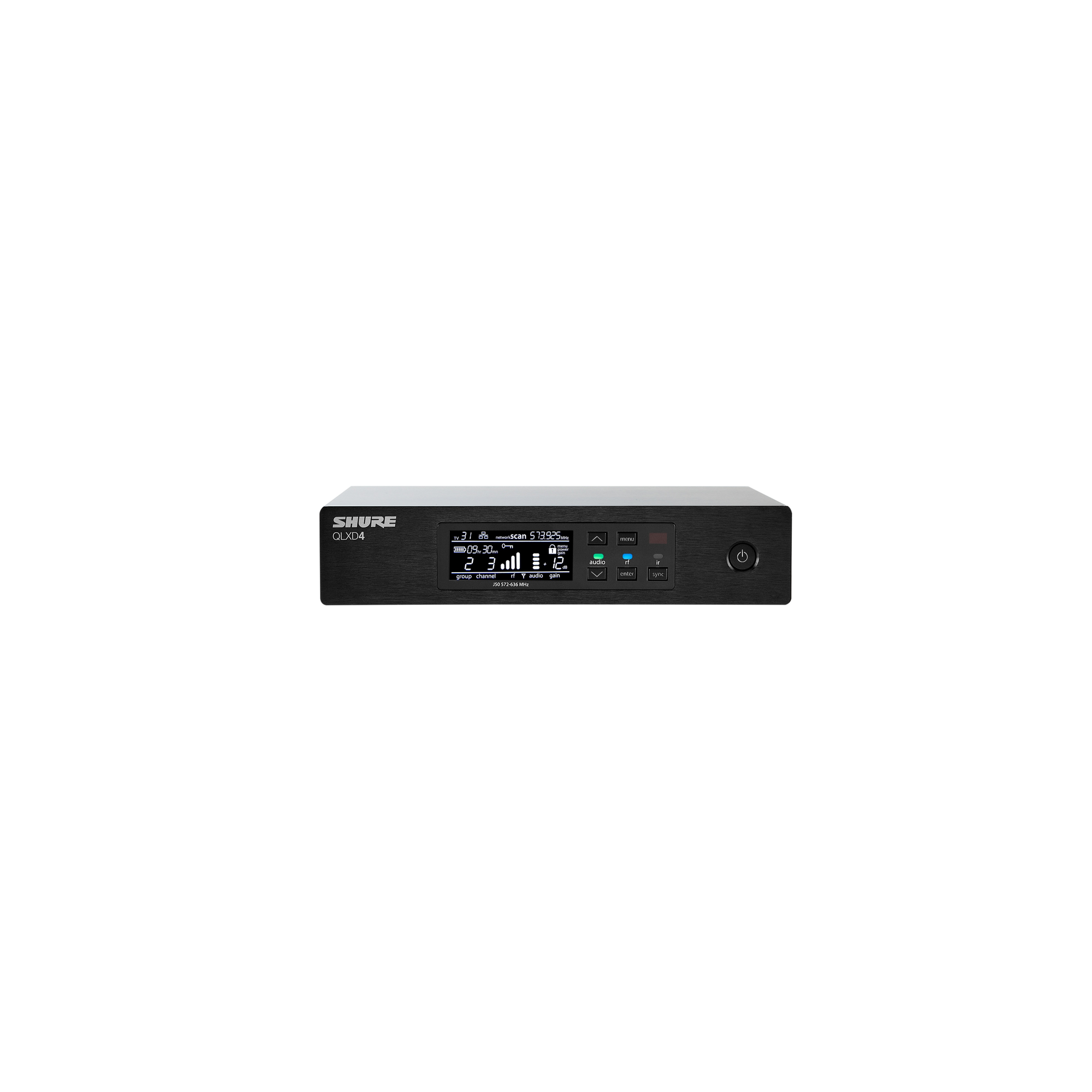

QLXD4E-G51

Digital receiver for QLX-D series in G51 band (470-534Mhz). Up to 60 systems per band, automatic search for available channels and transmitter synchronization via IR. LCD display to view device status and parameters

Digital receiver for QLX-D series in G51 band (470-534Mhz). Up to 60 systems per band, automatic search for available channels and transmitter synchronization via IR. LCD display to view device status and configuration parameters. LED with RF and Audio signal level indications. Removable 1\2" antennas Buttons for setting the system gain (60 dB range from -18 to +42dB in 1dB steps). XLR3 balanced audio output (100 ohms +18dBV, -12dBV in Mic.) adjustable mic/line level ( 30dB pad.) Unbalanced line output 6.3 mm jack (100 ohms bal., 50 ohms unbalance. +12dBV). RJ45 network port for remote monitoring and control of the device. Compatible with SHURE Workbench software 12-13 Vdc, max 170 mA. Power supply: 12 Vdc @ 0.4 A with 230VAC power supply included. Dimensions: 41 x 197 x 151 mm, 1/2 rack unit.
