XSW 1 ME2 A

System
Wireless Technology : Analog UHF
Diversity : Yes
RF Frequency Band : A: 548 to 572 MHz
Number of RF Channel Frequencies : 80
Max Transmitters per Band : 10
Encryption : No
Built-In Recorder : No
Timecode Support : No
Mobile App Compatible : No

Receiver
Receiver Type : 1x Tabletop/Rack-Mountable
Mounting Options : Rackmount (with Non-Included Hardware, 1 U Half-Rack)
Antenna : 1x Internal
Number of Audio Channels : 2
Audio I/O:
- 1x XLR 3-Pin Balanced Mic/Line Output
- 1x 1/4" TS Unbalanced Mic/Line Output
Network I/O : No
Word Clock I/O : No
USB/Lightning Connectivity : No
Gain Range : 45 dB (5 dB Steps)
Frequency Response : 50 Hz to 16 kHz -3 dB
Display : Alphanumeric LED
Power Requirements : AC/DC Power Adapter

Transmitter
Included Transmitters: 1x Bodypack
RF Output Power: 10 mW
Antenna: Fixed Flexible Whip
Input Level: Microphone / Line
Audio I/O: 1x 1/8" / 3.5 mm Locking TRS Female Input
Bias/Plug-In & Phantom Power: Bias/Plug-In Power is Unspecified by Manufacturer | No Phantom Support
USB I/O: No
Muting: Mute Switch
Gain Range: 0 to 30 dB (10 dB Steps)
Auto-Level/Gain: Yes
Frequency Response: 50 Hz to 16 kHz (Mic, Line)
Sync Method: 2.4 GHz QPSK
Display: LCD (Non-Backlit)

Microphone
Microphone Type: 1x Lavalier
Polar Pattern: Omnidirectional
Frequency Response: 50 Hz to 18 kHz
Maximum SPL: 130 dB
Sensitivity: 20 mV/Pa
Output Connector: 1x 1/8" / 3.5 mm Locking TRS Male
Color: Black

Power
Transmitter Battery Type: 2x AA (Included)
Transmitter Battery Life: 10 Hours
AC/DC Power Adapter: 12 VDC at 300 mA (Included)

Physical
Housing: ABS
Dimensions:
- Receiver: 7.9 x 1.7 x 5" / 200 x 42 x 127 mm
- Transmitter: 2.8 x 3.8 x 1.1" / 71 x 96 x 28 mm
Weight:
- Receiver: 12 oz / 340 g
- Transmitter: 3.4 oz / 95 g

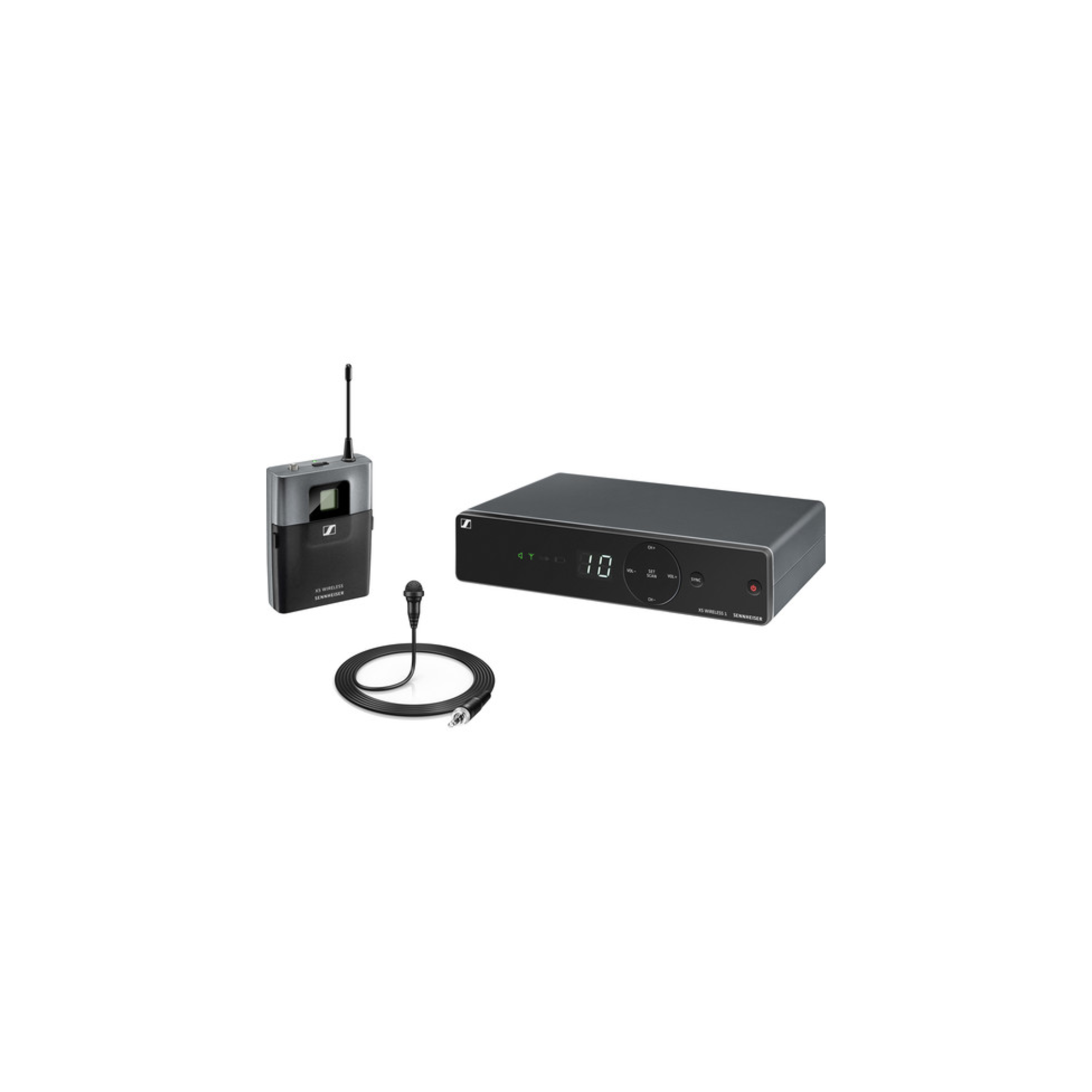

1x XSW 1-ME2 UHF Lavalier Microphone Set (A: 548 to 572 MHz)
1x ME 2-II Lavalier Microphone
1x NT12-5 CW Power Supply
2x AA Batteries
