UTX-P40K33

Name: UTX-P40K33
Brand: Sony
SKU: UTX-P40K33
Price: 682355 NGN
Availability: InStock

Sony

EAN: 4548736106635

Wireless Plug-On Transmitter (566 -590 Mhz)

go to the technical sheet

₦ 682,355.00

₦ 634,749.00 VAT excl.

Available 2 unit in 4 Days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

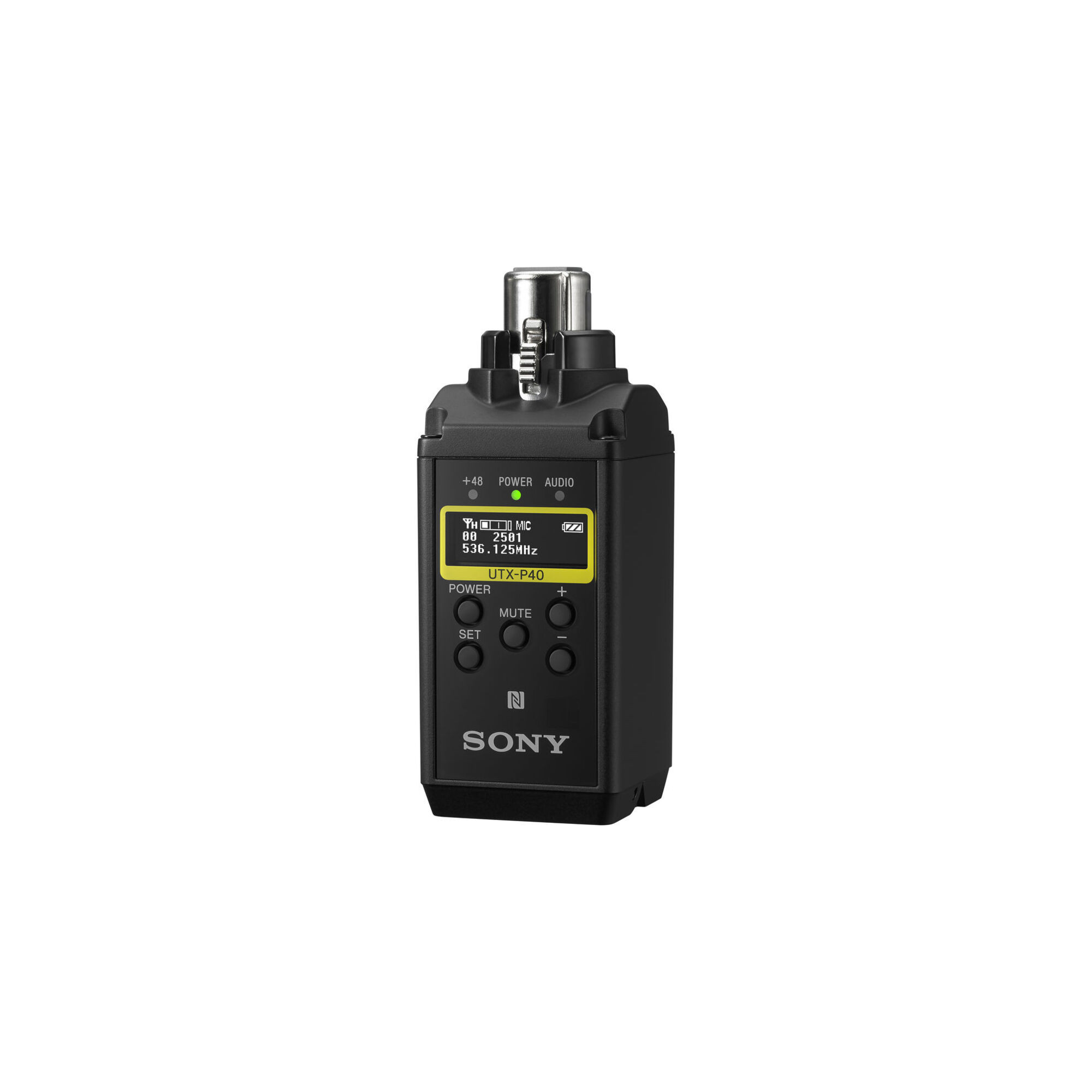

The Sony UTX-P40 is a wireless plug-on transmitter compatible with the URX-P40 camera-mount receiver. Compact and lightweight, with a robust, all-metal construction, this plug-on is well suited for tough operating conditions. It provides up to 6 hours of operation on two AA batteries, with a selectable 5/40mW RF power output and a transmission range up to 330'.

The UTX-P40 can be attached to a handheld microphone of your choice for man-on-the-street interviews, or to a shotgun mic for wireless booming (both types of mics are available separately). The plug-on provides 48V phantom power, giving you the option to use a condenser microphone. The transmitter offers a 72 MHz bandwidth with 2772 selectable UHF frequencies.

The UTX-P40 is backward-compatible with Sony WL-800 and UWP Series systems.0 different capsules from various manufacturers.
The UTX-M40 is backward-compatible with Sony WL-800 and UWP Series systems.

Frequency CE 566 -590 Mhz

Microphones Wireless

Sony

URX-P40K33

₦ 691,869.00 VAT included

Available 1 unit in 4 Days

Ambient

HHA-SSH

₦ 244,561.00 VAT included

Available 1 unit in 4 Days

Shure

RPW 112

₦ 452,198.00 VAT included

Available in 14 days

System
Wireless Transmission : Analog UHF
RF Frequency Band : 566,025 -630 Mhz
RF Bandwidth : 72 MHz
Frequency Step Size: 25 kHz
Max Operating Range: 330'' / 100.6 m (Typical)
Latency : 0.35 ms
Modulation : FM

Transmitter
Form Factor : Plug-On
RF Output Power: 5 / 40 mW
Audio I/O : 1 x XLR 3-Pin Female Input (Lockable)
Phantom Power: +48 V
Muting : Off/On Switch
Audio Input Level : -60 dBV (Mic Level)
Gain Range : 0 to +48 dB (3 dB Steps)
Frequency Response: 23 Hz to 18 kHz
Sync Method : NFC
Antenna : 1 x Internal
Display & Indicators : 1 x OLED (Audio Level, Battery Status, Peak, RF Output Power)
Housing : Metal

Power
Power Requirements: Battery, Bus Power (USB)
Battery: Type 2 x AA (Not Included)
Approx. Battery Life : 6 Hours (Alkaline)
USB/Lightning Connectivity : 1 x USB Type-C (Bus Power, Charging)

Working temperature
Operating Temperature : 32 to 122°F / 0 to 50°C
Storage Temperature: -4 to 131°F / -20 to 55°C

Phisical
Dimensions : 1.5 x 3.9 x 1.5" / 38.0 x 98.0 x 38.0 mm (without Antennas)
Weight: 4.9 oz / 139.0 g (without Batteries)
