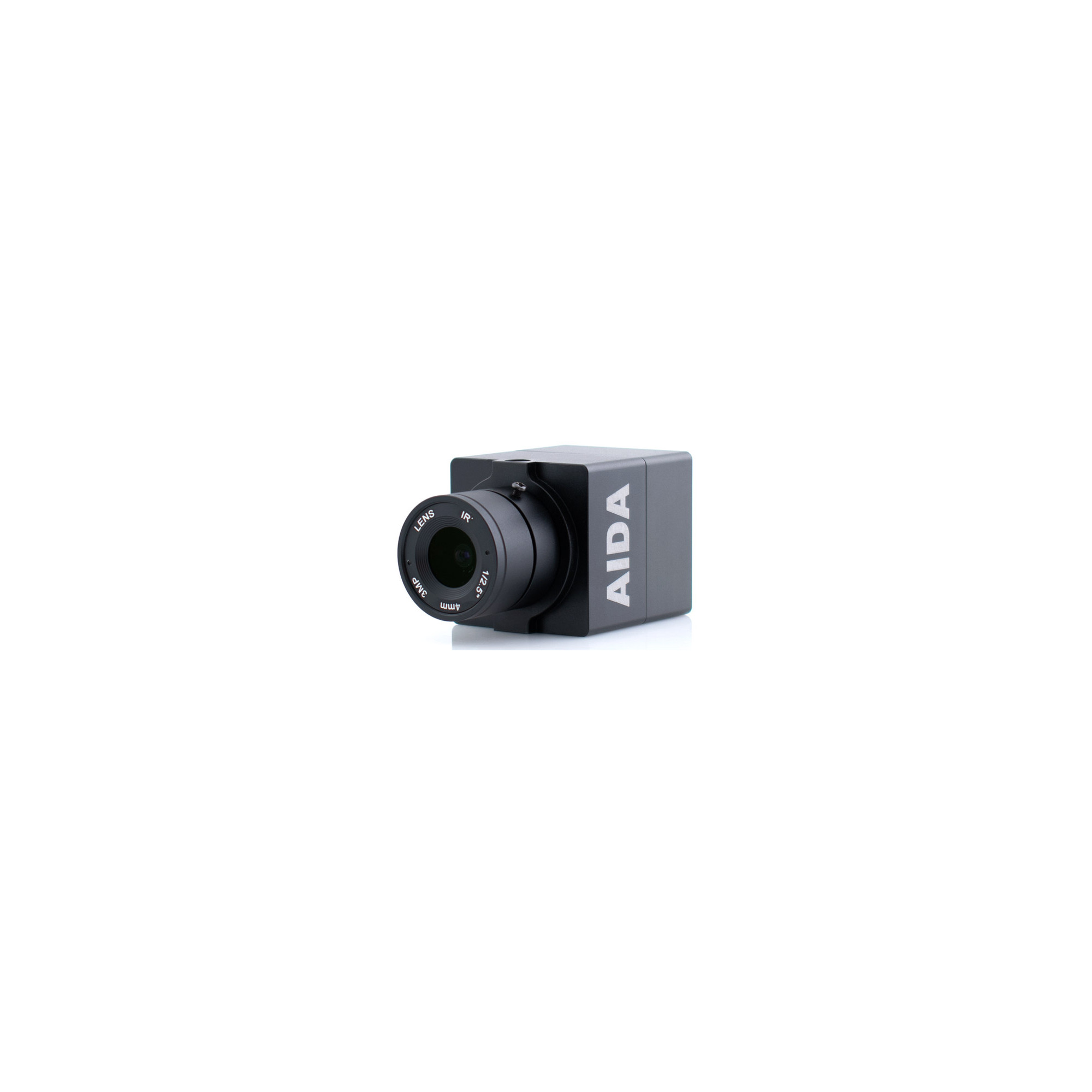

HD-100A
Aida
₦ 573.528,06 VAT excl.
Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
Advanced digital image processor provides vivid and detailed images by utilizing WDR, White Balance, and Noise Reduction.
Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
Black Level Set-up provides the better color transition from digital to analog.
Auto White Balance and shutter speed provides the optimized performance in a variety of situations.
Interchangeable lens design makes it compatible with auto-iris CS and C mount lenses.
Built-in OSD controls for customizable image settings.
Versatile, compact, and rugged design.
With TRS Stereo Audio Input for embedded audio over HDMI.
RCC-6-SDI
RCC-25-SDI
RCC-16-SDI
RCC-10-SDI
RCC-3-SDI
RCC-100-SDI
Belden 1505A HD-SDI 100 - Adcom Cable
Belden 1505 HD-SDI 050 AVV - Adcom Cable
Belden 1505A HD-SDI 075 AVV - Adcom Cable
Belden 1505A HD-SDI 025 AVV - Adcom Cable
Belden 1505A HD-SDI 100 AVV - Adcom Cable
Mars T1000
BR-CZ1 Orange
BR-235105
BR-235155
C-1670-8MP
CCS-USB
SPECIFICATIONS
Video
Image Sensor 1/3 inch Progressive CMOS
Sensor Size Diagonal 7.2mm
Effective Pixels Horizontal: 1920, Vertical: 1080
Pixel Size 2.75 µm x 2.75 µm
Resolution 1080p & 1080i: 1920 x 1080
720p & 720i: 1280 x 720
Resolution/Rate 1080 60p/59.94p/50p/30p/29.97p/25p/24p
1080 60i/59.94i/50i
720 60p/59.94p/50p
Output HDMI 1.3a
Color Space 4:2:2 (YCbCr) 10bit
Min. Illumination 0.2Lux (Day), 0.1Lux (Night), 0.005Lux (Slow Shutter ON)
White Balance Auto & Manual (9,000 K - 11,000 K)
Lens
Lens C/CS Mount (Default 4mm HD Lens)
Audio
Input 3.5mm TRS Stereo Mic-in & Line in over I/O Cable
Sample Rate 16/24/32 Bits
Physical
Camera Control RS-485 VISCA, OSD Button
Operation Temp 32° F - 104° F
Dimension 39mm x 39mm x 50.50mm / 1.53" x 1.53" x 1.99" (With default 4mm Lens)
Weight 180g / 0.39lbs (With default 4mm Lens)
Power 6W at 12VDC (+9 - +15VDC)
