HD-NDI-X20

Name: HD-NDI-X20
Brand: Aida
SKU: HD-NDI-X20
Price: 1543268.93 NGN
Availability: OutOfStock

Aida

EAN: 0783970764881

Full HD NDI HX IP POV Camera with 20x Optical Zoom

go to the technical sheet

₦ 1,543,268.93

₦ 1,435,599.00 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 154,326.89

Available in 14 days

Not sure if this is the right product for you? Talk to a consultant

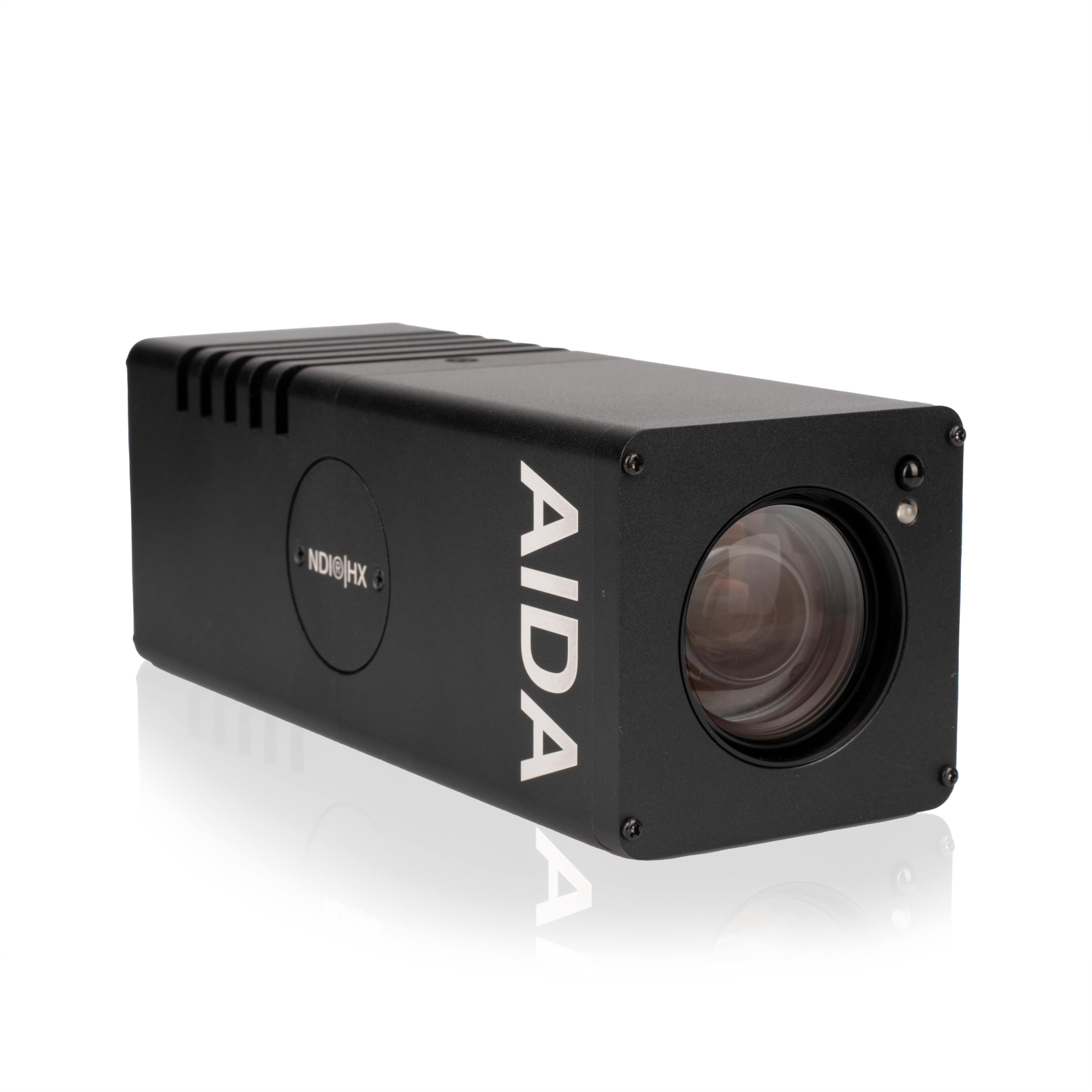

Aida Full HD NDI HX IP POV Camera with 20x Optical Zoom

- 1/2.8" CMOS Sensor
- Up to 1080p60 Video
- HDMI and IP Outputs
- 20x Optical Zoom, Autofocus
- 3.5mm TRS NDI|HX Audio Input
- Breakout Cable with Power and RS-485
- IR Remote, WebUI Control
- PoE+ Support, Micro-USB Firmware Port

Perfect for integration into your preexisting NDI|HX setup, this Full HD NDI|HX IP POV Camera from AIDA Imaging features an integrated NDI|HX license and full HD HDMI and IP outputs for high-quality footage in broadcast and live event streaming applications.
The camera features a 1/2.8" CMOS image sensor and 20x optical zoom with autofocus to capture clear HD video.
A 3.5mm TRS stereo audio input allows you to embed audio into your NDI|HX stream.

Supports and Rigs

ON-AIR

Mounting bracket for IP camera

₦ 48,535.18 VAT included

Available 16 unit in 4 Days

General
Zoom: 20x (Optical)
Field of View: 61° (Wide) | 3.4° (Tele)
Minimum Illumination: 0.2 lux (Day) | 0.1 lux (Night)
Image Sensor: 1/2.8" Progressive CMOS
Pixel Size: 2.9 x 2.9 µm
Aperture: F1.5 ~ 3.0
Resolution: 1080p, 1080i, 720p
Color space: 4:2:2 YCbCr 10-bit
Effective Pixels: 1920 x 1080
Frame Rates:
1080p at 60/59.94/50/30/29.97/25/24
1080i at 60/59.94/50
720p at 60/59.94/50

Inputs/Outputs
USB I/O: 1 x Micro-USB Female Input
Video I/O:
- 1x HDMI Output
- 1x RJ45 Output
Audio I/O: 1x 1/8" / 3.5 mm TRS Input
Other I/O: 1 x 6-Pin I/O for Breakout Cable (RS-485)
Audio Sample Rate: 16/24/32-bit
Protocols: UDP|IP, RSTP, RTMP, SRT, NDI|HX
Control Protocol: VISCA over IP

Power
Power Source: AC Adapter with Power Brick (Included), PoE
DC Input Power: 9 to 15 VDC
Power Consumption: 24 W

Physical
Mounting: 2x 1/4"-20 Thread
Color: Black
Operating Conditions: 32 to 104°F / 0 to 40°C
Dimensions: 6.7 x 2.5 x 2.5" / 171 x 64 x 64 mm
Weight: 21.2 oz / 600 g
