VS-44DT

Name: VS-44DT
Brand: Kramer
SKU: VS-44DT
Price: 3905.3 EUR
Availability: OutOfStock

Kramer

4x4 4K60 4:2:0 HDMI/HDBaseT Extended-Reach PoE Matrix Switcher

go to the technical sheet

-2.5%

Save 2.5%

€ 3.905,30

€ 3.632,84 VAT excl.

€ 4.005,44

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

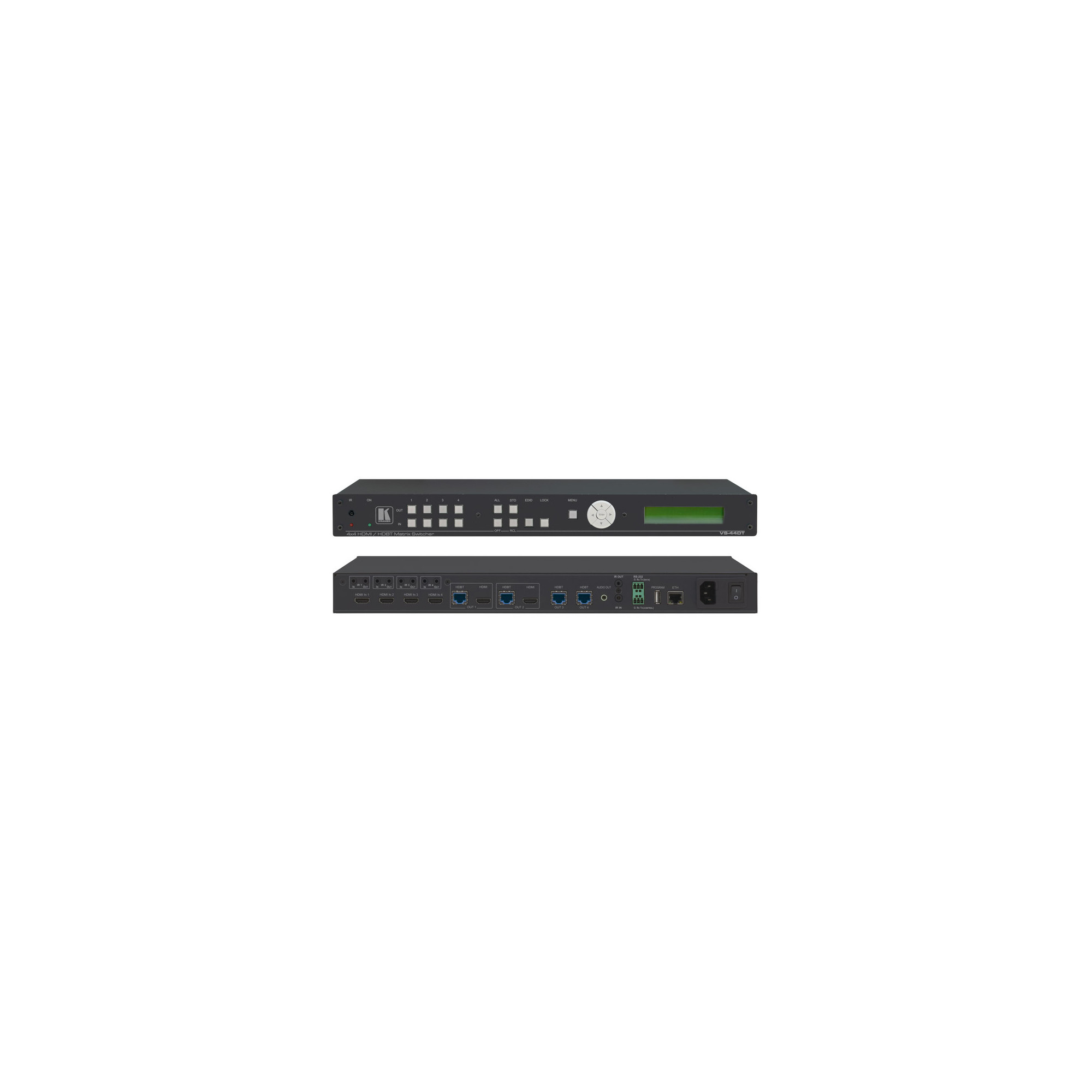

4x4 4K60 4:2:0 HDMI/HDBaseT Extended-Reach PoE Matrix Switcher

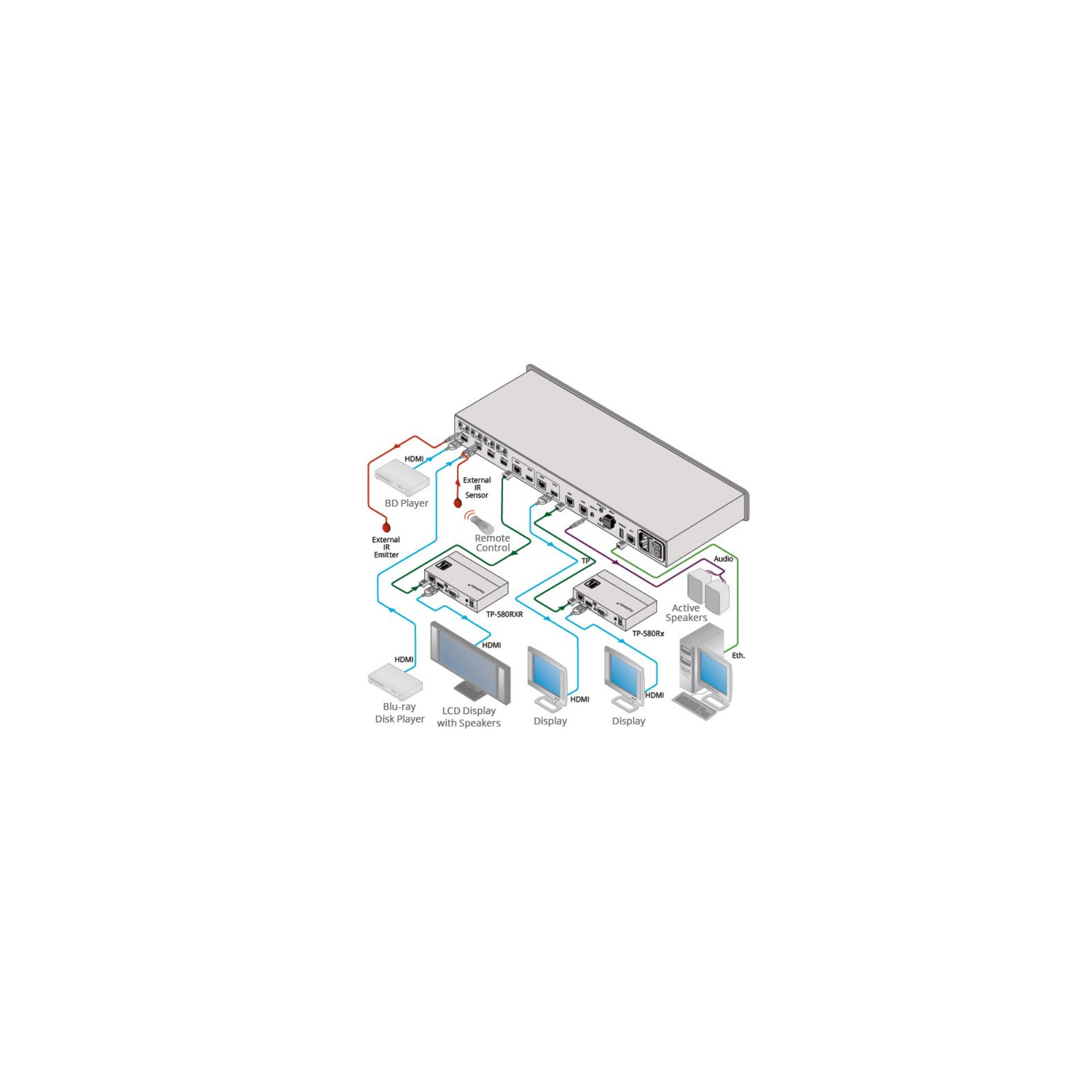

VS-44DT is a 4x4 4K@60Hz (4:2:0) HDMI matrix switcher that transmits video, audio, Ethernet, RS-232 and IR signals over extended distances using HDBaseT-compatible technology. The unit accepts up to four HDMI and four IR inputs as well as Ethernet and RS-232 network and control. The inputs can be routed to any or all of the four HDBaseT-compatible outputs, the first two of which also have simultaneous HDMI outputs. VS-44DT connects to compatible HDBaseT-compatible receivers such as, TP-780RXR, TP-580RXR and TP-588D. It supports resolutions of up to 4K@60Hz (4:2:0) and WUXGA. The matrix is a PoE provider that provides power over Ethernet to compatible PoE receivers.

Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
Max. Resolution — 4K@60Hz (4:2:0) and WUXGA.
Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC-UNIKAT cables.
Cables — For optimum range and performance, use the recommended Kramer cables
Outputs — 4 HDBaseT-compatible with outputs 1 and 2 having simultaneous HDMI outputs.
PoE Support — PoE provider to HDBaseT-compatible receivers such as the TP-588D and TP-780RXR.
HDTV Compatible.
HDCP Compliant.
EDID Capture — Copies and stores the EDID from a display device.
HDMI Support — 3D, Deep Color, x.v.Color, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS-HD® and 7.1 PCM.
