4K60 HDMI Matrix Extender Cat6

Name: 4K60 HDMI Matrix Extender Cat6
Brand: Lindy
SKU: 4K60 HDMI Matrix Extender Cat6
Price: 3873849 NGN
Availability: InStock

Lindy

EAN: 4002888383455

150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender - 38345

go to the technical sheet

₦ 3,873,849.00

₦ 3,603,580.75 VAT excl.

Available 1 unit in 4 Days

Not sure if this is the right product for you? Talk to a consultant

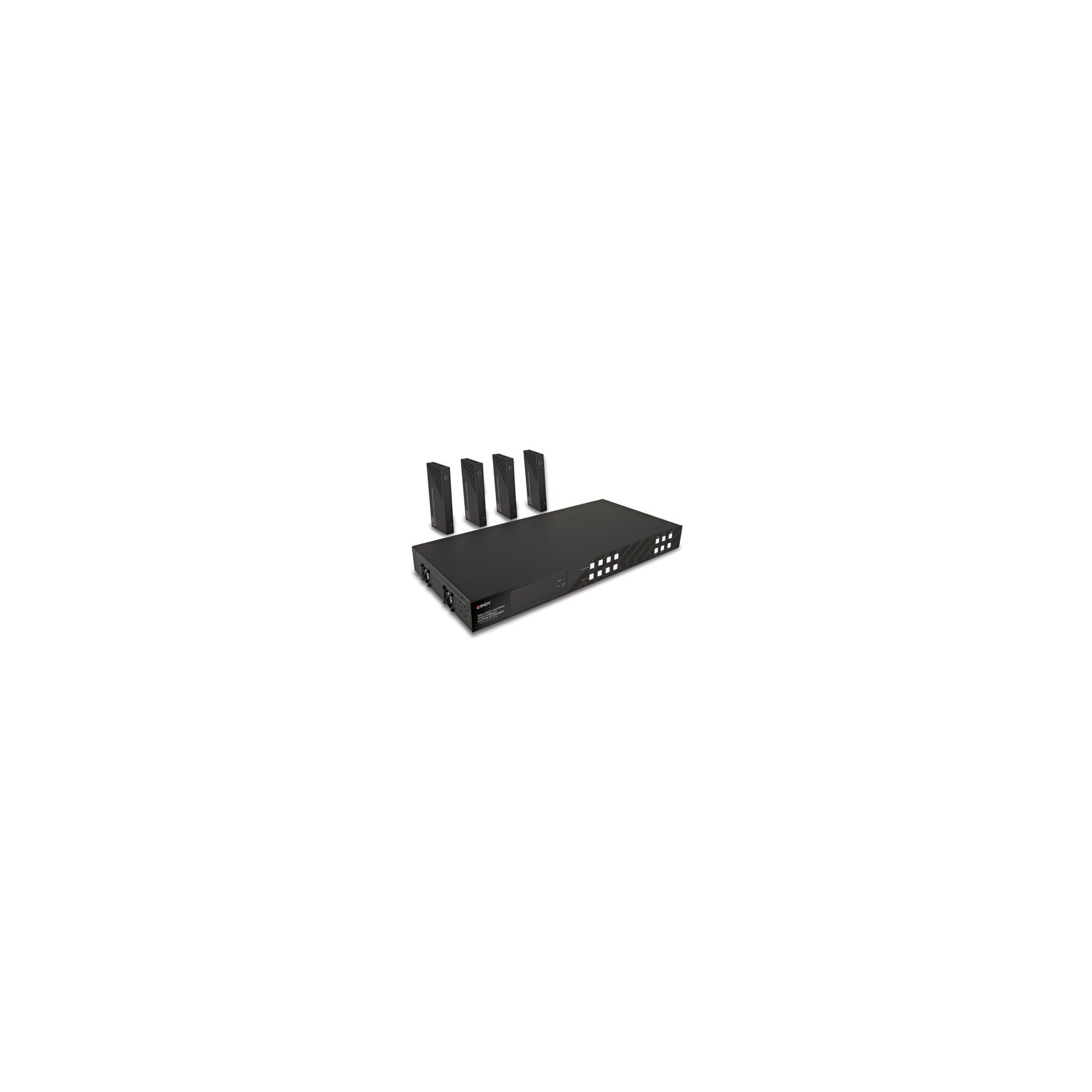

Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender - 38345

- HDBaseT Matrix Extender that extends and distributes HDMI®, IR & RS-232 signals to 4 displays at distances of up to 150m
- Supports resolutions up to 4K60Hz with HDR
- Features loop-through HDMI® outputs for local monitoring
- Supports power over Cable (PoC), EDID management, downscaler and Audio de-embedding functions

The Lindy 150m Cat.6 4x4 HDMI® 4K60 HDBaseT Matrix Extender is an high-end and complete solution to switch and extend 4 HDMI® signals to 4 HDBaseT receivers using Cat.6 or above cables up to 150m.
Supporting resolutions up to 4K60Hz including HDR and 1080p, the Matrix Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.

It supports several signals and features such as analog and coax de-embedded audio, IR matrix function and RS-232 control or pass-through signals.
An advanced EDID management allow the user to select different EDID modes while the integrated HDMI loop-out ports enables simultaneous viewing so that a local display can be connected for monitoring each HDBaseT output, or to create additional viewing zones.
PoC (Power over Cable) functionality allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver, meaning only the transmitter unit needs to be powered on.

This unit can be managed by pushing the buttons on the front panel via OSD menu with a OLED screen, IR remote control (included), RS-232 or TCP/IP commands and web GUI.

General
AV Interface: HDMI®
Interfaces Standard: HDMI® 2.0
Supported Bandwidth: 18Gbps
Maximum Distance:
- 120m (393.7ft) - 3840x2160@60Hz 4:4:4 8bit
- 150m (492.12ft) - 1920x1080@60Hz
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
HDCP Support: 2.2
EDID Pass Through: Presets, Cloning
Supported Audio:
- HDMI Audio Pass-through
- Digital Audio up to 5.1Ch
- Analog Audio up to 2.0Ch
Separate Audio Ports: Coax and balanced analog
IR Support: 20 - 60KHz
Serial Interface: RS-232
Transmission Protocol: HDBaseT
Transmission Medium: 4 x Cat.6
Special Features: PoC (Power over Cable), HDMI® Loop Out ports, 4K to 1080p downscaler

Connectors
Transmitter Input: 4 x HDMI® (Female), 5 x 3.5mm IR (Female)
Transmitter Output: 4 x HDMI® (Female), 4 x Coax RCA (Female), 4 x L/R Audio 5-pin phoenix, 5 x 3.5mm IR (Female), 4 x RJ45 HDBaseT (Female)
Transmitter Bidirectonal Ports: RS-232 9 pin (Female), RJ45 (Female)
Transmitter Power: IEC C14
Receiver Input: 3.5mm IR (Female), RJ45 HDBaseT (Female)
Receiver Output: HDMI® (Female), 3.5mm Audio (Female), 3.5mm IR (Female)
Receiver Bidirectonal Ports: RS-232 3 pin phoenix
Receiver Power: 5.5/2.1mm

Physical Properties
Housing Material: Metal
Operating Temperature: 0°C- 40°C (32°F - 104°F)
Storage Temperature: -20°C- 60°C (-4°F - 140°F)
Humidity: 20- 90% RH (Non-condensing)
Power Requirements: 60W
Colour: Black
Dimensions:
- Matrix: 440x200x45mm (17.32x7.87x1.77in)
- Receivers: 140x65x18mm (5.51x2.56x0.71in)
Net Weight: 5.31Kg (11.71lb)

4x4 HDBaseT Extender Matrix - Transmitter
4x HDBaseT Receivers
5x IR Emitter Cable, 1.5m
5x IR Receiver Cable, 1.5m
10x Mounting Ears & Screws
4x 3-Pin Terminal Block
4x 5-Pin Terminal Block
1x RS-232 Male to Female cable, 1.5m
4x mains cables (EU, UK, US & AUS), 1.5m
1x Lindy Manual
