Adcom

4016032478966
4x HDMI Matrix Switch, Power Consumption approx. 3.8 W - Black
go to the technical sheet
₦ 243,658.00

₦ 226,659.06 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

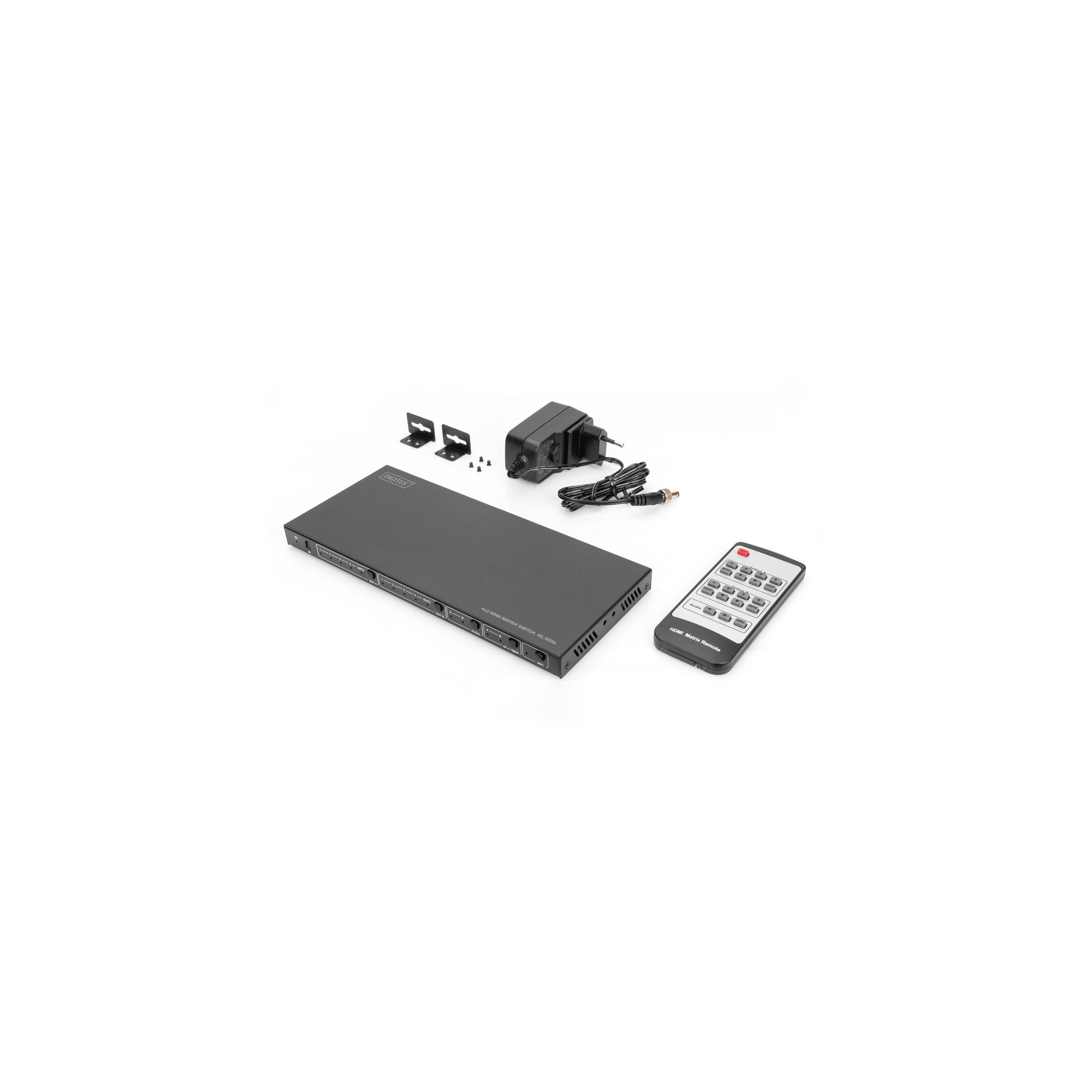

Digitus 4x HDMI Matrix Switch, Power Consumption approx. 3.8 W - Black

The Digitus® 4x HDMI Matrix Switch, 4K/60Hz, distributes multimedia content from up to 4 HDMI sources to up to 2 recording devices (e.g., hard disk recorders) or playback devices (TVs, monitors, projectors, etc.), simultaneously and independently of each other.
Conveniently switch between HDMI sources and output devices independently using the remote control, without the hassle of reconnecting cables.
With 4K UHD support, you can experience your multimedia content in ultra-sharp resolution.
A perfect and complete HDMI distribution solution, both for professional and business use.

- Supports 4K2K/60Hz (4:4:4)
- Video bandwidth: 18 Gbps per channel
- HDCP 2.2 / 1.4
- HDMI 2.0
- EDID Management
- ARC (Audio Return Channel)
- Supports downscaling of 4K content to Full HD (1080p) displays
- Supports Dolby Vision, HDR10+, HLG
- Audio extractor (connects audio output device via optical/analog connection)

Inputs
___________________

4x HDMI (4K/60Hz, 4:4:4, 18 Gbps)
1x power input (DC 12V/1A), screw connector - external power supply connection
1x Micro USB input - service/FW update

Outputs
___________________

2x HDMI (4K/60Hz, 4:4:4, 18 Gbps)
1x optical S/PDIF / Toslink™
1x 3.5 mm audio jack socket (stereo)
ESD protection
Suitable for wall mounting
Operating temperature: 0-40°
Power consumption: approx. 3.8 W

General
___________________

Housing: Metal
Color: Black
Dimensions: Length 10.5 x Width 25.1 x Height 2.0 cm
Weight: 620g
