KUMO-1616-12G

AJA KUMO 16x16 Compact 12G-SDI Router (1 RU), HTTP Monitoring and Control

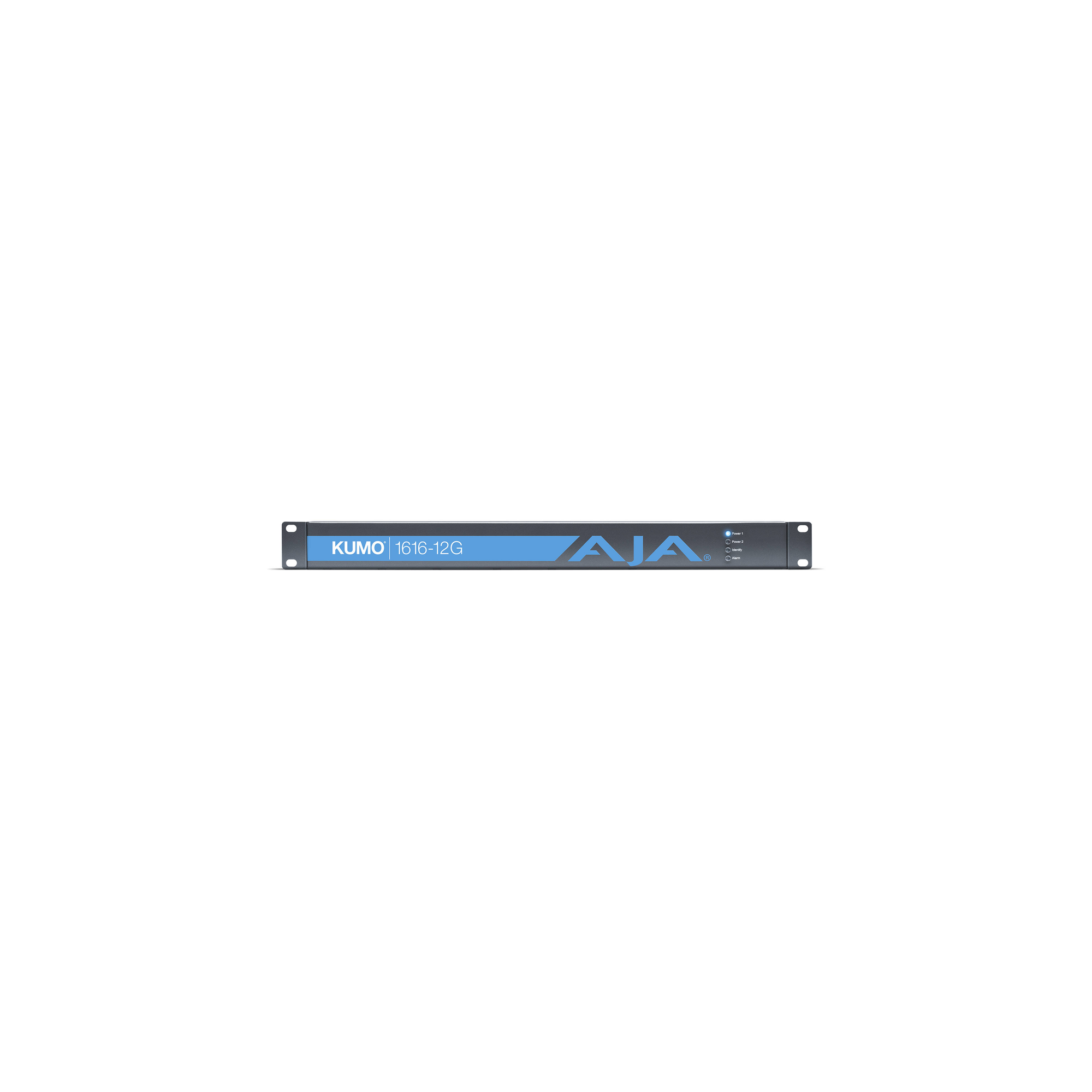

The 1 RU KUMO 1616 12G-SDI Compact Router from AJA is a 16 x 16 video matrix router.
It is a small, cost-effective solution for a range of broadcast, production, and post-production applications.
This router features 16 SDI inputs and 16 SDI outputs.
The KUMO 1616 12G has an embedded Linux operating system and internal Web server, which provide Web browser control via 10/100/1000 Ethernet with no need for additional software.

The mini-USB port provides easy configuration of the router IP address and simplifies network configurations.
The unit's compact 1 RU size makes it suitable for edit suites, mobile sports trucks, corporate video installations, and live theatrical A/V rigs while its HTTP support gives you a wide range of powerful control options.
This router can be integrated with existing infrastructure using the industry-standard grass valley native protocol over RS-422 or Ethernet.

Automatic EQ and re-clocking
Supports all ancillary data, including embedded audio
Up to eight Salvos can be configured and saved in each KUMO router
Reference via BNC, looping, black burst or tri-level sync
10/100/1000 Ethernet LAN
Embedded Linux OS with internal Web server for Web browser control
HTTP control and monitoring via a web browser
Industry-standard grass valley native protocol over RS-422 or Ethernet
1 RU form factor
Redundant power, isolated power inputs

* Note: To make the matrix operational, a power cable with a European/Italian plug is required
