Videohub 10x10 12G

Blackmagic Videohub 10x10 12G SDI zero latency, USB-C interface

The new Blackmagic Videohub 12G-SDI video routers let you connect all your equipment without creating a complex cable mess! Blackmagic Videohub routers support 12G-SDI so they allow you to connect and route any combination of SD, HD and Ultra HD on the same router at the same time.
Plus they have zero latency so are perfect for live production and broadcast! The design features an elegant front panel with LCD for labels and even live video, shortcut buttons and a machined metal spin knob with soft rubber coating that lets you browse video sources.
Ethernet is also included so you can remotely control the router using a range of external hardware or software control panels.

Blackmagic Videohub 12G eliminates cable mess because you can plug all your SDI equipment into the router, then do connections electronically! You don't need complex system diagrams for your studio because you can connect any video input to any video output, or even a single video input to multiple video outputs.
This means monitors can view any source in the studio! You get total flexibility to handle constant change or even emergencies.
It lets you use multiple HyperDeck recorders for redundant mastering. Or you can route video to multiple streaming processors for all broadcast platforms.
Blackmagic Videohub 12G is also great for adding extra inputs to an ATEM switcher!

Blackmagic Videohub 10x10 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time.
It has 10 12G-SDI inputs and 10 12G-SDI outputs plus reference connections in a one rack unit size.

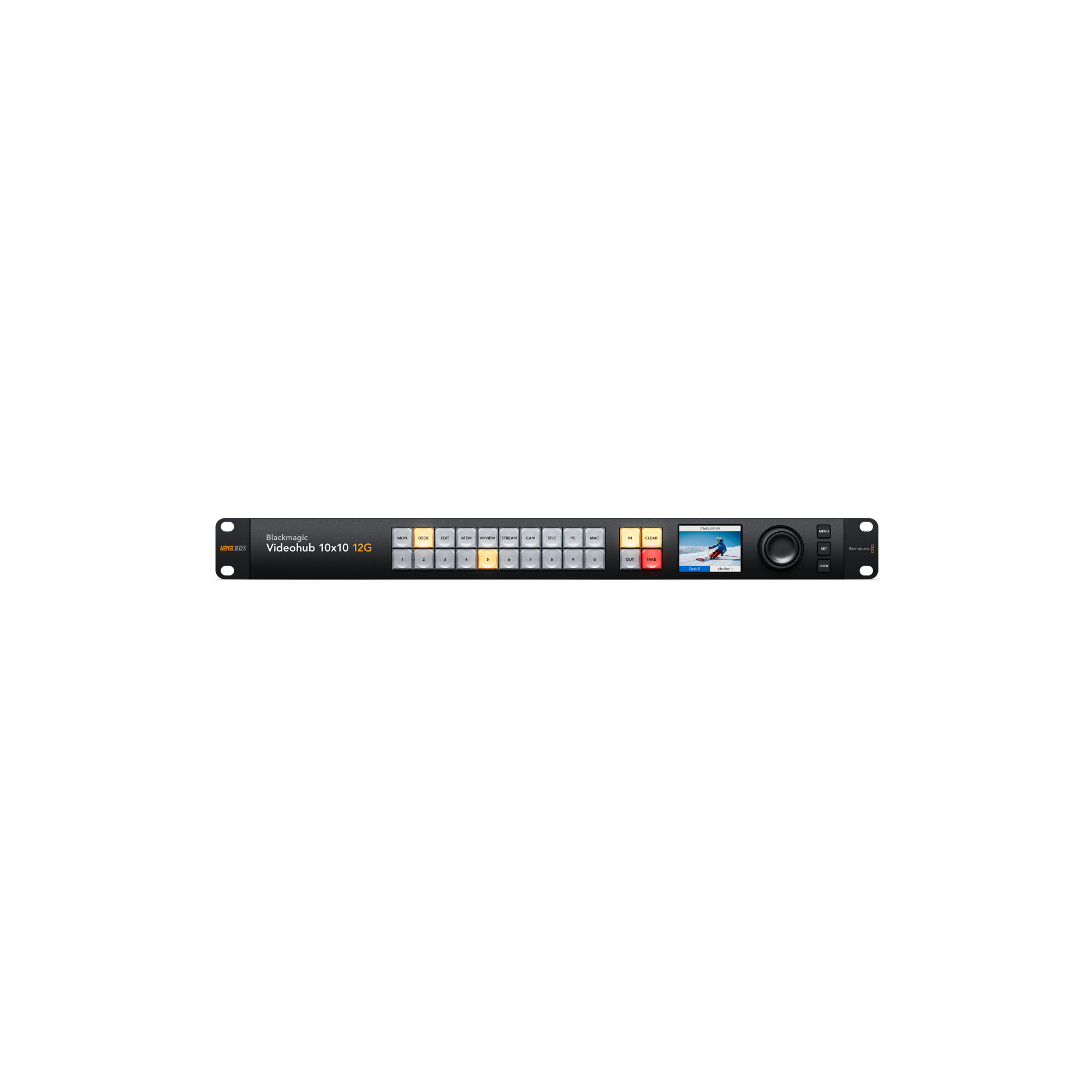

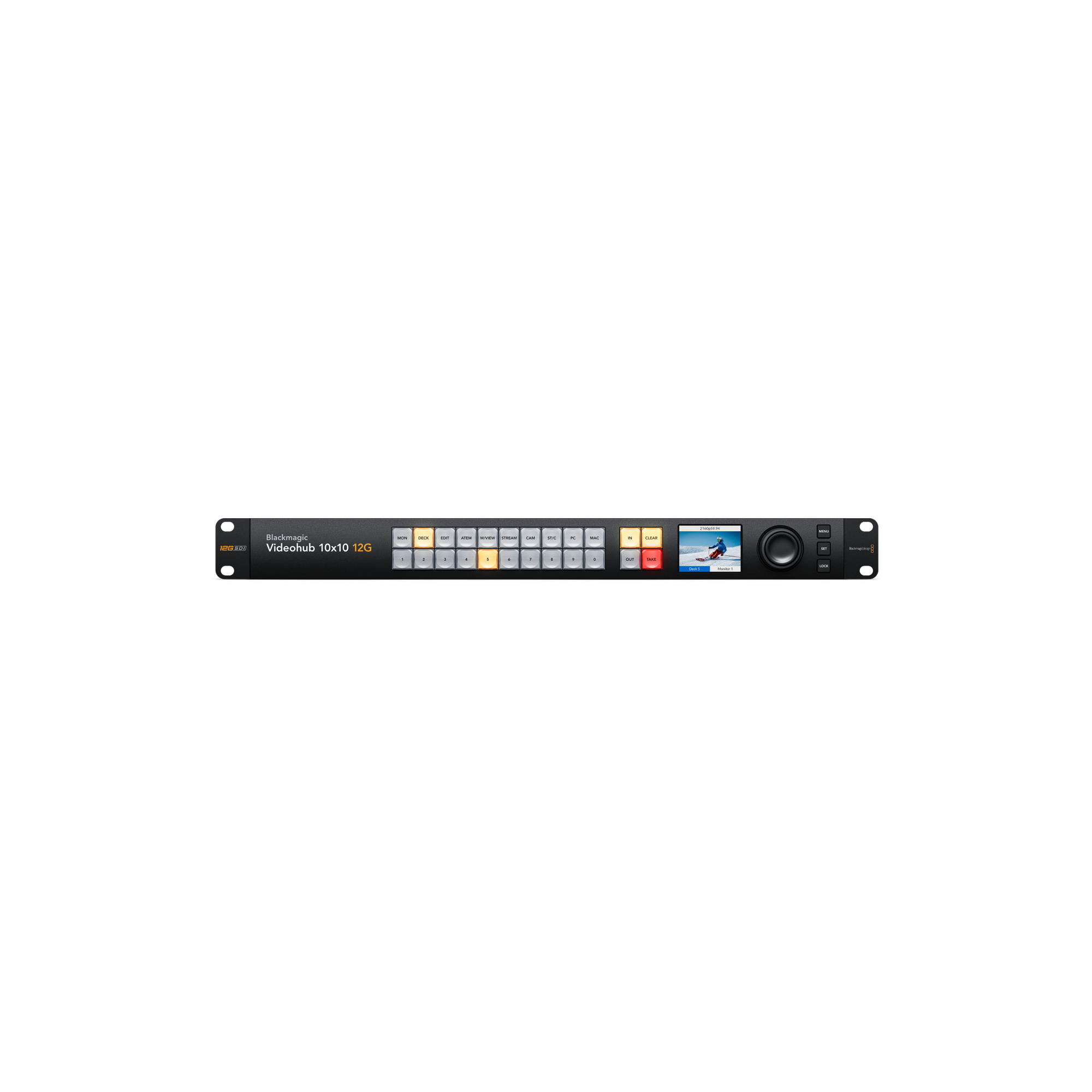

The front panel LCD lets you see video before routing and clearly displays routing labels and video standards.
Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch.
It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.

All Blackmagic Videohub routers can be remotely controlled, which is vital in large broadcast studios where the equipment connected to the router is located in different areas of the building.
There are 2 different types of hardware panel available.
The Videohub Master Control Pro is similar to the front panel and has a spin knob, LCD and shortcut buttons.
While the Videohub Smart Control Pro model features all buttons and is generally programmed so the panel controls a single router output with each button programmed to a router input. Then you can just cut along the panel buttons to change the router output instantly.
It works best when you install a smart panel below each video monitor!

If you need external router control that's affordable, then Videohub Software Control is perfect because it can be downloaded free! Videohub Software Control is available for both Mac and Windows, so you can run it on the computers you're already using for creative work.
The software features large buttons that are easy to press. Each button can be customized to a router input, a router output, and has an icon assigned to help you identify it visually.
The big buttons are great for use on a touchscreen PC, where the software becomes a large screen XY control panel! You can even download a version of the software for the Apple iPad!

Blackmagic Videohub 12G supports multiple languages so you can customize it to the language you prefer.
You get support for English, Chinese, Japanese, Korean, Spanish, German, French, Russian, Italian, Portuguese, Turkish, Polish and Ukrainian.
Simply go into the setup menu to set the language, or you can change at any time in the future.
Once a language is selected, the menus and the display on the LCD will change to the selected language.
However, independent of the language you set, the input and output labels are always unicode so you can customize the labels to a mix of multiple languages!
Multiple languages means you can work anywhere in the world and with any local crew!
