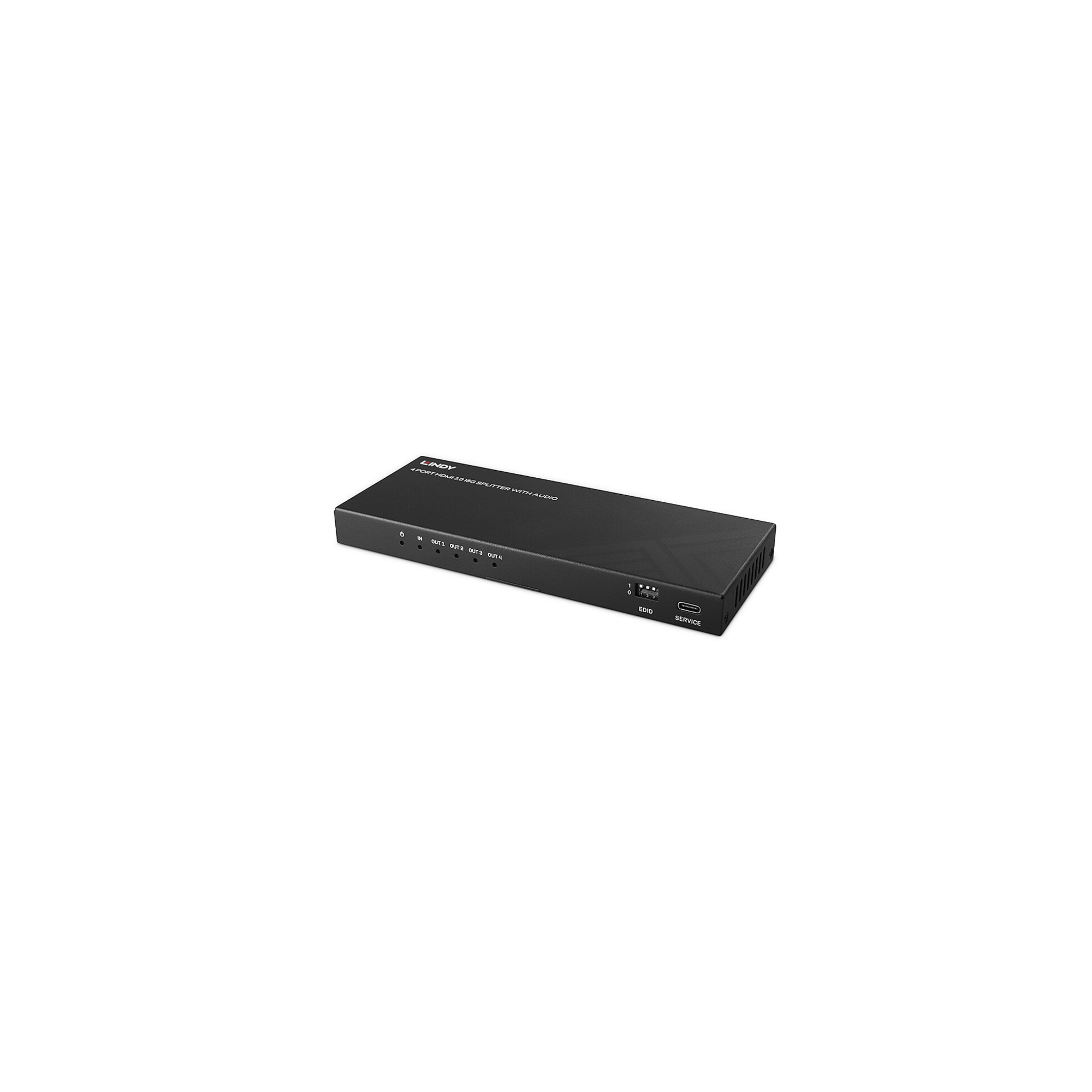

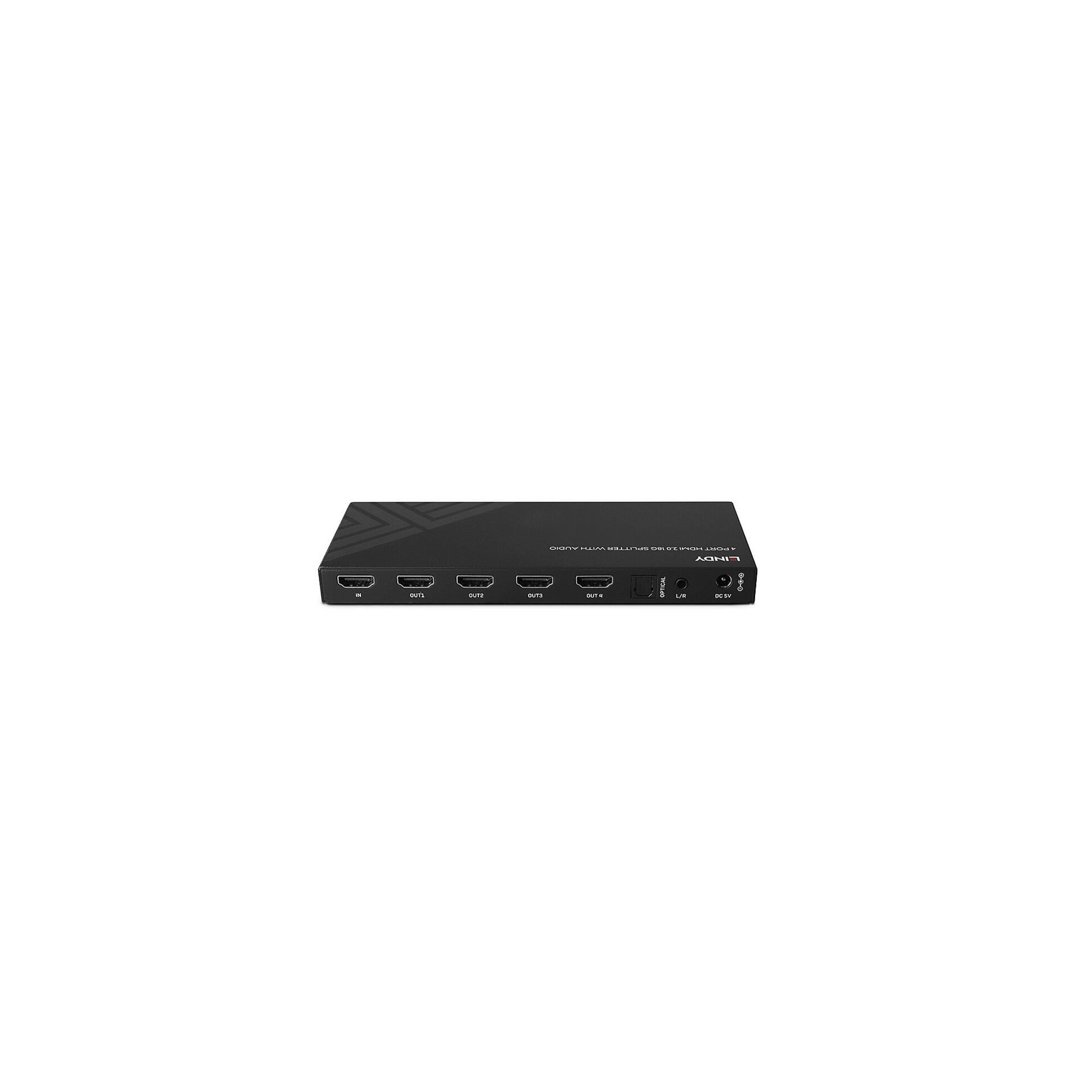

Splitter HDMI 8K60 - 4 ports
Splitter HDMI 8K60 - 4 ports
Previous keyboard_arrow_left
Next keyboard_arrow_right
Splitter HDMI 8K60 - 4 ports
Splitter HDMI 8K60 - 4 ports

Splitter HDMI 8K60 - 4 ports

Lindy

4002888385350
HDMI Splitter 8K60 with Audio & Downscaling, 2 Ports - 38534
go to the technical sheet
₦ 252,950.00

₦ 235,301.89 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant
Lindy HDMI Splitter 8K60 with Audio & Downscaling, 2 Ports - 38534

- Sends an HDMI® signal to 4 displays
- Supports resolutions up to 8K 60Hz 4:4:4, with HDR
- Extract digital or analog audio from an HDMI® signal
- DIP switches for adjusting the EDID output

This HDMI® 8K60 splitter with Audio is a multi-function solution for distributing an HDMI® signal to 4 monitors simultaneously from one source and extracting digital or analog audio separately.
Supports resolutions up to 8K 60Hz 4:4:4 8bit, ideal for any scenario and installation retail, events, presentations, classrooms, etc.
In addition, the splitter has optical audio outputs and 3.5mm jack to directly extract audio from an HDMI® signal and manage it separately by connecting it to an amplifier or soundbar.

It also includes a downscaler in the form of selectors to set the desired signal to 4K or Full HD so you always have the optimal resolution even on screens that support different resolutions.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

General
__________________

AV Interfaces: HDMI®
Supported Bandwidth: 48Gbps as specified in HDMI® 2.1
Maximum Resolution: 7680x4320@60 Hz 4:4:4 8bit
HDCP Support: 2.3
Audio Support:
- Audio Pass-Through
- LPCM 2CH
- Up to 7.1CH (Optical)
Separate Audio Ports:
- 3.5mm (Female)
- Toslink (Optical)

Connectors
__________________

Inputs: HDMI® Type A (Female)
Outputs: 4 x HDMI® Type A (Female), Toslink (Optical), 3.5mm (Female)
Power Supply: 5.5/2.5mm

Physical Characteristics
__________________________

Material: Metal
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20-90% RH (non-condensing)
Power Supply: 5VDC 2A
Color: Black
Dimensions (approx.) WxDxH: 176x17x68mm (6.93x0.67x2.68in)
Net Weight: 0.375kg (0.83lb)

1x HDMI® Splitter with 4-port Audio
1x Multi-Country Power Supply (UK, EU, US & AUS)
1x Manual
