4K60 HDMI Matrix, 4x2 - Switch between 4 HDMI® sources and 2 HDMI monitors
go to the technical sheet
₦ 327,336.43

₦ 304,499.00 VAT excl.

Volume discounts

Quantity Unit discount You Save
2 5% ₦ 32,733.64
Available in 14 days
Not sure if this is the right product for you? Talk to a consultant
Lindy 4K60 HDMI Matrix Switcher, 4x2 - Freely Switchable Between 4 Sources and 2 HDMI® Monitors with Separate Audio

- Supports resolutions up to 4K 60Hz and HDR
- Audio extraction from HDMI® to Toslink (optical) and 3.5mm jack
- Supports ARC and a downscaler function via the HDMI® B output

This 4K60 4x2 HDMI® matrix switcher is a high-performance solution for distributing content from multiple sources to two displays.
It supports HDMI® 2.0 18G signals to handle video signals at 4K Ultra HD 60Hz resolutions with additional HDR (High Dynamic Range) support for video content with improved brightness, contrast, and a much wider color gamut.

Perfect for home theater installations, digital signage, retail displays, and AV presentations.

HDCP 2.2 encryption support allows you to view any content, with the ability to connect sources such as decoders, Blu-ray players, and 4K HDR media players.
In addition to audio pass-through from the HDMI® port, this switch has a built-in audio extractor with a 3.5mm analog jack and an optical port for connecting to separate audio systems such as soundbars, speakers, and amplifiers.

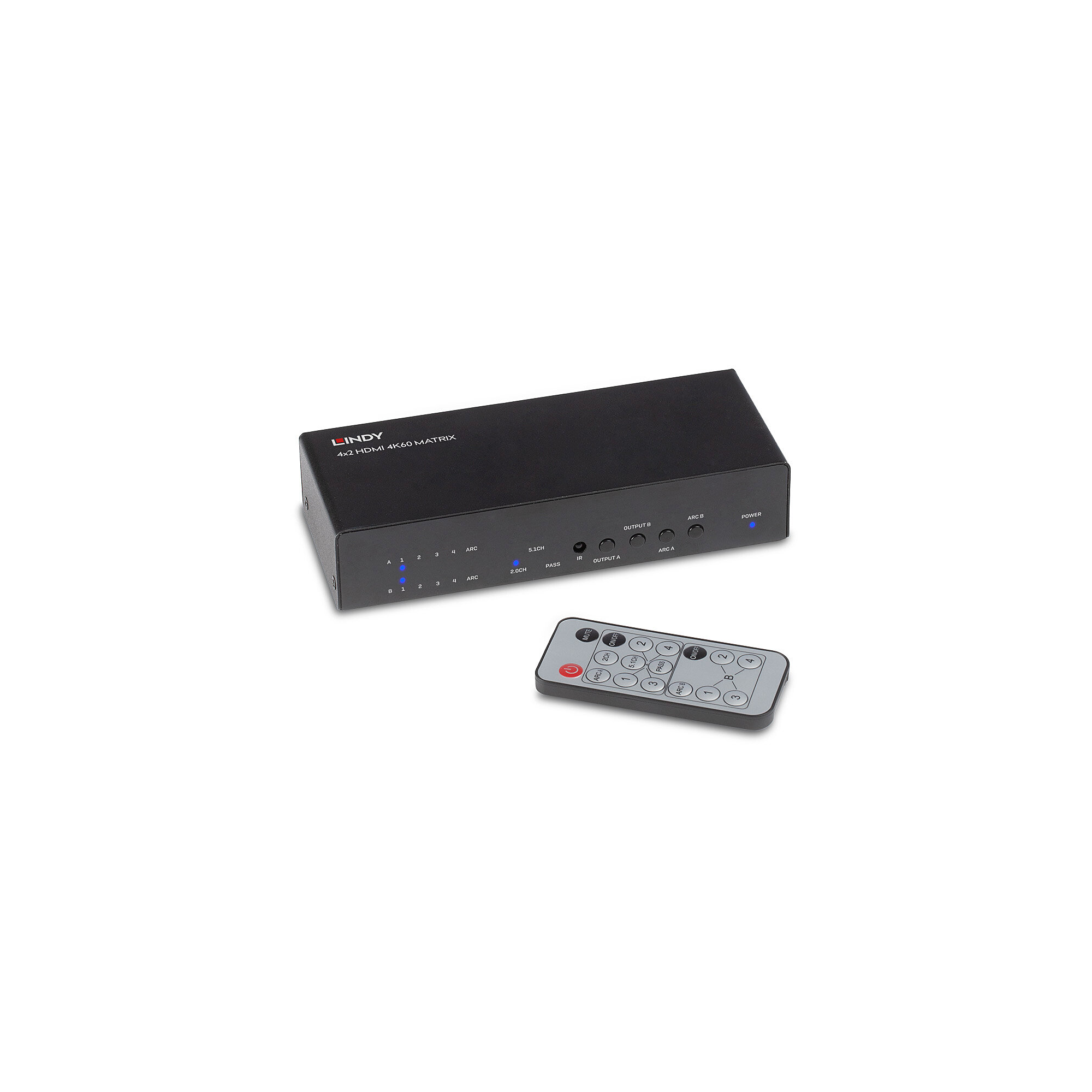

It can be controlled manually using the buttons on the unit or with the included remote control, ideal for demonstrations, training, or multimedia presentations.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress, and the HDMI logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

General
AV Interface: HDMI®
Interface Standard: HDMI® 2.0
Supported Bandwidth: 18Gbps
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
HDCP Support: 2.2
Audio Support:
- HDMI® (Pass-Through)
- 5.1CH Optical
- Analog L/R
IR Support: 38kHz
Control: IR, Button
Special Functions: EDID Management, ARC, Downscaler Function, Digital or Analog Audio Extraction
Casing Material: Metal
Operating Temperature: 0°C - 70°C (32°F - 158°F)
Storage Temperature: -10°C - 80°C (14°F - 176°F)
Humidity: 5 - 90% RH (non-condensing)
Current Consumption: 5VDC 2A
Color: Black
Dimensions (approx.) WxDxH: 210x66x26.5mm (8.27x2.6x1.04in)
Net Weight: 0.348kg (0.77lb)

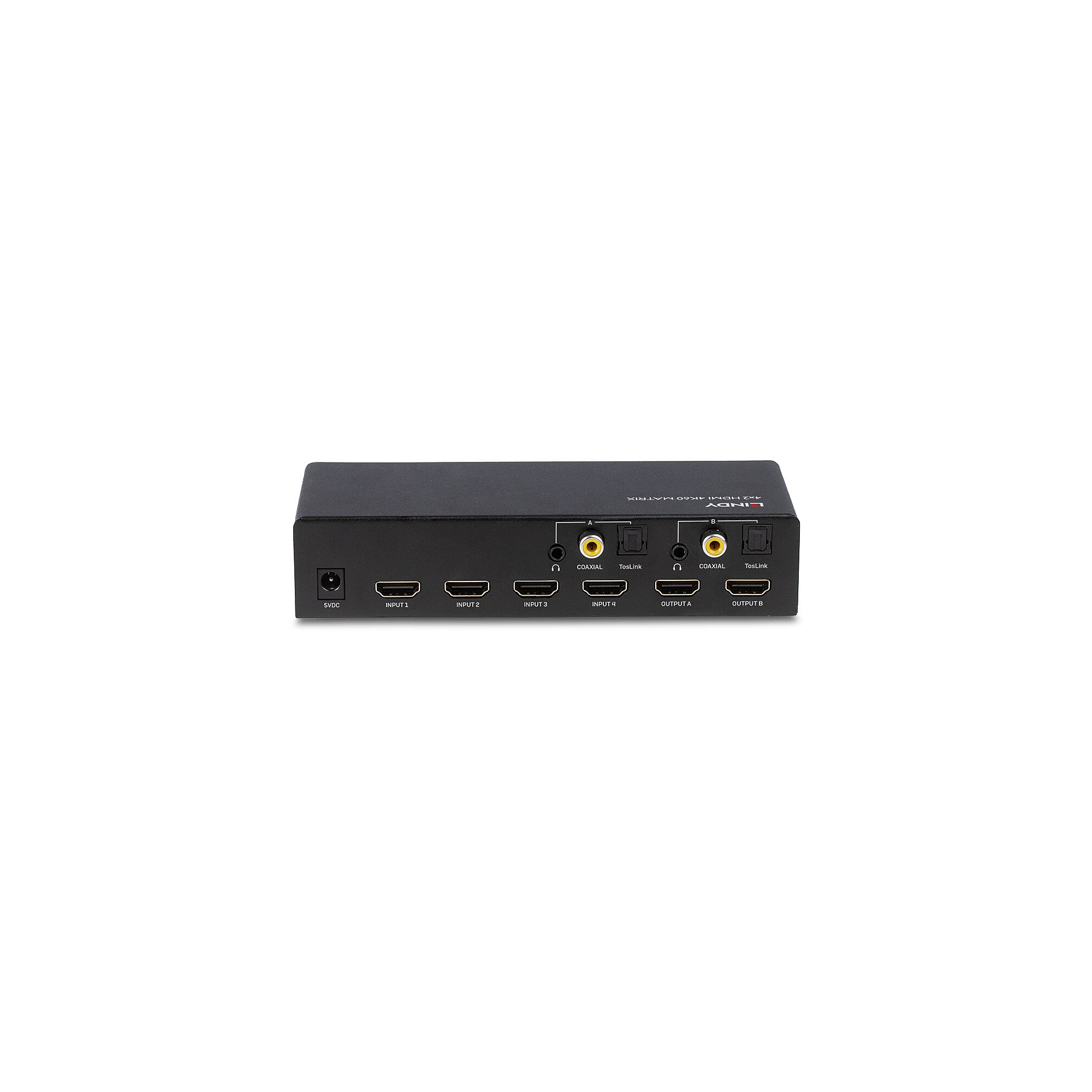

Connectors
Inputs: 4 x HDMI® (Female)
Outputs:
2 x HDMI® (Female)
2 x 3.5mm (Female)
2 x Coaxial to RCA (Female)
2 x TosLink (Optical (Female)
Power Supply: 3.5 / 1.35mm

1x Matrix HDMI®
1x IR Remote Control & CR2025 Battery
1x Multi-Country Power Supply (EU, UK, US & AUS)
1x Manual
