KUMO-6464-R0

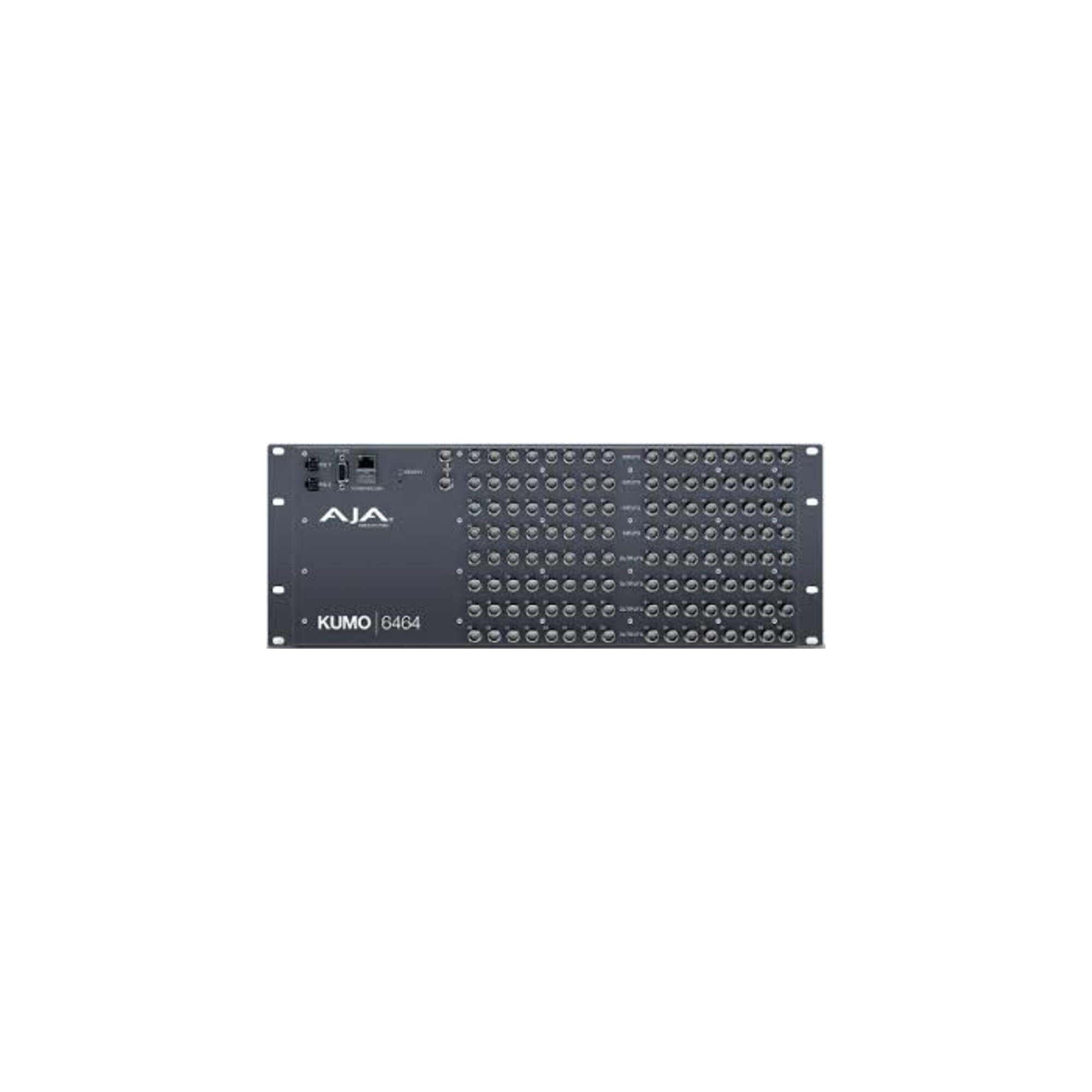

The KUMO 6464 Compact 64x64 3G-SDI Router from AJA offers 64 inputs and 64 outputs of 3G-SDI video and audio, while maintaining a slim and compact 4 RU profile. The router has elegant and powerful web-based network control, and supports any SDI-based signal up to 3G-SDI, including HD and even 4K/Ultra HD signals. Built with high-quality standards, the KUMO 6464 Router is ideal for any installation where a balance of size and routing capacity are critical.
Compact Routing

Compact SDI router provides powerful signal control and supports full broadcast specifications over SD-SDI, HD-SDI, and 3G-SDI, with quality that exceeds SMPTE specifications
Compact 4 RU size is just a 1.5" deep, making it a suitable fit for any broadcast, production or post-production environment, from mobile sports trucks and edit suites to corporate video installations or live theatrical A/V rigs
Offers 64 3G-SDI inputs and outputs

Powerful Signal Control

KUMO's powerful crosspoint routing matrix maps any input to any number of outputs without the need for additional patch panels or distribution amplifiers
Can be used as a distribution amplifier by routing a single input to all outputs
Can be configured for ganged dual and quad port routing, allowing users to group together multiple inputs and outputs for dual-link, 4K, and Ultra HD workflows, which allows for seamless routing of uncompressed or Raw 4K and Ultra HD signals throughout a production or post facility
You can switch the router back to HD/SD operation as needed, giving you the flexibility to route virtually any format in your facility

Broadcast Standard Reliability

Designed for critical broadcast, production, and post-production environments
Use of premium components coupled with dual redundant power supply ensures high signal quality and maximum uptime, even in the unexpected event of a power supply failure

Simple Installation and Configuration

Running embedded Linux, the KUMO router is network-ready and supports powerful HTTP control and monitoring via a web browser, without the need for additional software
You can activate auto-detect Bonjour/Zeroconf protocols that enable automatic network configuration by connecting the router to your network or a computer
Standard network configuration allows access to each router via its default IP address
Once connected to KUMO using a web browser, you can configure the full TCP/IP settings, select and name KUMO routers, name sources and destinations, and perform all operational functions
Easily integrates with existing infrastructure utilizing the industry standard Grass Valley Native Protocol over RS-422 or even Ethernet
Ethernet network connectivity also allows you to control all KUMO routers from any web browser on a network connected device, ensuring you have the control you need from any location


* Note: To make the matrix operational, a power cable with a European/Italian plug is required
