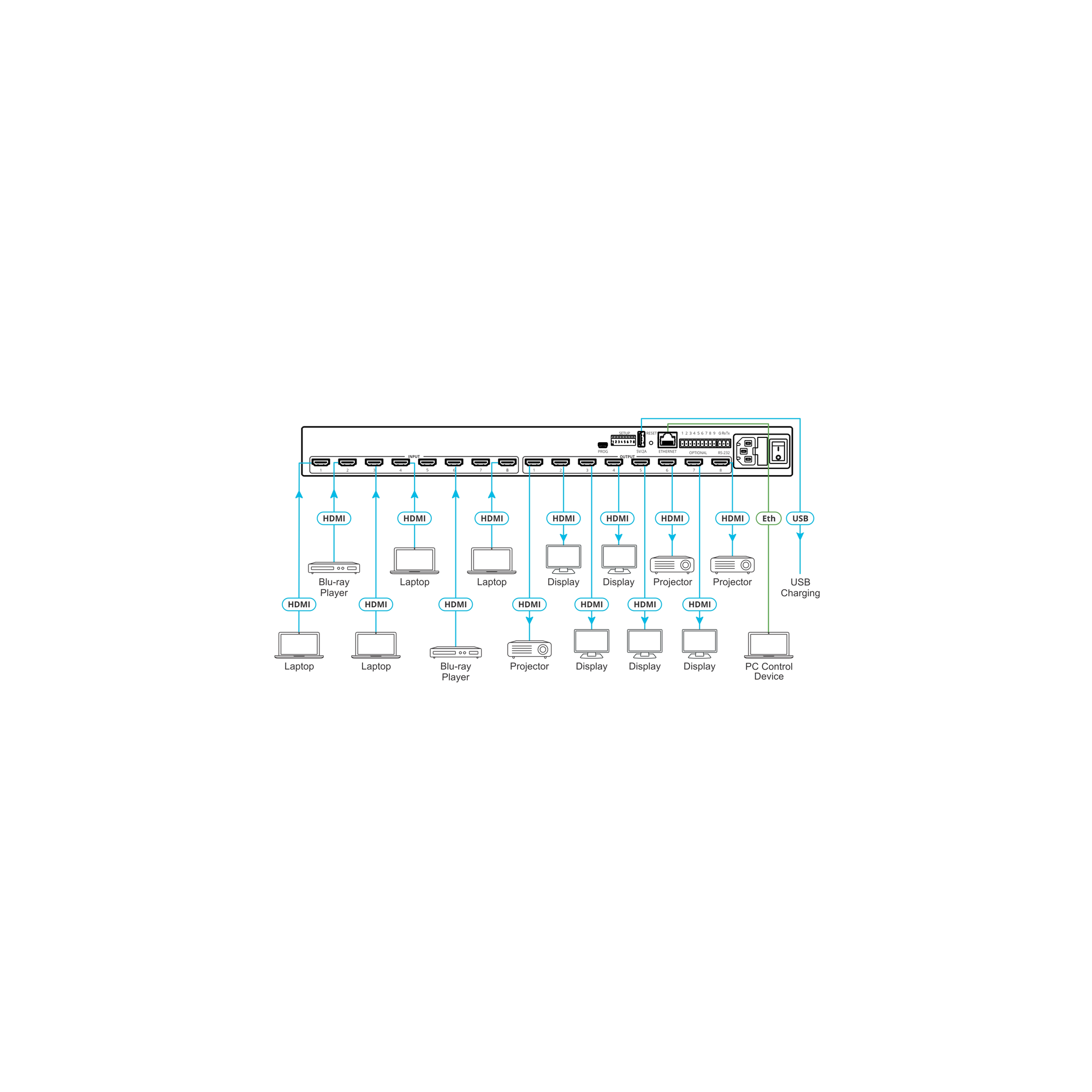

Connections I7O
Inputs: 8 HDMI: On female HDMI connectors
Outputs: 8 HDMI: On female HDMI connectors
Ports:
- 1 USB: On a mini-USB connector for device firmware upgrade or management
- 1 RS-232: On a 3-pin terminal block connector
- 1 Ethernet: On an RJ-45 female connector for device control and management
- 1 5V/2A USB: On a female USB-A connector for powering another device
Video:
- Max. Output Resolution: 4K@60Hz (4:4:4)
- Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
- Content Protection: HDCP 2.2
- Max Switching Time: Standard Mode: 3sec
- Max Switching Time: Safe Mode: 4sec
- Max Switching Time: Note: With same signal format
- Compliance: Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels as specified in HDMI 2.0
Audio:
- Matrix Size: 16x16
- Routable Signals: Breakaway forward/ARC signals
Control:
- Front Panel: Buttons for device operation, (for example, input/output selection)
- Indicators: 7 segment display
Power:
- Source: 100-240V AC, 50/60Hz
- Consumption: 66VA
Enclosure:
- Size: 19", 1U
- Type: Aluminum
- Cooling: FAN ventilation
- Max. Noise: 46dBA
Environmental Conditions:
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: -40° to +70°C (-40° to 158°F)
- Humidity: 10% to 90%, RH non-condensing
General:
Net Dimensions (W, D, H): 43.6cm x 18.3cm x 4.4cm
Net Dimensions (W, D, H): (17.18" x 7.20" x 1.72")
Shipping Dimensions (W, D, H): 52.5cm x 33cm x 10.7cm
Shipping Dimensions (W, D, H): (20.7" x 13" x 4.2")
Net Weight: 2.5kg (5.5lbs) approx
Shipping Weight: 3.4kg (7.4lbs) approx
Product Dimensions: 43.64cm x 18.30cm x 4.36cm (17.18" x 7.20" x 1.72" ) W, D, H
Product Weight: 2.4kg (5.2lbs) approx.
Shipping Dimensions: 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H
Shipping Weight: 3.3kg (7.3lbs) approx.

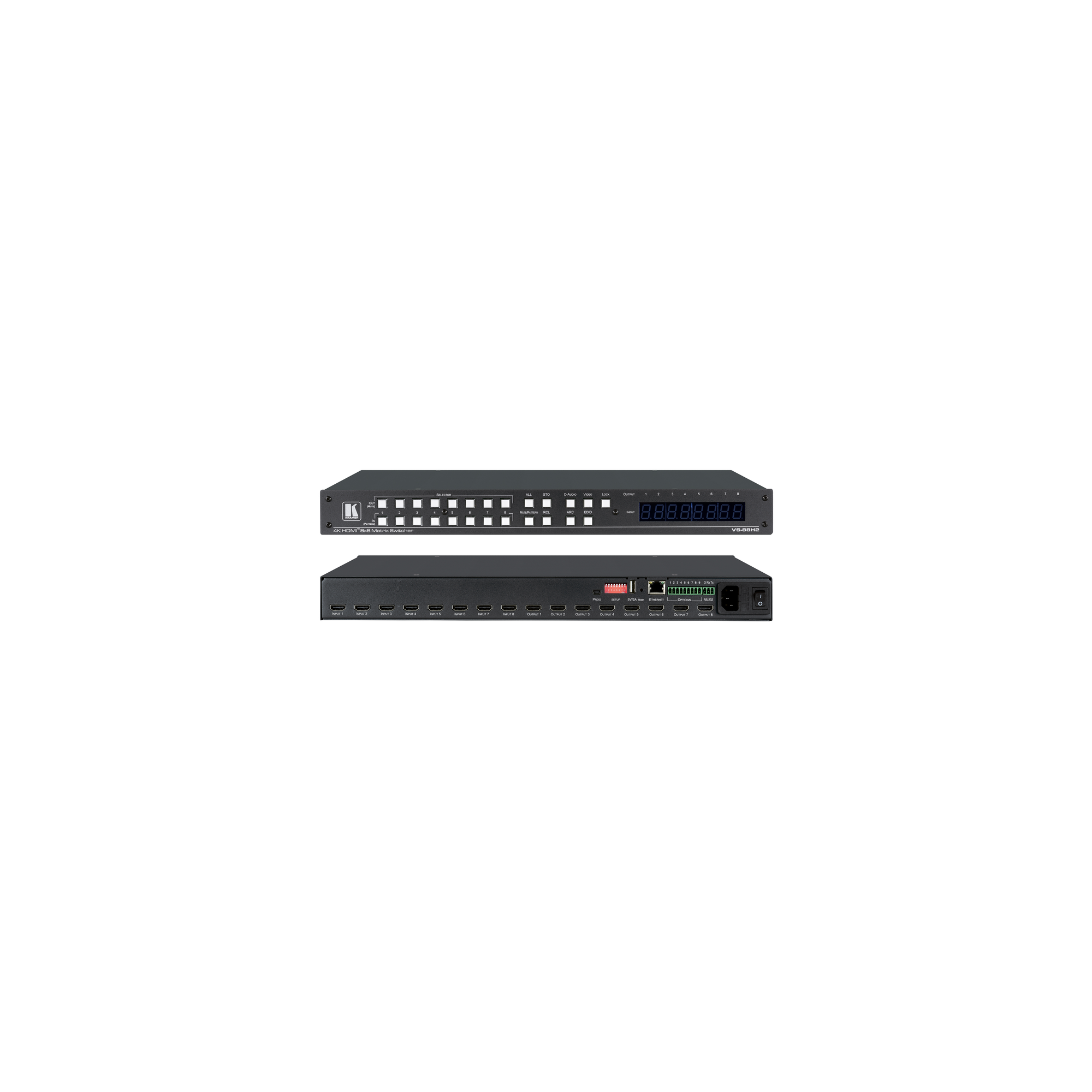

1x 8x8 4K HDR HDCP 2.2 Matrix Switcher with Digital Audio Routing
1x Rack ears
1x Power cord
