OG-ROI-SDI

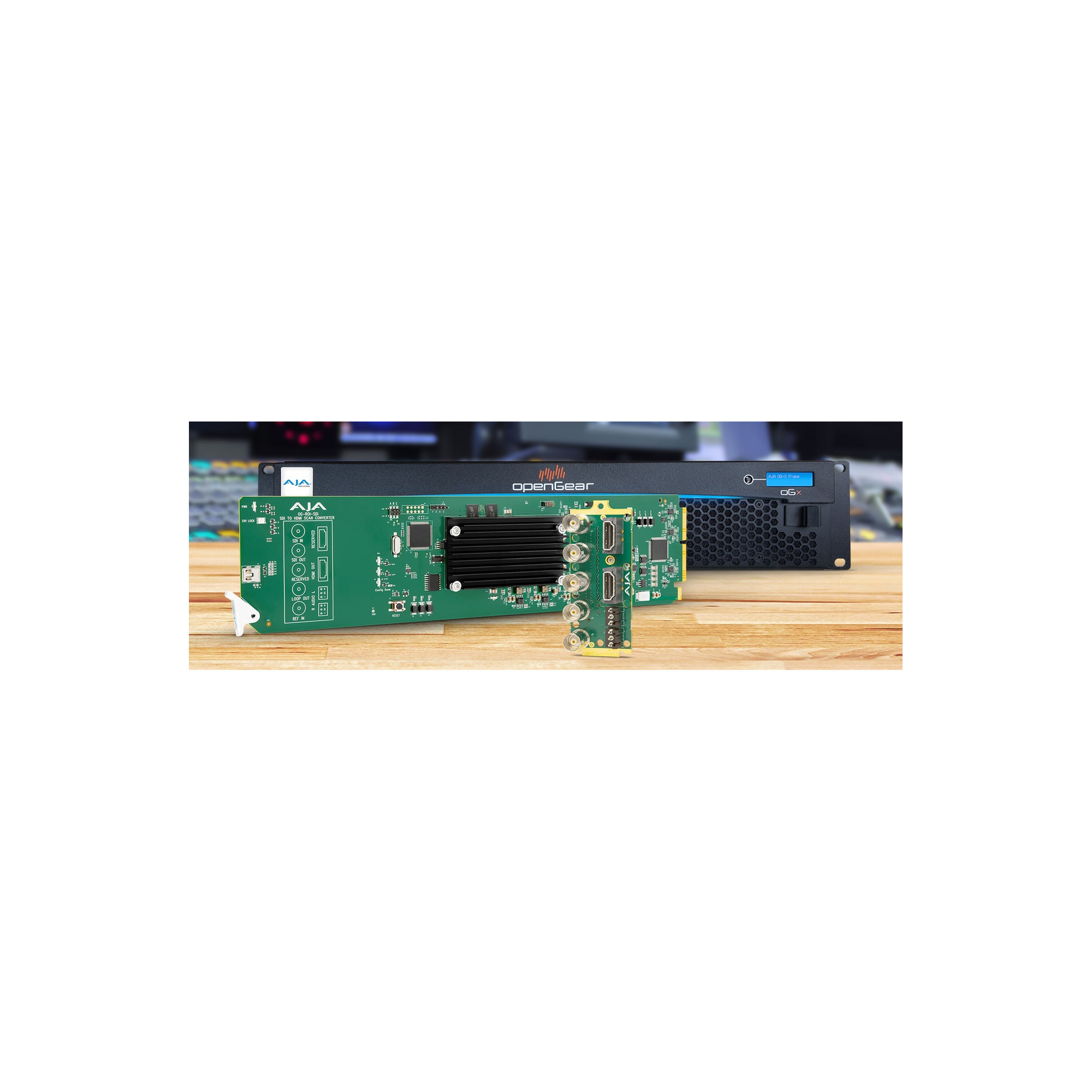

AJA's OG-ROI-SDI is an openGear card that allows exceptionally high-quality scan conversion of SDI inputs to 3G-SDI and HDMI baseband video outputs. With incredible region-of-interest image scaling as well as aspect ratio and frame rate conversion, OG-ROI-SDI fulfills the growing need to properly incorporate extractions from 3G-SDI sources into 3G-SDI and HDMI feeds without sacrificing budget or space.


Features

Scan Converter
openGear compatible card
3G-SDI input with loop through
3G-SDI and HDMI 1.4 outputs
Supports SD, HD, and 3G formats (see Tech Specs for complete list)
Region of Interest Scaling
Up, down, cross-conversion
Aspect ratio conversion
Frame rate conversion
Image H/V flip and 90 degree rotation
Supports 8-channels of embedded audio
2-channel analog audio output of disembedded audio (2x 3-Pin Terminal Block connectors included)
Sync reference selection (External, openGear frame, or Free-run)
Remote control over Ethernet using DashBoard network control software
Hot-swappable
Compatible with DFR-8321, OG3 and OGX openGear frames
Five year warranty
