Onyx 24

Mixer
Number of Analog Input Channels: 24 (14 Mono / 5 Stereo)
Number of Mic Preamps: 18
Analog Output Channels
2 x Stereo Master Output
2 x Stereo Control Room/Monitor Output
2 x Mono Aux Send Output
1 x Mono FX Send Output
1 x Stereo Headphone Output
Mix Routing:
1 x Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup
Faders & Level Adjustment
19 x 2.4" / 60 mm Channel Fader
1 x 2.4" / 60 mm FX Fader
2 x 2.4" / 60 mm Bus/Subgroup Fader
1 x 2.4" / 60 mm Master Fader
Meters
Main Meter:
2 x 12-Segment LED
Meter Range -30 dB to +20 dB Peak/Clip
Built-In Amplifier
Gain/Trim Range: +60 dB
Input Pad: None
Input Polarity: None
Dynamic Processing: None
Sidechain Filters: None
EQ
3-Band Semi-Parametric (Mono Channels)
3-Band Shelving/Notch/Peak (Stereo Channels)
EQ Parameters
Mono Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 100 Hz to 8 kHz
Low: ±15 dB at 80 Hz
Stereo Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 2.5 kHz
Low: ±15 dB at 80 Hz
Filters
Input Channels:
1 x High-Pass: 100 Hz
Solo/Mute
Solo per Input Channel
Mute per Input Channel, Bus, FX Bus, Master
Channel Output/Source Monitoring: None
Built-In Effects: None
Digital Audio
Sample Rates: 96 kHz
Connectivity
Analog Inputs
18 x XLR 3-Pin Balanced Mic Input
14 x 1/4" TRS Balanced/Unbalanced Line Input
4 x 1/4" TRS Unbalanced Line Insert
2 x 1/4" TRS Balanced/Unbalanced Hi-Z Input
10 x 1/4" TRS Balanced/Unbalanced Stereo Line Input (4 Stereo Pairs)
1 x 1/4" TRS Footswitch Input
Analog Outputs:
2 x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)
2 x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair)
2 x 1/4" TRS Balanced/Unbalanced Stereo Monitor Output (1 Stereo Pair)
2 x 1/4" TRS Balanced/Unbalanced Mono Aux/Monitor Output
1 x 1/4" TRS Balanced/Unbalanced FX Send
Phantom Power: +48 V (Applied to All Inputs)
USB:
1 x USB-B (Audio Playback, Host Connection, Recording)
Power
AC Power I/O: 1 x IEC Input
Power Consumption: 55 W
Recording
Max Multitrack Recording: 24 Tracks
Media Support: SD
Physical
Rack Mountable: No
Dimensions: 25.2 x 14 x 4.5"/ 64 x 36 x 11.43 cm
Weight: 21.5 lb / 9.8 kg
Packaging Info
Package Weight: 24.96 lb/ 11.32 kg
Box Dimensions: 28.1 x 16.9 x 10"/ 71 x 43 x 25 cm

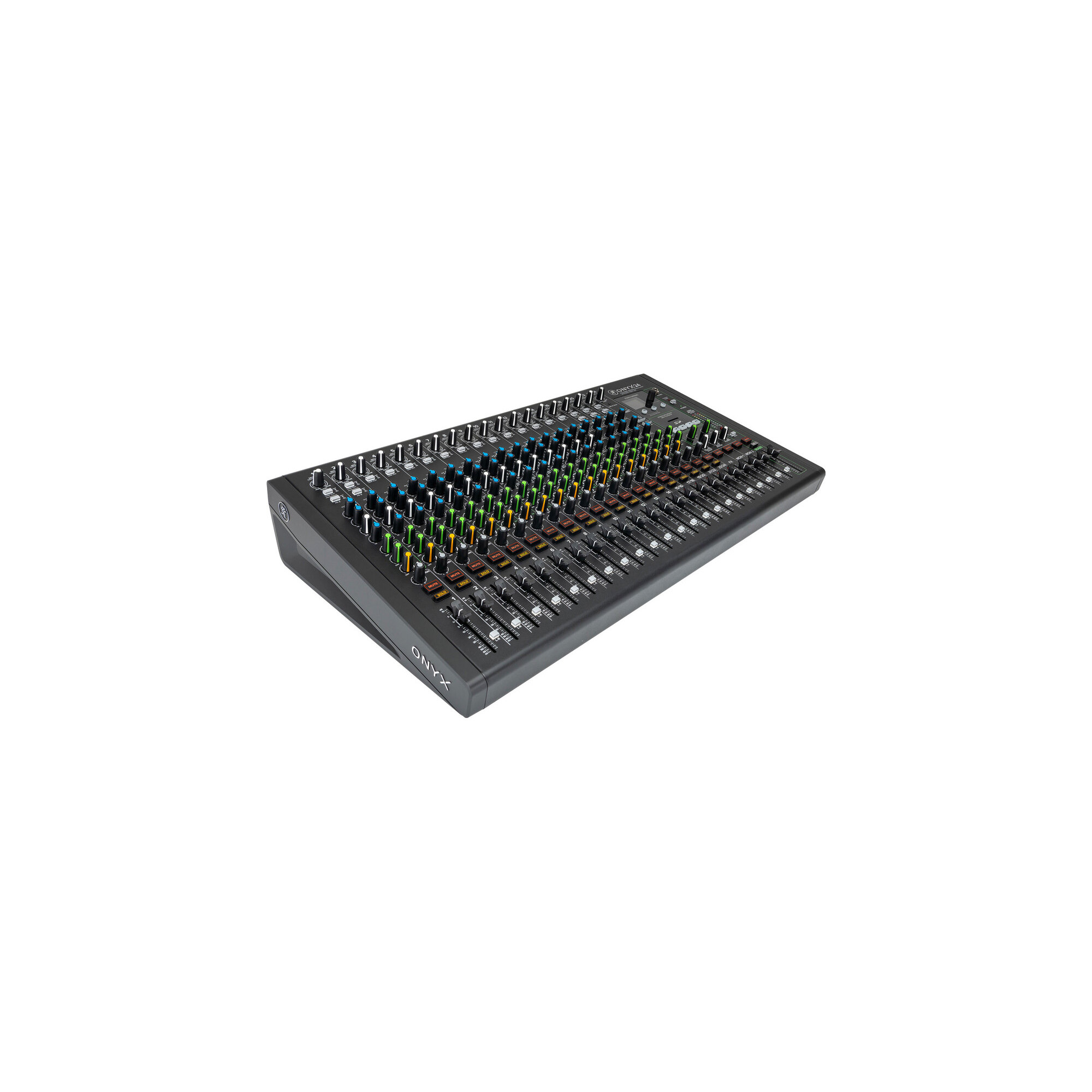

Mackie Onyx24 24-Channel Premium Analog Mixer with Multitrack USB
Power Cord
