WING RACK

Name: WING RACK
Brand: Behringer
SKU: WING RACK
Price: 2758043 NGN
Availability: OutOfStock

Behringer

48-Channel / 28-Bus Full-Stereo Digital Mixing Console (Pro Black, 4 RU)

go to the technical sheet

₦ 2,758,043.00

₦ 2,565,621.03 VAT excl.

Available in 14 days

Not sure if this is the right product for you? Talk to a consultant

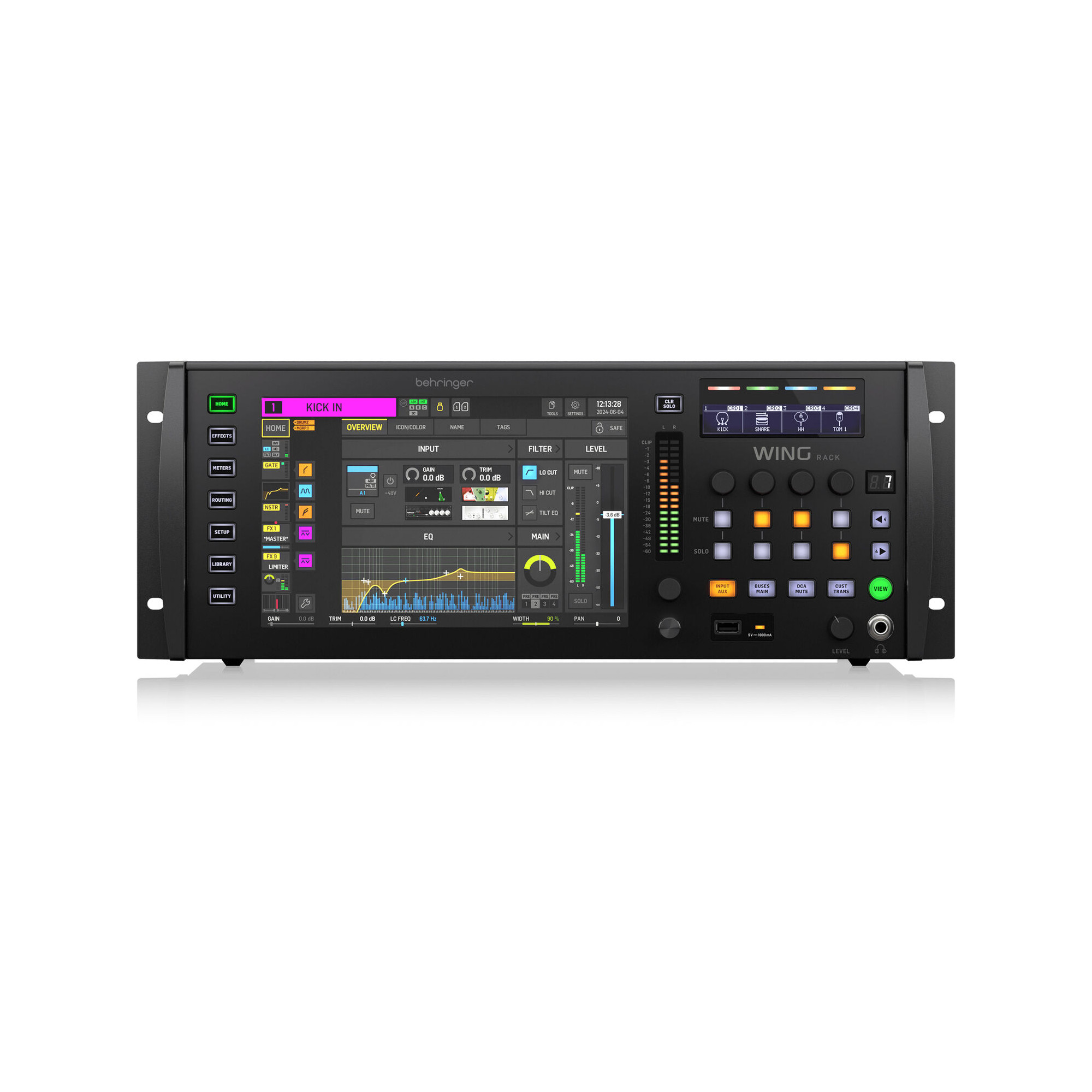

Behringer WING RACK 48-Channel / 28-Bus Full-Stereo Digital Mixing Console (Pro Black, 4 RU)

Elevate your production to a new level with the black Behringer WING RACK, a 4 RU, 40-channel, 28-bus full-stereo rackmount digital mixing console with a large, 10" capacitive touchscreen interface, and touch-sensitive rotary controls for a new ease of operation.
The mixer is highly customizable, thanks to the three separate fader sections and a Custom Control section that can be tailored easily and intuitively to meet your personal requirements.

Wing offers 24 Midas PRO mic preamps and features eight XLR outputs as well as five 1/4" TRS headphone outputs.
Thankfully, the number of I/O can be expanded with three AES50 SuperMAC ports, the StageCONNECT port, and optional expansion cards for audio interfaces, digital network bridges, MADI, and ADAT/WC.
There are five variable plug-in processing slots for all 40 stereo input channels.
Each slot can host plug-ins based on iconic vintage analog equalizers and compressors, plus insert FX slot and 4-band parametric EQ for all 8 stereo aux channels.

- Programmable MIDAS-Designed Mic Preamps
- Local I/O: 24 XLR Inputs + 8 XLR Outputs
- 5 x 1/4" Stereo Headphone Outputs
- 48x48 USB Audio Interface
- 64x64 Dual SD-Card Recorder
- 10.1" TFT Color Touchscreen Display
- 8 Buttons and 4 Encoders
- 4-Band EQ + 8 Virtual Stereo FX
- StageCONNECT Port for I/O Expansion

Mixer
Max I/O Capacity: 48x Input / 28x Output
Number of Analog Input Channels: 24 (24 Mono / 0 Stereo)
Number of Mic Preamps: 24
Number of Analog Output Channels: 8
Mix Routing: 28x Stereo Bus
Groups: No
Presets: No
Display:
- Main Display: 10.1" LCD Touchscreen (Daylight-Viewable)
- Channel Display: 2.4" LCD
Faders & Level Adjustment: No
Meters: 2x 18-Segment LED

Signal Processing
Gain/Trim Range: Mic: 0 dB to +72 dB
Input Polarity: Normal/Reverse
Dynamic Processing: Input Channels: Compressor, Limiter, Soft Limiter, Gate
EQ: 4-Band EQ
Graphic EQ: Yes
Solo/Mute:
- Solo, Mute per Input Channel
- Mute per Master
Audio Delay: Yes
Automatic Mic Mixing: No

Digital Audio
Sample Rates: Up to 192 kHz
Bit Depth: AD/DA Conversion: 24-Bit

Performance
Frequency Response: 10 Hz to 20 kHz +0/-1 dB (at 48 kHz)
Max Input Level: XLR Mic Input: +21 dBu
Analog Dynamic Range: 111 dB
Headphone Output Power: 500 mW per Channel into 75 Ohms
I/O Impedance:
XLR Mic Input
- 1 Kilohms (Unbalanced)
- 2 Kilohms (Balanced)
XLR Output: 75 Ohms (Balanced/Unbalanced)
Line Output
- 150 Ohms (Unbalanced)
- 300 Ohms (Balanced)
Noise Floor: -95 dBu A-Weighted
THD+N: Mic Input to Analog Output:
0.006% at +40 dB Gain (+20 dBu, Output)
0.004% at Unity Gain (0 dBu, Output)
Signal Generator: No

Connectivity
Analog Inputs:
- 8x XLR 3-Pin Balanced Mic/Line Input
- 8x 1/4" TRS Aux Input
Analog Outputs:
- 8x XLR 3-Pin Main/Bus Output
- 8x 1/4" TRS Stereo Aux/Headphone Output
- 2x 1/4" TRS Unbalanced Stereo Headphone Output
- 5x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power: +48 V (Selectable on Individual Inputs)
Digital I/O:
- 2x RJ45 Ethernet (Control, 1 Gb/s)
- 3x RJ45 AES50 (I/O)
- 1x XLR AES3 Input (I/O)
- 1x XLR AES3 Output
- 1x XLR Input/Output (I/O)
MIDI I/O:
- 1x MIDI 5-Pin In
- 1x MIDI 5-Pin Out
USB I/O: 1x USB-B 2.0 (Audio Playback, Control, Multitrack Record)
USB I/O Capacity: 48x Input / 48x Output
Other I/O: 2x 1/4" TRS GPIO In/Out
Expansion Ports: No
Wireless: No
External Display I/O: No
Max Multitrack Recording: 64 Tracks
Media Support: SD, SDHC

Power
Input Power: 100 to 240 VAC, 50 / 60 Hz

Physical
Rack Mountable: Yes
Rackmount Size: 4 U (with Included Hardware)
Dimensions: 19.1 x 12.8 x 7.2" / 48.5 x 32.5 x 18.3 cm
Weight: 20.9 lb / 9.5 kg
