IP8

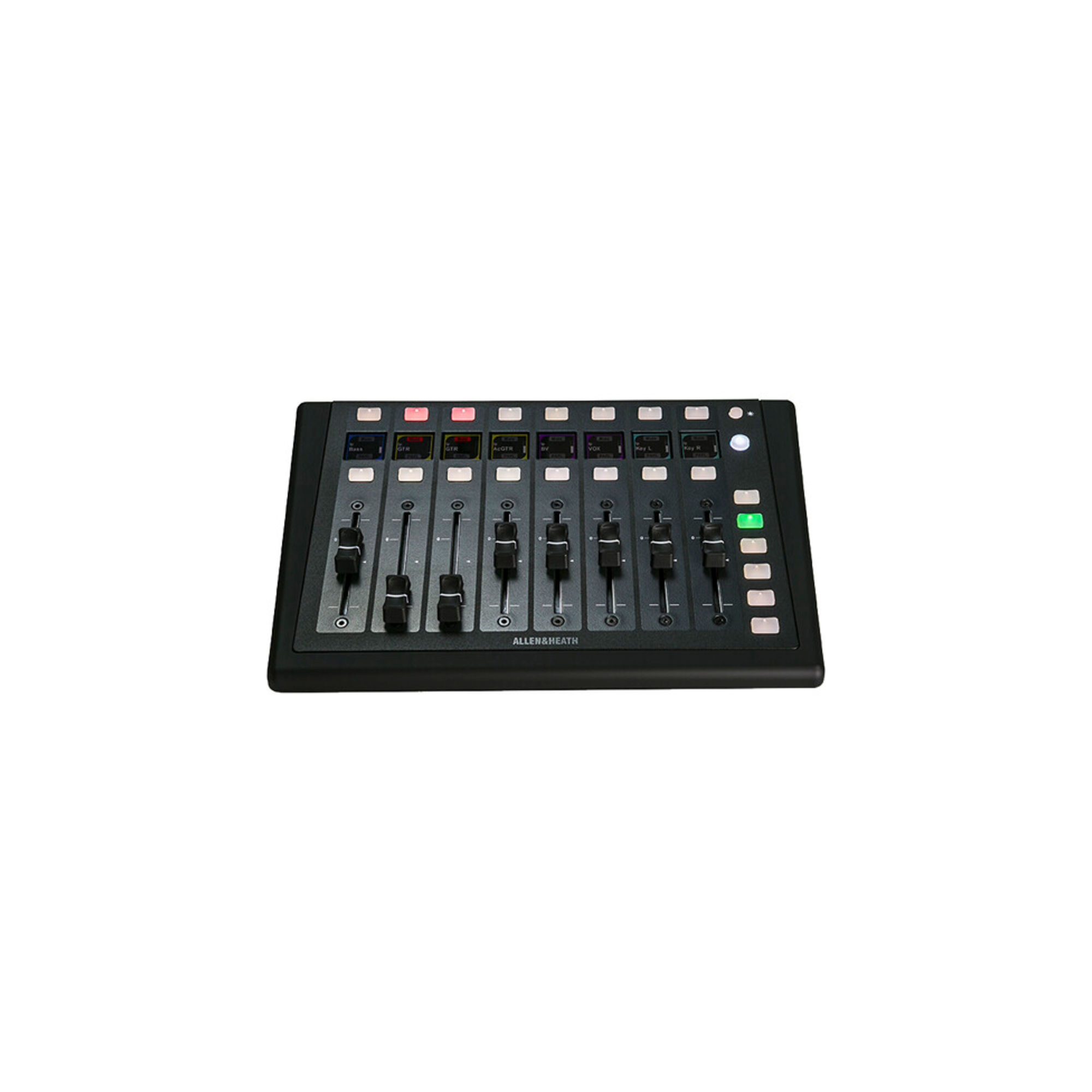

Allen-Heath Remote controller 8 motorized faders, compatible with dLive, Avantis and AHM series

The Allen & Heath IP8 is a compact and portable remote controller for AHM matrix processors or dLive and Avantis mixing systems - ideal for many install and live sound applications.
It features 8 motorized faders, 8 LCD displays, 23 backlit softkeys and a dimmable preset control for all displays.
The faders are fully assignable, configured individually, or part of a vertical strip.
There are 6 layers of control accessed via softkeys, allowing control of 48 individual channels.

Fast Ethernet connection is via a locking Neutrik EtherCon connector on the back panel.
The IP8 can be connected directly to the dLive Mixrack/Surface, Avantis mixer, or AHM-64 Matrix Processor via standard Cat 5 data infrastructure.
Alternatively, the controller can be networked with other controllers, computers, and third-party devices using an Ethernet switch.
The IP8 controls and functions are programmed using the AHM System Manager or dLive Director software (Mac/Windows), or via an Avantis mixer or dLive Surface.
The unit is powered by an external 12 VDC PSU or over Ethernet (PoE+).

Compatibility : dLive, Avantis, AHM-64

- For for AHM matrix processors or dLive and Avantis mixing systems
- Uses standard TCP/IP network connections
- 8 motorized faders
- 23 backlit softkeys
- 8 LCD displays
- 6 x layers of control
- PoE+ or external 12 VDC PSU (included)
- Use freestanding or mount in a plinth, podium, or furniture
- Optional wall-mount bracket (IP8-MOUNT)

° Surfaceless Mixing
Teamed up with a dLive MixRack and a laptop running Director software, IP8 is ideal for adding hands-on control to an ultracompact dLive setup, such as a monitor rig for fly-in dates.

° Surface Extender Application
The sound engineer can make use of all fader strips on a dLive Surface or Avantis mixer to control input channels, and to set up a "sidecar" IP8 to control master levels or FX sends/returns.

° Personal Monitoring Application
The IP8 can be configured to control the Send levels and assignments of multiple channels to a specific mix on the dLive, for example for wireless IEM use, giving musicians the freedom to control their own monitor sound.

° Installation Application
The installer or system integrator can configure the IP8 to provide the degree of control needed by the day-to-day operator, for example, the levels of microphones and music sources in a room.
