QU-5

Name: QU-5
Brand: Allen & Heath
SKU: QU-5
Price: 3782211.47 NGN
Availability: OutOfStock

Allen & Heath

36-Channel / 12-Bus Digital Mixer with 16+1 Motorized Faders

go to the technical sheet

₦ 3,782,211.47

₦ 3,518,336.25 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 378,221.15

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

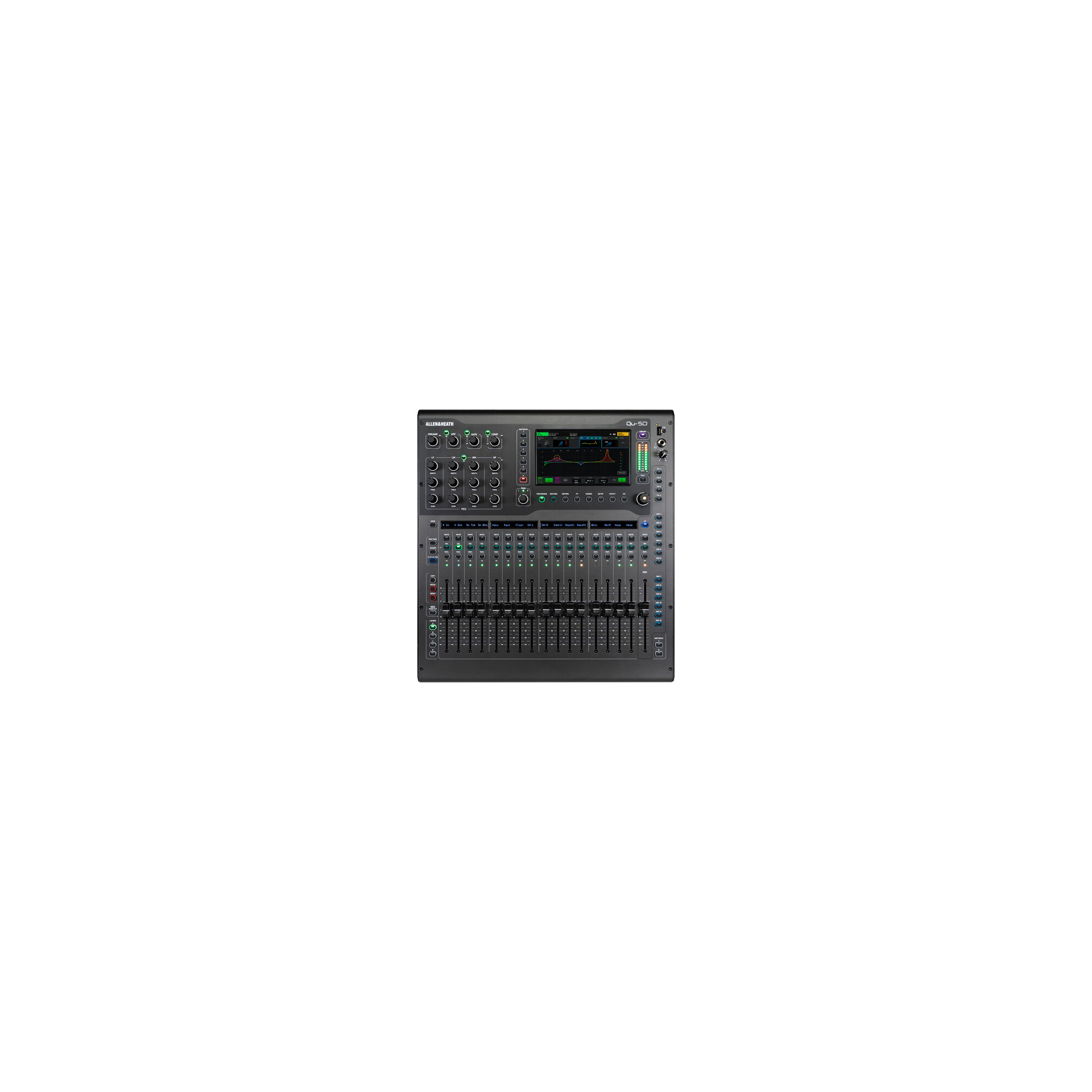

Allen & Heath Qu-5D 36-Channel / 12-Bus Digital Mixer with 16+1 Motorized Faders

Borrowing heavily from the popular Qu series, the Allen & Heath Qu-5D is a professional-grade digital mixer with powerful XCVI processing, updated FX, and Everything I/O connectivity.
There's also a 7" capacitive touchscreen, channel strip displays, customizable layers, extra SoftKeys, and SD-card recording.
The Qu-5D offers a channel count of 32 mono and two stereo channels for a total of 36 inputs and 6 mono/linkable aux, and 6 stereo aux/group.
The mixer is rack-mountable (rack ears optional) and combines high performance audio processing and professional features with ease of use and hands-on control.
The Qu-5D features a built-in 16x16 48/96 kHz Dante port for interoperability with other Dante enabled equipment.

- 16x16 48/96 kHz Dante Interface
- 16 Microphone Preamps
- 7" Capacitive Touchscreen
- 96 kHz FPGA Processing
- Six Stereo FX Engines with Returns
- 32x32 USB Audio Interface
- AES Output
- 12 XLR Outputs
- Eight Soft Keys
- Slink Port for Remote Audio & Expansion

Mixer
Max I/O Capacity: 36x Input / 12x Output
Number of Analog Input Channels: 18 (16 Mono / 2 Stereo)
Number of Mic Preamps: 16
Number of Analog Output Channels: 12
Mix Routing:
- 6x Mono Aux Send
- 6x Stereo Aux Send
Groups: 6x Subgroup
Presets: No
Display: 7" Touchscreen
Faders & Level Adjustment: 17x 3.9" / 100 mm Fader
Meters:
Main Meter: 2x 12-Segment LED
Channel Meter: Single LED

Signal Processing
Dynamic Processing:
- Input Channels: Compressor, Gate
- Master: Compressor, Limiter
EQ: Input Channels: 4-Band Parametric
Filters: High-Pass
Solo/Mute: Solo-in-Place/AFL, Mute, PFL per Input Channel, Bus, Master
Audio Delay: Adjustable Up to 682 ms
Automatic Mic Mixing: Yes

Digital Audio
Sample Rates:
96 kHz
AES3 Output:
44.1 / 48 / 88.2 / 96 kHz
Stereo Record:
96 kHz
Stereo Playback:
44.1 / 48 / 96 kHz
Multitrack Playback/Multitrack Record:
96 kHz
Bit Depth:
Up to 96-Bit
Stereo Record:
24-Bit
Stereo Playback:
16 / 24-Bit
Multitrack Playback, Multitrack Record:
24-Bit

Connectivity
Analog Inputs:
- 1x XLR Talkback Input
- 16x XLR Balanced Mic/Line Input
- 4x 1/4" TRS Balanced Channel Input (2 Stereo Pairs, Half-Normalled)
Analog Outputs:
- 12x XLR Balanced Output
- 2x 1/4" TRS Balanced Output
Phantom Power: +48 V
Digital I/O:
- 1x etherCON Input/Output (Network)
- 1x XLR AES3 Output
- 1x etherCON Dante Input/Output
MIDI I/O: No
USB I/O:
- 1x USB-A 2.0 (External Memory)
- 1x USB-C 2.0 (Audio Streaming)
USB I/O Capacity: 32x Input / 32x Output
Other I/O: 1x RJ45 Control In/Out (Bi-Directional)
Wireless: No
External Display I/O: No

Recording
Max Multitrack Recording: 32 Tracks
Media Support: SD, USB Drive
File Format Support: WAV

Compatibility
OS Compatibility:
- Computer: Windows 10 or Later / macOS 10.14 to 11
- Mobile: Android/iOS
Mobile Device Compatibility: Android Smartphone / Android Tablet / iPad / iPhone

Power
Input Power: 100 to 240 VAC, 50 / 60 Hz

Physical
Rack Mountable: Yes
Operating Conditions: 32 to 104°F / 0 to 40°C
Dimensions: 17.7 x 8.3 x 18.7" / 45 x 21.1 x 47.5 cm
Weight: 10 kg
