MY8SDI-ED

MY8SDI-ED

Yamaha

Mini YGDAI Card 8ch i/o HD/SD-SDI AES/EBU embedder / de-embedder, BNC
go to the technical sheet
  • New
₦ 7,410,797.86

₦ 6,893,765.45 VAT excl.

Volume discounts

Quantity Unit discount You Save
2 5% ₦ 741,079.79
Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

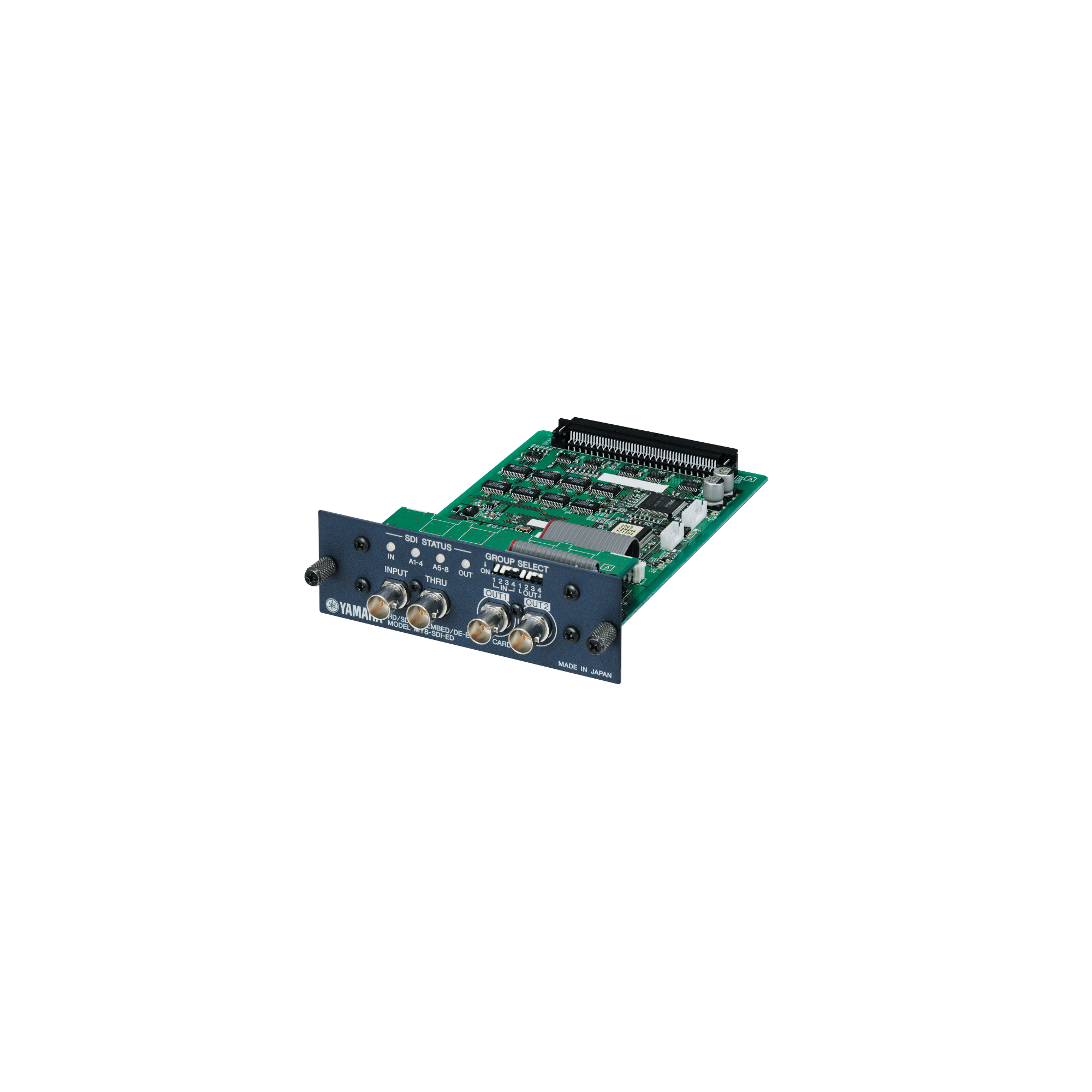

Yahama Mini YGDAI Card 8ch i/o HD/SD-SDI AES/EBU embedder / de-embedder, BNC

- 4 x BNC connectors: 1 x HD-/SD-SDI input, 2 x HD-/SD-SDI output (same signal), 1 x HD-/SD-SDI thru output (relocked)
- Can de-embed up to two of the 4 audio groups (4 channels per group: total 8 channels) embedded in a HD-SDI signal
- Can embed 2 audio groups into an HD-/SD-SDI signal for output
- LED audio status display


The MY8-SDI-ED is an HD-/SD-SDI Embed/De-embed card for compatible Yamaha digital mixing consoles and signal processors.

HD-SDI/SD-SDI I/O
HD-SDI I/O Signal: SMPTE 292M (1.485Gbps, 1.485/1.001Gbps)
SD-SDI I/O Signal: SMPTE 259M-C (270Mbps)
Resolution: 24bit
Frequency: 48kHz
Impedance: 75O
Connector:
- Input: 1 x BNC
- Output: 2 x BNC (same signal)
Lines: Selected 2 audio groups of 4 channels, total 8 channels

HD-SDI/SD-SDI Thru Output
SDI Output Signal: Reclocked thru output
Impedance: 75O
Connector: 1 x BNC

1x MY8SDI-ED
