SQ6X

Allen-Heath SQ6X Expandable digital mixer 48 inputs, 36 buses, 8 stereo FX, 8 mute groups, multichannel USB streaming, 96 khz S link (24 + 1) faders

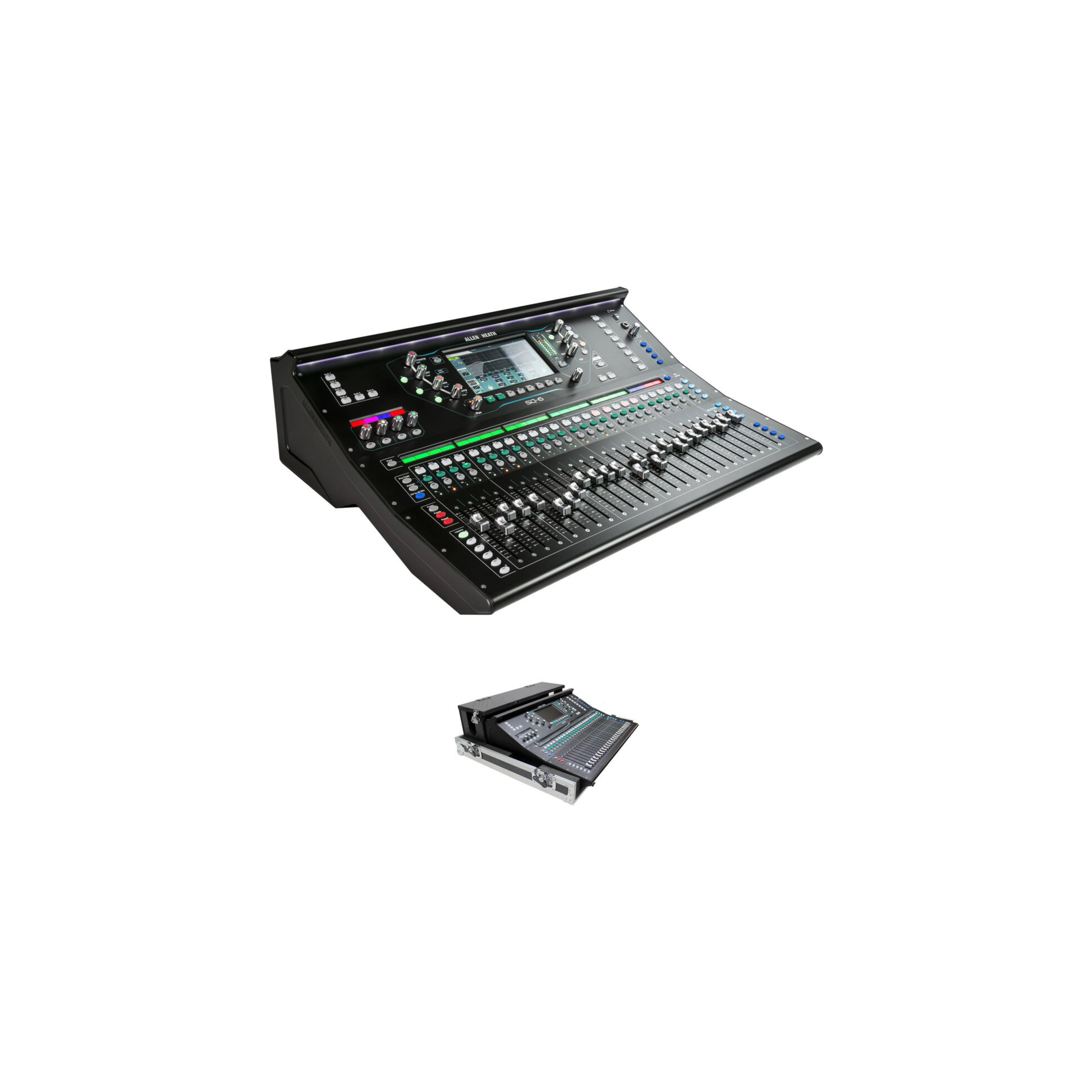

Bundled by B&H for your convenience, this Allen & Heath SQ-6 Mixer Kit gives you both a 48-channel, 36-bus digital mixer and an ATA-300-style gig-ready flight case to house, protect, and transport the mixer.
The mixer is a digital mixing console designed for live sound, corporate A/V purposes, recording studios, and houses of worship.
It offers 24+1 motorized faders, 24 mic preamps, eight stereo FX engines with dedicated return channels, and 12 stereo outputs that you can configure as groups or auxes.
The flight case, on the other hand, utilizes gig-ready 3/8" plywood and a high-density foam interior.
Reinforced steel-ball corners offer protection from wear and tear.
The case also sports four wheels as well as a doghouse that gives you space to keep accessories and cables hidden away.

° Allen & Heath SQ-6 48-Channel / 36-Bus Digital Mixer with 24+1 Motorized Faders
- Compact digital mixer for live, studio, and installation
- 48 input channels
- 24 local mic inputs (XLR)
- Two 1/4" stereo inputs (TRS)
- One 1/8" stereo input
- 36 total busses
- 12 stereo mixes (Aux or Group) + Main
- PAFL bus
- 16 assignable local outputs (14 XLR + two 1/4" TRS)
- AES digital output
- Dedicated talkback mic input (XLR)
- 1/4" TRS headphone out with dedicated control
- SLink EtherCON connection for remote audio using dSnake, DX, or gigaACE protocol (64x64 channels)
- I/O port for option card (including 3rd party protocols - Dante/Waves)
- 8 mute groups
- 8 DCA groups
- 8 stereo FX with dedicated FX returns
- DEEP processing ready
- RackFX effects suite
- 7" color touchscreen
- 16 assignable SoftKeys
- Four assignable soft rotaries
- Dedicated physical controls for channel processing (Gain, HPF Frequency, Gate Threshold, Compressor Threshold, Pan, EQ Gain/Frequency/Width)
- 24+1 faders with 6 layers for 96 assignable channel strips
- Motorized faders for sends on faders, GEQ fader flip, and mix recall
- 24 backlit LCD channel-strip displays
- Single-point metering
- Integrated surface illumination
- Single/dual footswitch control
- Input channel linking for stereo sources
- Patchable insert points
- Input processing - Preamp, HPF, Gate, PEQ, Compressor, Delay
- Output processing - PEQ, Graphic EQ, Compressor, Delay
- Automatic mic mixing
- 31-band, real-time analyzer (RTA)
- Quick copy/paste/reset for parameters
- User permissions to restrict operator access
- 300 scene memories per show
- Channel safes, global and per-scene recall filters
- FX, processing, and channel libraries
- SQ-Drive for stereo and multitrack recording/playback direct to USB drive
- USB transfer of scenes, libraries, shows
- 32x32 channel USB streaming to/from Mac/Windows
- DAW control driver for MIDI control via USB or TCP/IP
- Wireless remote mixing apps for iPad and Android
- Compatible with ME personal-monitoring range

° ProX SQ6 Console Flight Case with Doghouse and Wheels
- Standard style, silver trim on black honeycomb digital exterior design
- ATA-300 style gig ready flight road case
- Signature series certified laminated gig ready 3/8" plywood
- High-density foam interior support and casing
- Recessed spring-action recessed handles
- Industrial heavy duty and powerful steel ball corners
- Four 4" tough durable casters rubber wheels for mobility (two are locking)
- Dual anchor rivets
- Easy locking fit aluminum tongue and groove
- Industrial recessed butterfly twist-lock latches
- Industrial grade rubber feet
- With doghouse
- All Foam padding made from 85% recycled materials
