Dlive-S5000

Name: Dlive-S5000
Brand: Allen & Heath
SKU: Dlive-S5000
Price: 43930376 NGN
Availability: OutOfStock

Allen & Heath

EAN: 6938122242265

Digital mixer with 28 faders on 6 levels, dual 12" touchscreen, 2x IO cards

go to the technical sheet

₦ 43,930,376.00

₦ 40,865,466.40 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

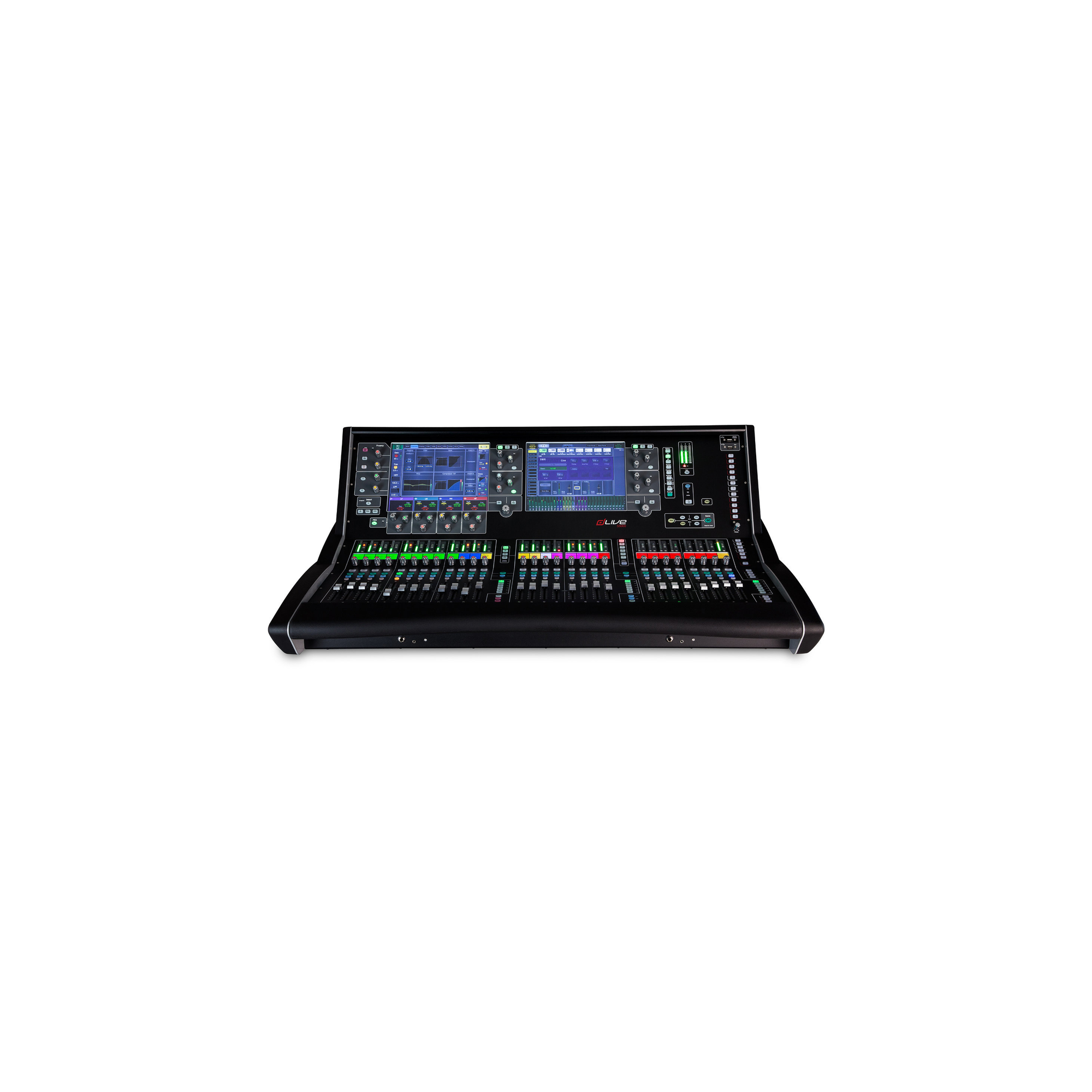

Allen-Heath Dlive S5000 Surface 28 fader 2 screen S series. Requires a Mixrack (CDM or DM) to operate, 6 layers, 2 x 12" screens, 8in XLR, 2in AES, 8out XLR, 3out AES, 2 IO card slots, GigaACE port with redundancy, 1 x Rx port with redundancy, VGA socket, 26 softkeys, optional 2nd power supply

A dLive Surface is the most popular way to control a dLive MixRack.
With seven models available, from the airline-friendly CTi1500 to the 36-fader S7000, there's a Surface for every application.

S Class Surfaces
- gigaACE link to MixRack (dual redundant)
- DX link for I/O expansion (dual redundant)
- 2 I/O Ports - 128ch 96kHz each
- 2 Network ports
- Wordclock BNC I/O
- Video output
- 8 Mic/line inputs
- 8 Line outputs
- 2 Digital st AES3 input
- 3 Digital st AES3 output
- Dedicated Preamp & Filter controls
- 26 Assignable SoftKeys
- Hot-swappable PSU (dual redundant option)

Speed Up Your Workflow
With a fully customisable layout that allows you to build an interface that reflects your workflow and mixing style, dLive lets you focus on the mix, not the mixer.
Every input or mix can be assigned to any and every fader bank and/or layer, virtual scribble strips allow inputs and mixes to be clearly named and colour coded for at-a-glance navigation, and a wealth of assignable SoftKeys and 3 pages of 6 assignable rotaries per screen.
Bespoke ‘widget' areas can also be set up on the touchscreens to keep track of scenes, meters, RTA, FX and other custom controls.

Inputs
___________________________
Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
Mic/Line Preamp: Fully recallable
Input Sensitivity: -60 to +15dBu
Analogue Gain: +5 to +60dB, 1dB steps
Pad: -20dB Active PAD
Maximum Input Level: +30dBu (PAD in)
Input Impedance: >4kOmega (Pad out), >10kOmega (Pad in)
Mic EIN: -127dB with 150Omega source
Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at 24V
Digatl Inputs:
- AES3 2 Ch XLR, 2.5Vpp balanced terminated 110Omega
- SRC on each pair, range 32K-192lHz, with bypass option

Outputs
___________________________
Analogue XLR Outputs: Balanced, Relay protected
Output Impedance: <75Omega
Nominal Output: +4dBu = 0dB meter reading
Maximum Output Level: +22dBu
Residual Output Noise: -92dBu (muted, 20-20kHz) | -90dBu (muted, 20-40kHz)
Digital Outputs:
- AES3 2 Ch XLR, 2.5Vpp balanced terminated 110Omega
- 96kHz sampling rate, switchable to 48kHz, 44.1kHz

System
___________________________
Measured balanced XLR in to XLR out, 20-20kHz, minumum Gain, Pad out
Dynamic Range: 110dB
System Signal to Noise: -92dB
Frequency Response: 20Hz - 30kHz +0/-0.8dB
THD+N (analogue in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
Headroom: +18dB
Internal operating Level: 0dBu
dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
Meter Peak indication: -3dBFS (+19dBu at XLR out)
Sampling Rate: 96kHz +/- 20 PPM
ADC: 24-bit Delta-Sigma
DAC: 24-bit Delta-Sigma
Latency: 0.7 ms (MixRack XLR in to XLR out, Input to Mix) | +5 samples, Surface to Mixrack (GigaACE hop) | +8 samples, DX32 to Mixrack (DXhop)
Operating Temperature Range:
MPS16 V1 300w: 0°C to 35°C (32°F to 95°F)
MPS16 V2 250w: 0°C to 40°C (32°F to 104°F)
Mains Voltage Operating Range: 100-240V AC, 50/60Hz
Mains Power: 300W max (MPS16 V1 300W)
Consumption: 250W max (MPS16 V2 250W)

Dimensions and Weight
___________________________
Width x Depth x Height x Weight : 1115 x 728 x 413 mm (43.9"x 28.7"x 16.3") x 35kg (77lbs)
Boxed Width x Depth x Height x Weight: 1290 x 920 x 560 mm (50.8"x 36.2"x 22") x 50kg (110.2lbs)
