Tascam

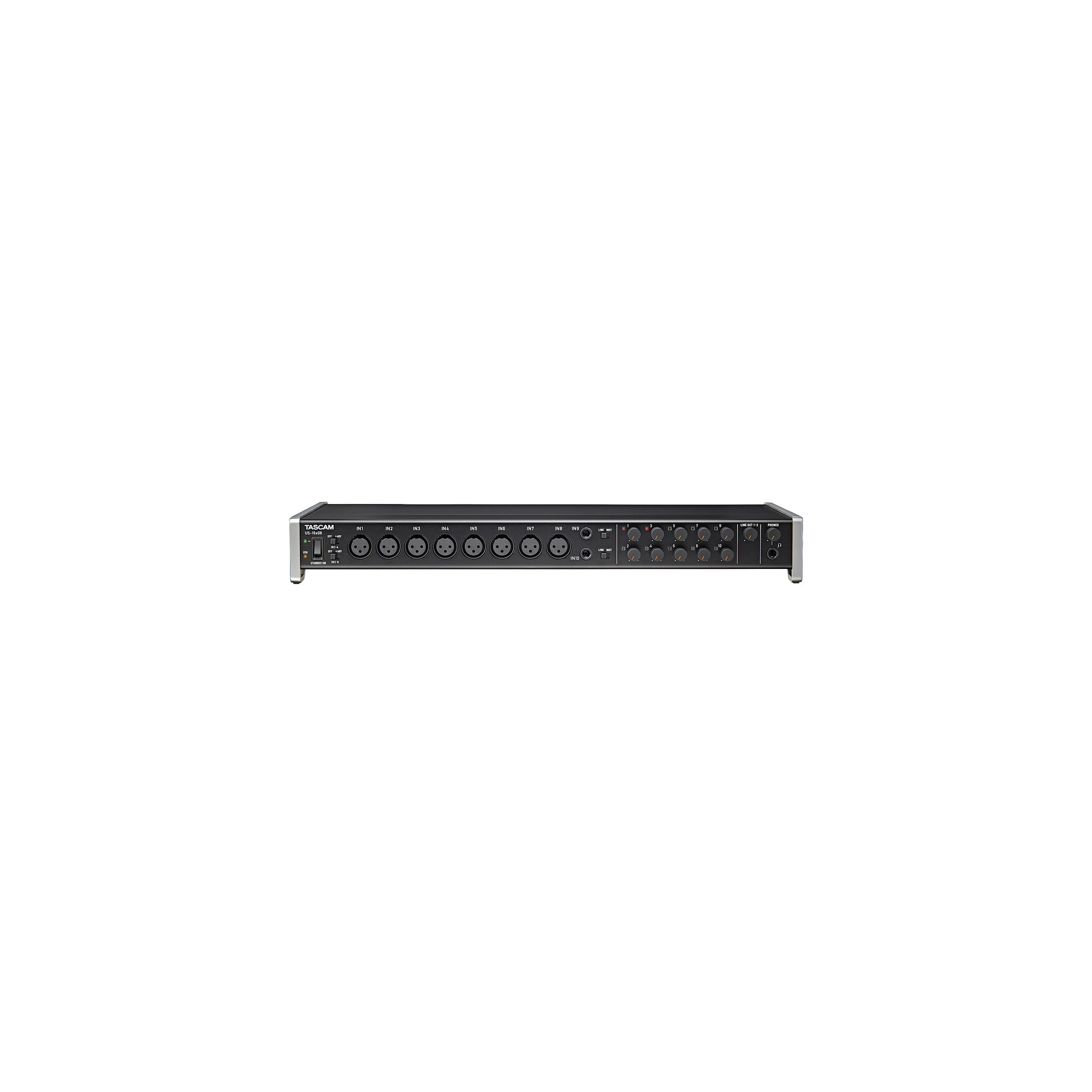

16in-8out USB Audio/MIDI Interface. Tascam US-16x08
go to the technical sheet
€ 387,12

€ 360,11 VAT excl.

Available in 11 days
Not sure if this is the right product for you? Talk to a consultant
Allowing you to record up to 16 channels simultaneously in up to 24-bit/96 kHz resolution, the US-16x08 USB Audio/MIDI Interface from Tascam features 8 XLR microphone inputs with their Ultra-HDDA preamps and 8 TRS line level inputs, 2 of which can be switched to instrument level for DI recording. A DSP mixer allows you to route any signal to any output and gives you a 4-band EQ and compression for each channel, allowing you to tweak a monitor or headphone mix.

Its angled design allows you to use the US-16x08 right on your desktop, while the included rack ears provide the ability to rack mount the system. Not limited to audio, its 5-pin DIN MIDI I/O lets the unit function as a MIDI interface as well. It is compatible with Mac, Windows, and iOS (requires Apple's Camera Connection kit, not included for iOS use).


USB
Connector USB B type, 4 pin
Format USB 2.0 HIGH SPEED mass storage class
Power
Power Dedicated AC adapter
Power Consumption 12 W
Audio
Frequency Response Line Output (Balanced):
44.1/48 kHz: 20 Hz to 20 kHz, +/-0.3 dB (JEITA)
88.2/96 kHz: 20 Hz to 40 kHz, +/-0.3 dB(JEITA)
THD 0.008 % or less
S/N Ratio 100 dB or more
Crosstalk 100 dB or more
EIN -125 dBu or less
System Requirements
Windows OS: Windows 7 (32-bit SP1, 64-bit SP1), Windows 8.0 (32-bit, 64-bit), Windows 8.1 (32-bit, 64-bit)
Computer Compatibility: Windows compatible computer with a USB 2.0 port
CPU Type/Speed: Dual core/2 GHz or faster
Memory: 2 GB or more
Driver: ASIO 2.0, WDM (MME)
Mac OS: OS X 10.9, OS X 10.9
Compatible Computers: Apple Mac with USB 2.0 port
CPU Type/Speed: Dual core/2 GHz or faster
Memory: 2 GB or more
Driver: Core Audio, Core MIDI
iOS iOS 7
General
Operating Temperature 41 to 95°F (5 to 35°C)
Dimensions (W x H x D) 17.5 x 2.3 x 8.6" (445 x 59 x 219 mm)
Weight 6.1 lb (2.8 kg)
