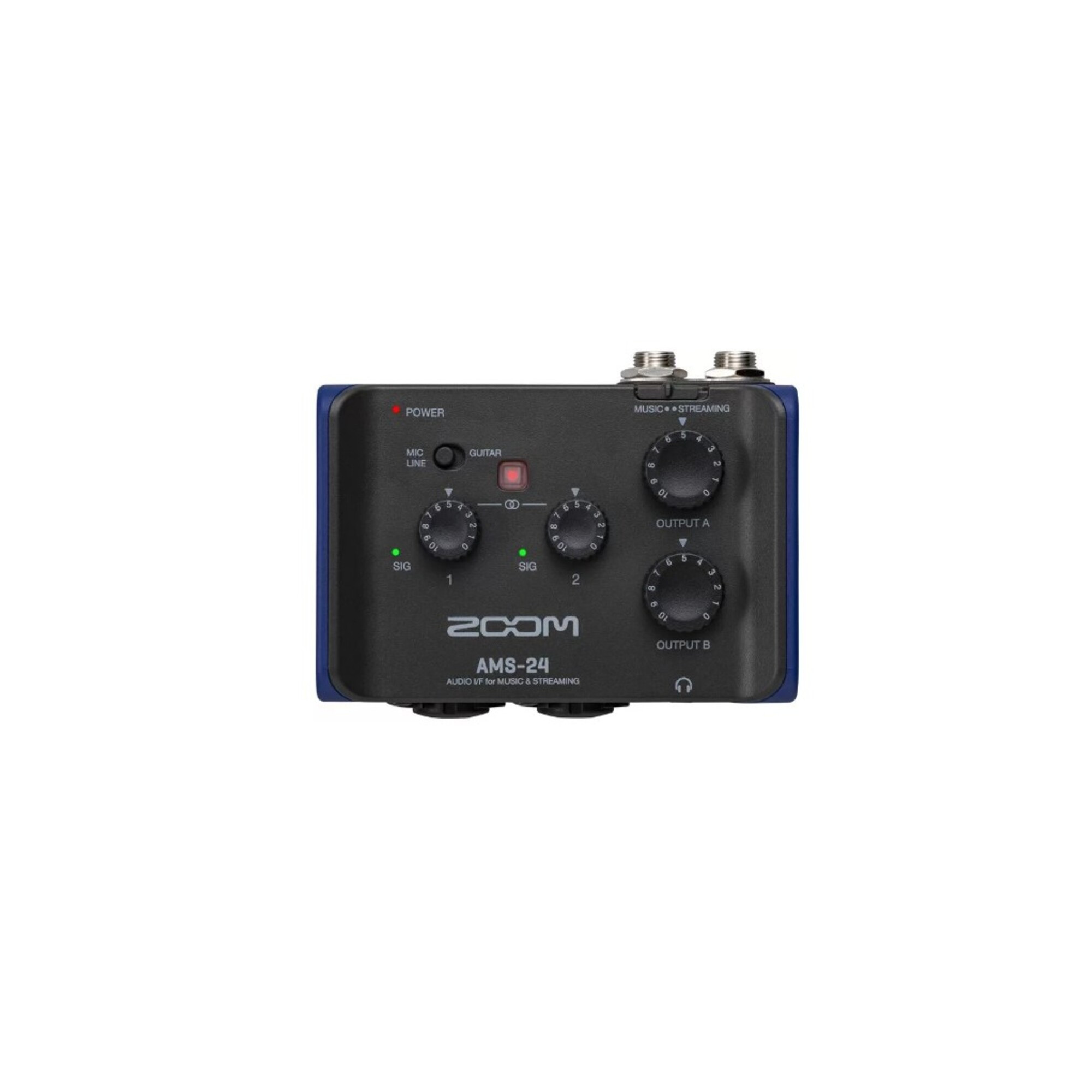

AMS-24

Name: AMS-24
Brand: Zoom
SKU: AMS-24
Price: 141.69 EUR
Availability: InStock

Zoom

EAN: 4515260025947

Audio interface for recording and streaming

go to the technical sheet

€ 141,69

€ 131,80 VAT excl.

Available 2 unit in 4 Days

Not sure if this is the right product for you? Talk to a consultant

Compatible with all computers and smartphones, AMS audio interfaces are known to all content creators, who want to record as much as they want to stream live, in total simplicity. The AMS-24 and 44 have two modes: MUSIC, which allows recording to separate tracks, and STREAMING, which mixes the different inputs together. The latter therefore offers an output mix directly usable on your favorite streaming platforms, such as Youtube or Twitch. Ultra-portable, AMS interfaces are USB-Powered, but they can be powered by batteries or external power supplies to ensure adequate autonomy for use with iOS or Android smartphones

Wired microphones

-2.5%

Neumann

TLM 49

-2.5%

€1.358,52 € 1.324,56 VAT included

Available in 14 days

-2.5%

Neumann

KM185

-2.5%

€1.825,35 € 1.779,72 VAT included

Available in 14 days

Input and Output Channels
NUMBER OF INPUT CHANNELS
Mono (MIC/LINE): 2
NUMBER OF OUTPUT CHANNELS
Stereo (TRS): 1
Stereo (PHONES): 2
Connectors
INPUT 1-2
Type: XLR/TRS combo jacks
(XLR: 2 HOT, TRS: TIP HOT)
Input gain:
+58 dB / -8 - +50 dB (when set to GUITAR)
Input impedance
XLR: 2.7 kO
TRS: 18 kO / 330 kO (when set to GUITAR)
Maximum input level
XLR: +6 dBu
TRS: +22 dBu / +8.5 dBu (when set to GUITAR)
Phantom: +48 V
OUTPUT A (STANDARD PHONE JACKS)
Type: TRS phone jacks (impedance balanced)
Maximum output level: +10 dBu (at 0 dBFS)
Output impedance: 100 O
OUTPUT A-B (HEADPHONE JACKS)
Type:
3.5mm stereo mini jacks
30 mW + 30 mW (32 O load)
Output impedance: 10 O
USB
USB Type-C (audio interface function)
Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V: USB Type-C (for power supply)

Frequency Response
44.1 kHz: ±1 dB (20 Hz - 20 kHz)
96 kHz: ±1.5 dB (20 Hz - 40 kHz)
Equivalent Input Noise
-120 dBu or less (IHF-A) at +58dB/150O input
Audio Interface
INPUT AND OUTPUT CHANNELS
Recording: 2 channels
Playback: 4 channels
SAMPLING FREQUENCIES: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
BIT DEPTH: 24-bit
INTERFACE: USB 2.0
CLASS
USB Audio Class 2.0
Power
2 AA batteries (alkaline, lithium, or rechargeable NiMH)
AC adapter (ZOOM AD-17): DC 5 V/1A
• USB bus power is supported.
Rated Current
USB/AC
adapter (5 V): 380 mA
Batteries (2.4 V): 470 mA
Estimated continuous operation time using batteries
44.1 kHz, 48 V off, with 32O headphone load
Alkaline batteries: about 4 hours
NiMH batteries (1900 mAh): about 5.5 hours
Lithium batteries: about 11 hours
• The above values are approximate.
• Continuous battery operation times were determined using in-house testing methods. They could vary greatly according to use conditions.
Power Consumption: 5 W maximum
Dimensions: 94.5 mm (W) × 74.0 mm (D) × 46.0 mm (H)
Weight (unit only): 134 g
Weight (including batteries): 180 g
