iD44

Name: iD44
Brand: Audient
SKU: iD44
Price: 574.51 EUR
Availability: InStock

Audient

Desktop 20x24 USB Type-C Audio Interface

go to the technical sheet

€ 574,51

€ 534,43 VAT excl.

Available 1 unit in 4 Days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

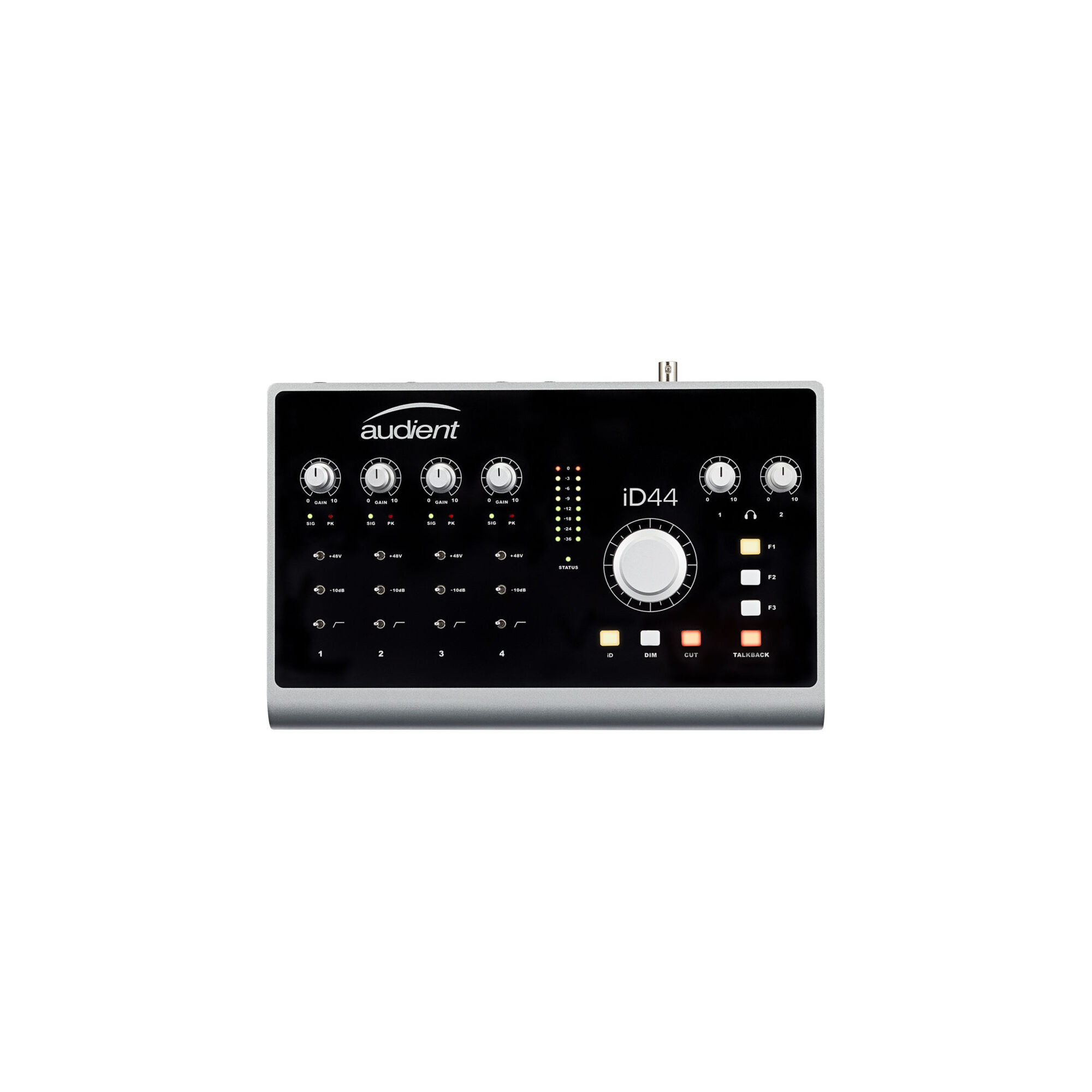

Simplify the recording process and attain the audio performance of a large-format console in an elegant and extremely capable desktop package with the Audient iD44, a high-performance 20x24 USB audio interface designed by respected experts for musicians, producers, bands, and project studio engineers.

The iD44 boasts four of the same Class-A mic preamps found in Audient's world-class consoles, ensuring gold-star treatment for your dynamic or phantom-powered condenser microphones. Two harmonically rich JFET 1/4" instrument inputs are also provided, so you can plug your guitar and bass directly into the interface and get the character of valve amplifiers. Each analog input channel offers switches for 48V phantom power, a -10 dB pad, and a high-pass filter, much like a traditional recording console.

Outfitted with 24-bit / 96 kHz Burr-Brown AD/DA converters, the iD44 delivers premium accuracy while remaining natural and musical, devoid of problems caused by distortion and unstable clocking. The inclusion of two TOSLINK optical input ports enables expansion for up to 16 more recording channels via ADAT-equipped external mic preamps or A/D converters. Use the TOSLINK optical outputs to feed as many as 16 tracks to a digital mixing console, a multichannel headphone distribution system, or high-end outboard D/A converters. Thanks to the BNC wordclock output, the iD44 may be used as a clock reference for other digital equipment in your studio.

With stereo 1/4" main and alt monitor outputs, two independent Class-AB headphone outputs, and comprehensive console-style monitor control, the iD44 acts as the ideal hub for your entire monitoring system while letting you listen to your content in high quality, smoothly adjust your levels, and access dim, cut, mono sum, and more. Plus, there's the revolutionary ScrollControl, a function that can be used to control anything over which your mouse pointer hovers.

DAW software, virtual instruments, samples, cabinet simulation, and more are included to get you started on your path toward achieving polished productions. The iD44 connects to your Mac/Windows host computer via USB (Type-C and Type-A cables are supplied), and it includes a 12 VDC power supply to provide reliable power for its premium circuitry.

Audient ID44 Specs
Form Factor Tabletop
Display 2 x Multi-Segment LED Meter
Channels of I/O Analog:
4 Inputs / 8 Outputs at 96 kHz
ADAT:
16 Inputs / 16 Outputs at 48 kHz
Max Sample Rate/Resolution 96 kHz / 24-Bit
Number of Mic Preamps 4
Input Level Adjustment 4 x Knob
Solo/Mute Mute per Master
Pad -10 dB (Switchable per Channel)
High-Pass Filter 100 Hz, 12 dB/Octave
Expansion Slots None
Connectivity
Analog Audio I/O 4 x Combo XLR-1/4" TRS Balanced Mic/Line Input
2 x 1/4" TS Unbalanced Hi-Z Input
4 x 1/4" TRS Balanced Line Output
2 x 1/4" TRS Unbalanced Headphone Output
2 x 1/4" TRS Balanced Insert Send
2 x 1/4" TRS Balanced Insert Return
Phantom Power +48 V ± 4 V (Selectable on Individual Inputs)
Phantom Power Current 10 mA per Channel
Digital Audio I/O 2 x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support)
2 x TOSLINK Optical ADAT / S/PDIF Output (S/MUX Support)
Host Connection / USB 1 x USB Type-C (USB 2.0)
USB (Non-Host) None
Network I/O None
Sync I/O 1 x BNC Word Clock Output
MIDI I/O None
Wireless Connectivity None
Memory Card Slot None
Performance
Frequency Response Mic, Line Inputs:
10 Hz to 65 kHz ±0.5 dB
Hi-Z Inputs:
10 Hz to 50 kHz ±0.5 dB
AD/DA Converters:
10 Hz to fs/2 ±0.5 dB
Headphone Outputs:
10 Hz to fs/2 ±0.5 dB
Gain/Trim Range Mic/Hi-Z Inputs:
0 to +60 dB
Line Inputs:
-10 to +50 dB
Max Input Level Mic Inputs:
+18 dBu
+28 dBu (with Pad)
Hi-Z Inputs:
+10 dBu
Insert Return:
+18 dBu
Max Output Level Line Outputs:
+18 dBu
Insert Send:
+18 dBu
Headphone Outputs:
+14 dBu
Headphone Output Power 225 mW into 30 Ohms
210 mW into 60 Ohms
54 mW into 600 Ohms
Dynamic Range A/D Converters:
121 dB (A-Weighted)
D/A Converters:
126 dB (A-Weighted)
Headphone Outputs:
124 dB (A-Weighted)
Impedance Mic Inputs:
> 3 Kilohms (Balanced)
Line Inputs:
> 10 Kilohms (Balanced)
Hi-Z Inputs:
1 Megohm (Unbalanced)
Insert Return:
> 10 Kilohms (Balanced)
Insert Send:
< 100 Ohms (Balanced)
D/A Converters:
< 100 Ohms (Balanced)
Headphone Outputs:
< 50 Ohms (Balanced)
THD+N Mic Inputs:
-96 dBu / 0.003% (1 kHz)
Hi-Z Inputs:
< 0.03% (1 kHz)
A/D Converters:
-103 dB / 0.0008% (1 kHz, at -1 dBFS)
D/A Converters:
-104 dB / 0.0006% (1 kHz, at -1 dBFS)
Headphone Outputs:
-103 dB / 0.0008% (1 kHz, at -1 dBFS)
SNR Mic Inputs:
96 dB
Hi-Z Inputs:
95 dB
EIN Mic Inputs:
-126 dBu
CMRR Mic Inputs:
> 80 dB (1 kHz)
Crosstalk Mic Inputs:
< -90 dBu (1 kHz)
A/D Converters:
-115 dBu (1 kHz)
D/A Converters:
-118 dBu (1 kHz)
Headphone Outputs:
-110 dBu (1 kHz)
Digital Audio
dBFS Reference Level +18 dBu = 0 dBFS
Sample Rates Up to 96 kHz
Sample Rate Conversion None
Bit Depths 24-Bit
Latency 5.6 ms at 44.1 kHz (Dependent on Buffer Size, Input to Output)
4.2 ms at 96 kHz (Dependent on Buffer Size, Input to Output)
Sync Sources ADAT, Internal, S/PDIF
Compatibility
OS Compatibility macOS 10.7.5 or Later
Windows 7 or Later (32-Bit, 64-Bit)
Compatible Software (Not Included) Any Core Audio (Mac) Compliant Software
Included Software Cubase LE
Supported Drivers/API Proprietary
Processor Requirement Mac:
Intel
PC:
1.6 GHz Intel Core 2
AMD
RAM Requirements 1 GB
Mobile Device Compatibility None
Required Hardware Available USB 2.0 Port
USB Cable (Included)
Internet Connection Required for Registration, Software/Driver Download
Power
Power Requirements AC/DC Power Adapter (Included)
Rail Voltage Analog:
±15 V
AC Input Power 90 to 264 VAC, 50 / 60 Hz
AC/DC Power Adapter 12 VAC at 2 A, Center-Positive (Included)
Physical
Anti-Theft Features Kensington Security Slot
Dimensions 10.9 x 6.9 x 2" / 27.6 x 17.4 x 5.1 cm
Weight 4.0 lb / 1.8 kg
Packaging Info
Package Weight 5.67 lb
Box Dimensions (LxWxH) 14.5 x 9.6 x 4.6"
