iD14

Name: iD14
Brand: Audient
SKU: iD14
Price: 245.62 EUR
Availability: OutOfStock

Audient

Desktop 10x4 USB Audio Interface

go to the technical sheet

€ 245,62

€ 228,48 VAT excl.

Available in 19 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

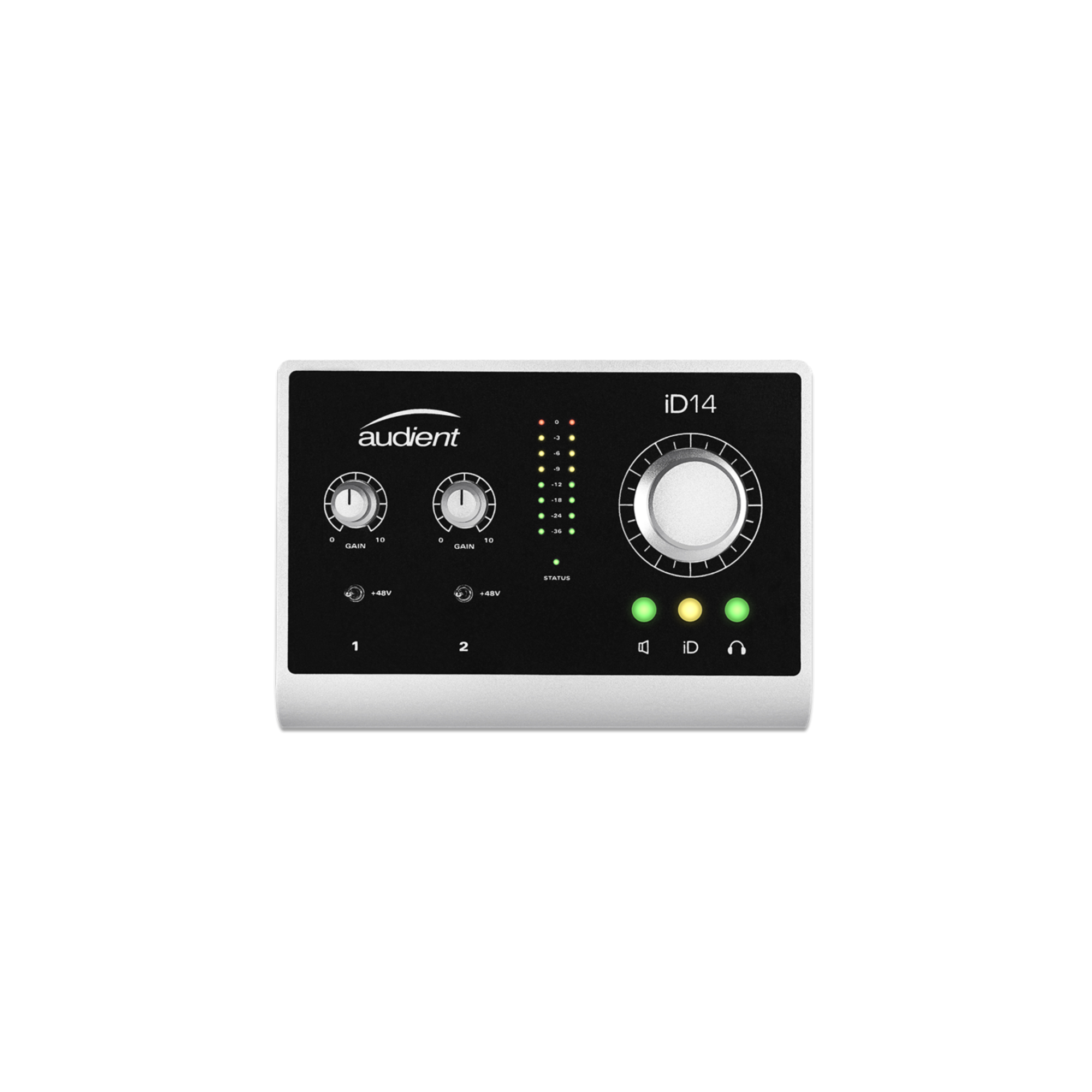

Simplify the recording process and attain the audio performance of a large-format console in a compact and elegant desktop package with the Audient iD14, a high-performance 10x4 USB audio interface designed by respected experts for musicians, producers, voiceover artists, and more.

The iD14 boasts a pair of the same Class-A mic preamps found in Audient's world-class consoles, ensuring gold-star treatment for your dynamic or phantom-powered condenser microphones. A harmonically rich JFET 1/4" instrument input is also provided, so you can plug your guitar or bass directly into the interface and get the character of valve amplifiers.

Outfitted with 24-bit / 96 kHz Burr-Brown AD/DA converters, the iD14 delivers premium accuracy while remaining natural and musical, devoid of problems caused by distortion and unstable clocking. The inclusion of a TOSLINK optical port enables digital input expansion via an ADAT- or S/PDIF-equipped external mic preamp or A/D converter.

With stereo 1/4" monitor outputs, an independent Class-AB headphone output, and comprehensive console-style monitor control, the iD14 interface lets you listen to your content in high quality, smoothly adjust your levels, and access dim, cut, mono sum, and more. Plus, there's the revolutionary ScrollControl, a function that can be used to control anything over which your mouse pointer hovers.

DAW software, virtual instruments, samples, cabinet simulations, and more are included to get you started on your path toward achieving polished productions. The iD14 can be powered via USB from your Mac/Windows computer when phantom power is not needed and it includes a 12 VDC power supply to enable use of 48V phantom power.

Audient iD14 Specs
Form Factor Tabletop
Display 2 x Multi-Segment LED Meter
Channels of I/O Analog:
2 Inputs / 4 Outputs at 96 kHz
Digital:
8 Input / 0 Output at 48 kHz
Max Sample Rate/Resolution 96 kHz / 24-Bit
Number of Mic Preamps 2
Input Level Adjustment 2 x Knob
Solo/Mute None
Pad None
High-Pass Filter None
Expansion Slots None
Connectivity
Analog Audio I/O 2 x Combo XLR-1/4" TRS Balanced Mic/Line Input
1 x 1/4" TRS Unbalanced Hi-Z Input
2 x 1/4" TRS Balanced Monitor Output
1 x 1/4" TRS Unbalanced Headphone Output
Phantom Power +48 V ± 4 V, Selectable On/Off (Selectable on Individual Inputs)
Phantom Power Current 10 mA per Channel
Digital Audio I/O 1 x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support)
Host Connection / USB 1 x USB Type-B (USB 2.0)
USB (Non-Host) None
Network I/O None
Sync I/O None
MIDI I/O None
Wireless Connectivity None
Memory Card Slot None
Performance
Frequency Response AD/DA Converters:
10 Hz to fs/2 ±0.1 dB
Headphone Outputs:
10 Hz to fs/2 ±1 dB
Mic, Line Inputs:
20 Hz to 22 kHz ±0.1 dB (Min Gain)
20 Hz to 22 kHz ±1 dB (Max Gain)
Hi-Z Inputs:
20 Hz to 22 kHz ±0.1 dB
Gain/Trim Range Mic/Hi-Z Inputs:
0 to +56 dB
Line Inputs:
-10 to +46 dB
Max Input Level Mic/Line Inputs:
+12 dBu for 0 dBFS
Hi-Z Inputs:
+9 dBu
Max Output Level Headphone/Monitor Outputs:
+12 dBu
Headphone Output Power 101 mW into 30 Ohms (Max)
64 mW into 60 Ohms (Max)
39 mW into 600 Ohms (Max)
Dynamic Range A/D Converters:
113 dB
116 dBA
D/A Converters:
114 dB
117 dBA
Headphone Outputs:
108 dB
111 dBA
Impedance Mic Inputs:
2.8 Kilohms (Balanced)
Line Inputs:
> 8 Kilohms (Balanced)
Hi-Z Inputs:
> 500 Kilohms (Unbalanced)
Monitor Outputs:
< 100 Ohms (Balanced)
Headphone Outputs:
< 30 Ohms (Balanced)
THD+N Mic/Line Inputs:
< -92 dBu / 0.0025% (1 kHz)
Hi-Z Inputs:
0.04% (1 kHz)
A/D Converters:
< -94 dB / < 0.002% (1 kHz, at -1 dBFS)
D/A Converters:
< -90.5 dB / < 0.003% (1 kHz, at -1 dBFS)
Headphone Outputs:
< -94 dB / < 0.002% (1 kHz, at -1 dBFS)
SNR Mic/Line Inputs:
96 dB
99 dBA
Hi-Z Inputs:
95 dB
98 dBA
EIN Inputs:
< -127 dBu
CMRR Mic/Line Inputs:
> 80 dB
Crosstalk Mic/Line Inputs:
< -90 dBu
Headphone Outputs:
-100 dBu
Digital Audio
dBFS Reference Level +12 dBu = 0 dBFS
Sample Rates 44.1 / 48 / 88.2 / 96 kHz
Sample Rate Conversion None
Bit Depths 24-Bit
Latency 6.52 ms at 44.1 kHz (Dependent on Buffer Size, Input to Output)
4.65 ms at 96 kHz (Dependent on Buffer Size, Input to Output)
Sync Sources ADAT, Internal, S/PDIF
Compatibility
OS Compatibility macOS 10.7.5 or Later
Windows 7 or Later
Compatible Software (Not Included) Any Core Audio (Mac) Compliant Software
Included Software Cubase LE
Supported Drivers/API Proprietary
Processor Requirement Mac:
Intel
PC:
1.6 GHz Intel Core 2
RAM Requirements 1 GB
Mobile Device Compatibility None
Required Hardware Available USB 2.0 Port
USB Cable (Included)
Internet Connection Required for Registration, Software/Driver Download
Power
Power Requirements AC/DC Power Adapter (Included) or USB Bus Power
AC Input Power 90 to 264 VAC, 50 / 60 Hz
AC/DC Power Adapter 12 VDC at 1.5 A, Center-Positive (Included)
Physical
Anti-Theft Features Kensington Security Slot
Dimensions 6.8 x 4.7 x 2.4" / 17.3 x 11.9 x 6.1 cm
Packaging Info
Package Weight 3 lb
Box Dimensions (LxWxH) 11.2 x 7.4 x 4"
