US-4x4HR

Name: US-4x4HR
Brand: Tascam
SKU: US-4x4HR
Price: 254.6 EUR
Availability: InStock

Tascam

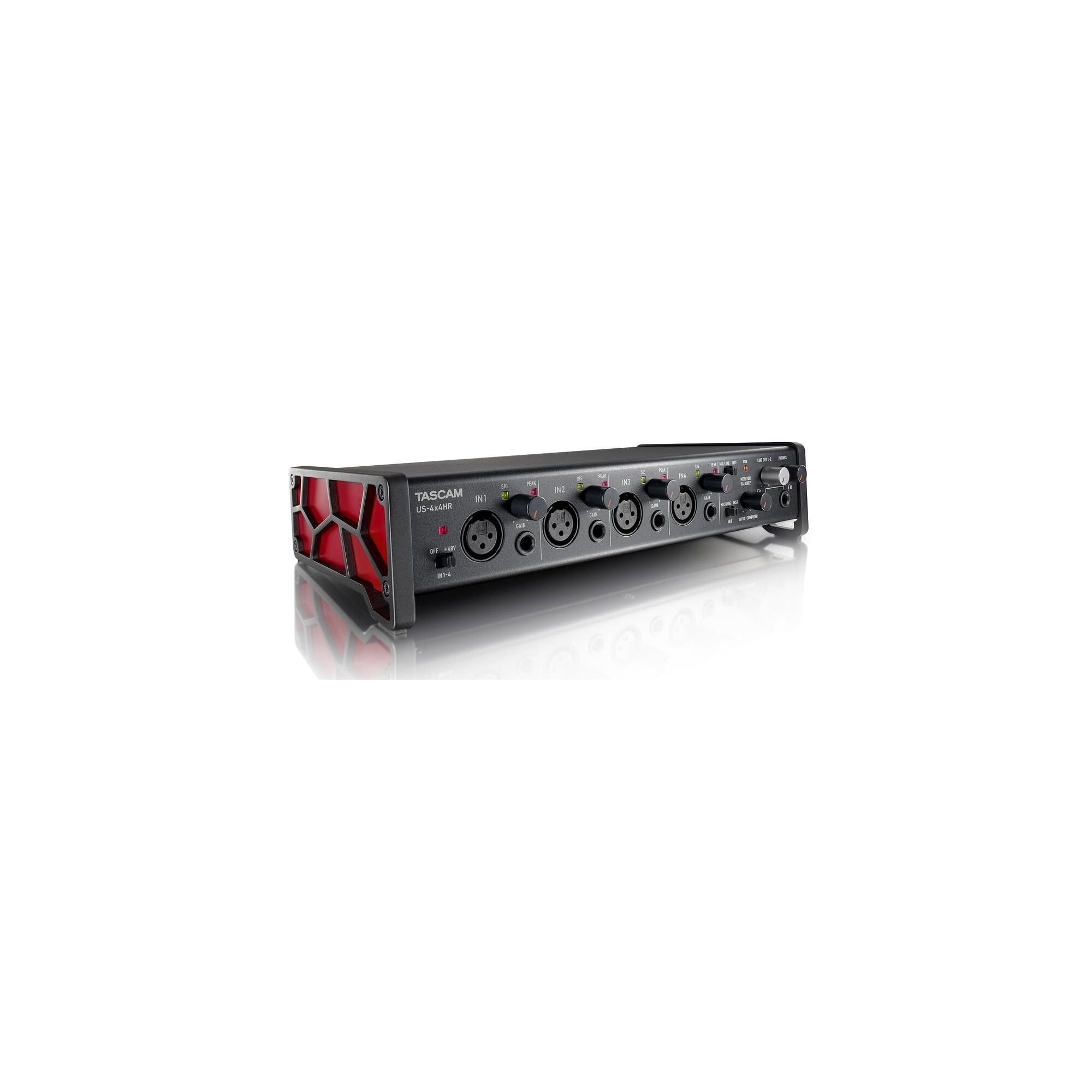

High-Resolution USB Audio/MIDI Interface (4 in, 4 out)

go to the technical sheet

€ 254,60

€ 236,84 VAT excl.

Available 3 unit in 4 Days

Manuale: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

The Ultra-HDDA (High-Definition Discrete Architecture) mic preamps used on the US-HR series feature a discrete construction. They have a higher number of components and are far away from mass-produced preamps. Their EIN (equivalent input noise) rating, which measures the absence of noise, is truly low for the US-2x2HR and US-4x4HR. Combined with a newly improved audio circuit and support for sampling rates up to 192 kHz, our in-house developed microphone preamplifier delivers enhanced audio performance with the most transparent and low-noise sound, reflected in a signal-to-noise ratio of 110 dB.

Ultra-low-noise mic preamps achieve -128 dBu EIN (Equivalent Input Noise)
XLR/TRS jacks allow the input of condenser mics and the balanced connection of synthesizers and other equipment
Wide gain range ensures sufficient level even with dynamic microphones
Guitars can be directly connected enabling the use of 3rd-party plug-in effects

Usability is key
All US-HR models offer a unique dye-cast aluminum honeycomb structure on the side panels with a slight upward tilt. This design not only results in a sleek, eye-catching design, it also provides just the right amount of weight so the interface won't move when cables are connected or disconnected. Equally important, the upward tilt offers the ergonomic benefit of being angled in such a way as to make the interface easy to work with.

With four microphone preamps for multi-mic setups, four configurable balanced outputs, superb sound quality and easy operation, the US-4x4HR is the ideal choice for the demanding musician, producer or home-recordist requiring more than two audio channels.

Download

Manuale

Download (1.76MB)

Audio resolution
Sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Quantization bit depth: 24-bit

Analogue inputs
Mic inputs (balanced): XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
Input impedance: 2.2 kO
Rated input level: -7 dBu (0.346 Vrms)
Maximum input level: +9 dBu (2.183 Vrms)
Gain range: 56 dB
Instrument inputs (unbalanced, MIC/LINE INST switch set to INST): 6.3-mm standard TS stereo jacks (Tip: HOT, Sleeve: GND)
Input impedance: =1 MO
Rated input level: -6 dBV (0.501 Vrms)
Maximum input level: +10 dBV (3.162 Vrms)
Gain range: 56 dB
Line inputs (balanced, MIC/LINE INST switch set to MIC/LINE): 6.3-mm standard TRS stereo jack (Tip: HOT, Ring: COLD, Sleeve: GND)
Input impedance: 10 kO
Rated input level: +4 dBu (1.228 Vrms)
Maximum input level: +20 dBu (7.75 Vrms)
Gain range: 56 dB

Analogue outputs
Line outputs (balanced): 6.3-mm standard TRS stereo jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Output impedance: 210 O
Rated output level: +4 dBu (1.228 Vrms)
Maximum output level: +20 dBu (7.746 Vrms)
Headphone output (PHONES): 6.3-mm standard stereo jack
Maximum output power: 45 mW + 45 mW or higher (THD+N 0.1% or less, into 32 O load)
Output impedance: 51.5 O
Load impedance: 16-600 O

Control inputs/outputs
MIDI IN connector: 5-pin DIN
Format: MIDI standard
MIDI OUT connector: 5-pin DIN
Format: MIDI standard
USB: 4-pin USB, Type C
Transfer rate: USB 2.0 High Speed (480 MBit/s)

Audio performance
Mic amp EIN (equivalent input noise): =-128 dBu (150 O termination, GAIN knob at maximum)

Frequency response, MIC/LINE input:
44.1 kHz / 48 kHz
20 Hz - 20 kHz, +0 dB/-0.4 dB (JEITA)
88.2 kHz / 96 kHz
20 Hz - 40 kHz, +0 dB/-0.4 dB (JEITA)

Frequency response, LINE output:
44.1 kHz / 48 kHz
20 Hz - 20 kHz, +0.2 dB/-0.1 dB (JEITA)
88.2 kHz / 96 kHz
20 Hz - 40 kHz, +0.2 dB/-0.4 dB (JEITA)

S/N ratio:
110 dB (MIC input, GAIN knob at minimum, 20-kHz SPCL LPF, A-weighted)
108 dB (LINE input, GAIN knob at minimum, 20-kHz SPCL LPF, A-weighted)
110 dB (LINE output, LINE OUT knob at maximum, 20-kHz SPCL LPF, A-weighted)

Distortion (THD+N):
0.0013 % (MIC IN, 1 kHz sine wave, -5 dBFS input, GAIN knob at minimum, 20 kHz SPCL LPF)
0.0011 % (LINE IN, 1 kHz sine wave, -5 dBFS input, GAIN knob at minimum, 20 kHz SPCL LPF)
0.0012 % (LINE OUT, 1 kHz sine wave, -4 dBFS input, LINE OUT knob at maximum, 20 kHz SPCL LPF)

Crosstalk attenuation: =95 dB (MIC/LINE input to LINE output, 1 kHz sine wave, GAIN knob at minimum)

Computer system requirements
Windows
Computer hardware requirements: Windows computer with a USB 2.0 port
CPU/processor speed: 2 GHz or faster dual core processor (x86)
Memory: 2 GB or more

Important: Operation of this unit was confirmed using standard computers that meet the above requirements. This does not guarantee operation with all computers that meet the above requirements. Even computers that meet the same system requirements might have processing capabilities that differ according to their settings and other operating conditions

Supported audio drivers: ASIO2.0, WDM, MIDI

macOS
CPU/processor speed: 2 GHz or faster dual core processor
Memory: 2 GB or more
Supported audio drivers: Core Audio, Core MIDI

iOS
Supported audio drivers: Core Audio

Important: To connect an iOS device that has a Lightning connector, a genuine Apple Lightning to USB Camera Adapter (sold separately) is necessary.

Power supply and other specifications
Power supply
When used with a computer: USB bus power or dedicated AC adapter below
When used with an iOS device: Dedicated AC adapter (Tascam PS-P1220E, DC 12 V)
Power consumption: 2.25 W
External dimensions (W × H × D, including protrusions): 296 mm × 65 mm × 160 mm
Weight: 1.6 kg
Operating temperature range: 5-35 °C
