Evo 8

Name: Evo 8
Brand: Audient
SKU: Evo 8
Price: 217.12 EUR
Availability: OutOfStock

Audient

Desktop 4x4 USB Type-C Audio Interface

go to the technical sheet

€ 217,12

€ 201,97 VAT excl.

Available in 19 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

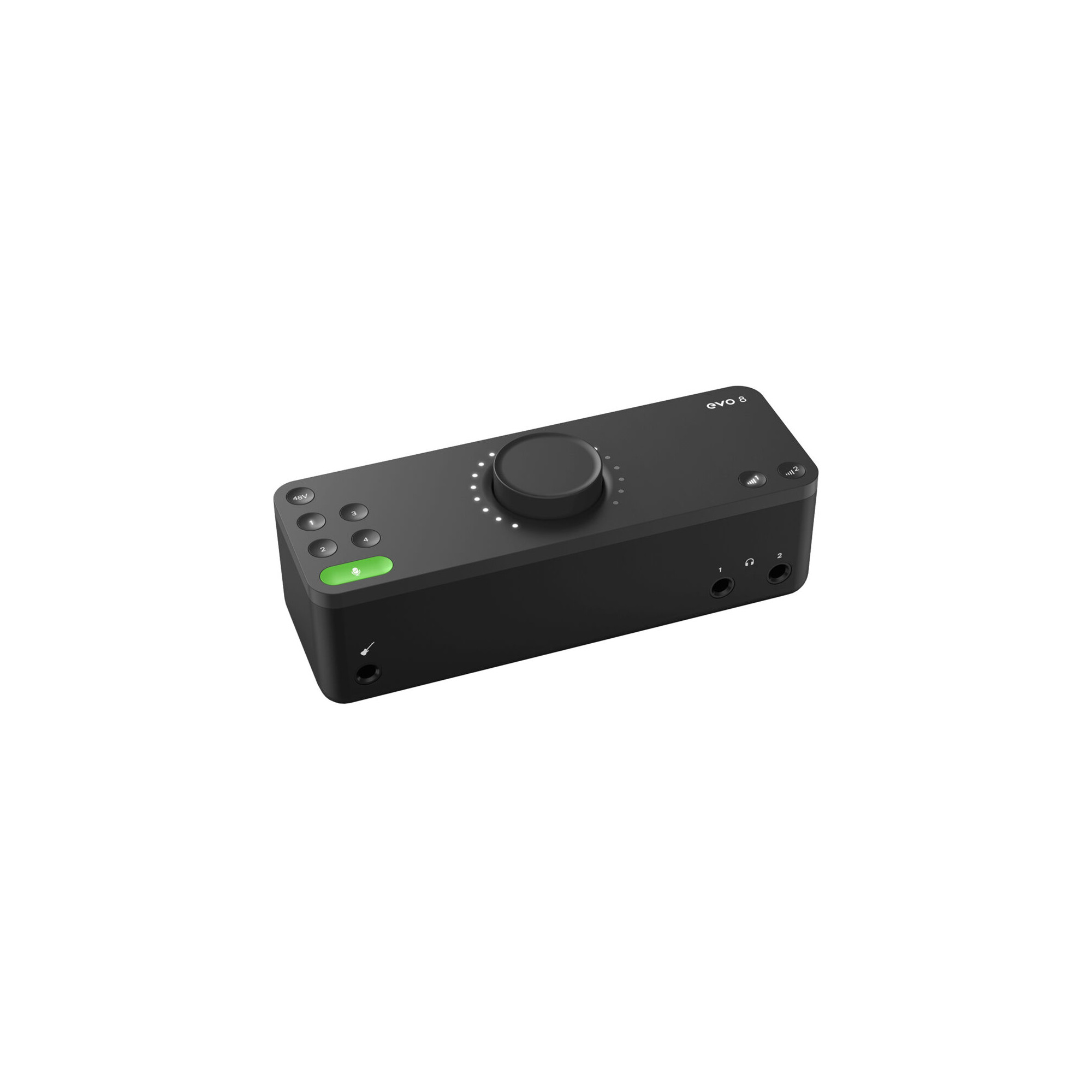

Podcasters, musicians, producers, and content creators can benefit from the Audient EVO 8, a desktop 4x4 USB audio interface that makes capturing high-quality audio effortless. It features four warm EVO mic preamps, a JFET Hi-Z input for instruments, and Smartgain automatic gain control. Plus, its four 1/4" line outputs and two headphone outs are perfect for hooking up multiple sets of speakers and headphones.

The EVO 8's large knob provides convenient control of levels for your monitors, headphones, and channels while the multifunction buttons enable easy muting of the inputs and headphone outs. The audio loopback function makes it possible to record computer audio at the same time as the inputs—a welcome feature for podcasters who need to capture remote guests via Skype or other VoIP apps.

DAW software, virtual instruments, samples, cabinet simulation, and more are included to get you started on your path toward achieving polished productions. Because the unit is bus-powered, you can power it straight from your computer; you never need to worry about accidentally forgetting or unplugging a power supply. It includes two USB cables (USB Type-C and USB Type-A) to allow proper connection to virtually any computer.

Audient EVO 8 Specs
Form Factor Tabletop
Display 1 x Multi-Segment LED Meter
Channels of I/O Analog:
4 Inputs / 4 Outputs at 96 kHz
Max Sample Rate/Resolution 96 kHz / 24-Bit
Number of Mic Preamps 4
Input Level Adjustment 4 x Automatic
1 x Knob
Solo/Mute Mute per Input Channel, Master
Pad None
High-Pass Filter None
Expansion Slots None
Connectivity
Analog Audio I/O 4 x Combo XLR-1/4" TRS Balanced Mic/Line Input (Pin 2 Hot)
1 x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
4 x 1/4" TRS Balanced Line Output (Tip Hot)
2 x 1/4" TRS Unbalanced Headphone Output
Phantom Power +48 V ± 4 V, Selectable On/Off (Selectable on Individual Inputs)
Phantom Power Current 10 mA per Channel
Digital Audio I/O None
Host Connection / USB 1 x USB Type-C (USB 2.0)
USB (Non-Host) None
Sync I/O None
Network I/O None
MIDI I/O None
Wireless Connectivity None
Memory Card Slot None
Performance
Frequency Response Mic, Line Inputs:
10 Hz to 40 kHz ±0.5 dB
Hi-Z Inputs:
10 Hz to 20 kHz ±0.5 dB
A/D Converters:
10 Hz to fs/2 ±0.5 dB
D/A Converters:
10 Hz to fs/2 ±0.5 dB
Headphone Outputs:
10 Hz to fs/2 ±0.5 dB
Gain/Trim Range Mic/Line/Hi-Z Inputs:
58 dB
Max Input Level Mic/Line Inputs:
+16 dBu
Hi-Z Inputs:
+10 dBu
Max Output Level D/A Converters:
+11 dBu
Headphone Outputs:
+10.1 dBu (600-Ohm Load)
Headphone Output Power 45 mW into 30 Ohms (Max)
52 mW into 60 Ohms (Max)
20 mW into 600 Ohms (Max)
Impedance Mic Inputs:
> 3 Kilohms (Balanced)
Line Inputs:
> 10 Kilohms (Balanced)
Hi-Z Inputs:
1 Megohm (Unbalanced)
Line Outputs:
< 100 Ohms (Balanced)
Headphone Outputs:
< 50 Ohms (Unbalanced)
Dynamic Range AD/DA Converters:
113 dBA
Headphone Outputs:
113 dBA
SNR Mic/Line/Hi-Z Inputs:
100 dB
THD+N Mic/Line Inputs:
< 0.0015% (1 kHz)
Hi-Z Inputs:
< 0.3% (1 kHz)
D/A Converters:
< 0.0015% (1 kHz, at -1 dBFS)
Headphone Outputs:
< 0.0015% (1 kHz, at -1 dBFS)
Crosstalk Mic/Line Inputs:
< -105 dBu (1 kHz)
Line Outputs:
< -110 dBu (1 kHz)
Headphone Outputs:
< -110 dBu (1 kHz)
EIN Mic/Line Inputs:
< -128 dBu
CMRR Mic/Line Inputs:
> 85 dB (1 kHz)
Digital Audio
Sample Rates 44.1 / 48 / 88.2 / 96 kHz
Sample Rate Conversion None
Bit Depths Up to 24-Bit
Latency 5 ms at 44.1 kHz (Dependent on Buffer Size, Input to Output)
4.1 ms at 96 kHz (Dependent on Buffer Size, Input to Output)
Sync Sources Internal
Compatibility
OS Compatibility macOS 10.7.5 or Later
Windows 7 or Later (32-Bit, 64-Bit)
Included Software Cubase LE
Compatible Software (Not Included) Any Core Audio (Mac) Compliant Software
Supported Drivers/API & Plug-Ins Core Audio (Mac)
ASIO
Processor Requirement Mac:
Intel
PC:
1.6 GHz Intel Core 2
RAM Requirements 1 GB
Mobile Device Compatibility None
Required Hardware Available USB 2.0 Port
USB Cable (Included)
Internet Connection Required for Software/Driver Download
Power
Power Requirements USB Bus Power
Physical
Dimensions 7.48 x 2.76 x 2.76" / 19 x 7 x 7 cm
Weight 1.0 lb / 0.5 kg
