Audiotechnica

3.5mm to USB 2.0 Type-C Audio adapter
go to the technical sheet
  • -2.51%
Save 2.51%
€ 28,43

€ 26,45 VAT excl.

€ 29,16
Available in 11 days
Not sure if this is the right product for you? Talk to a consultant

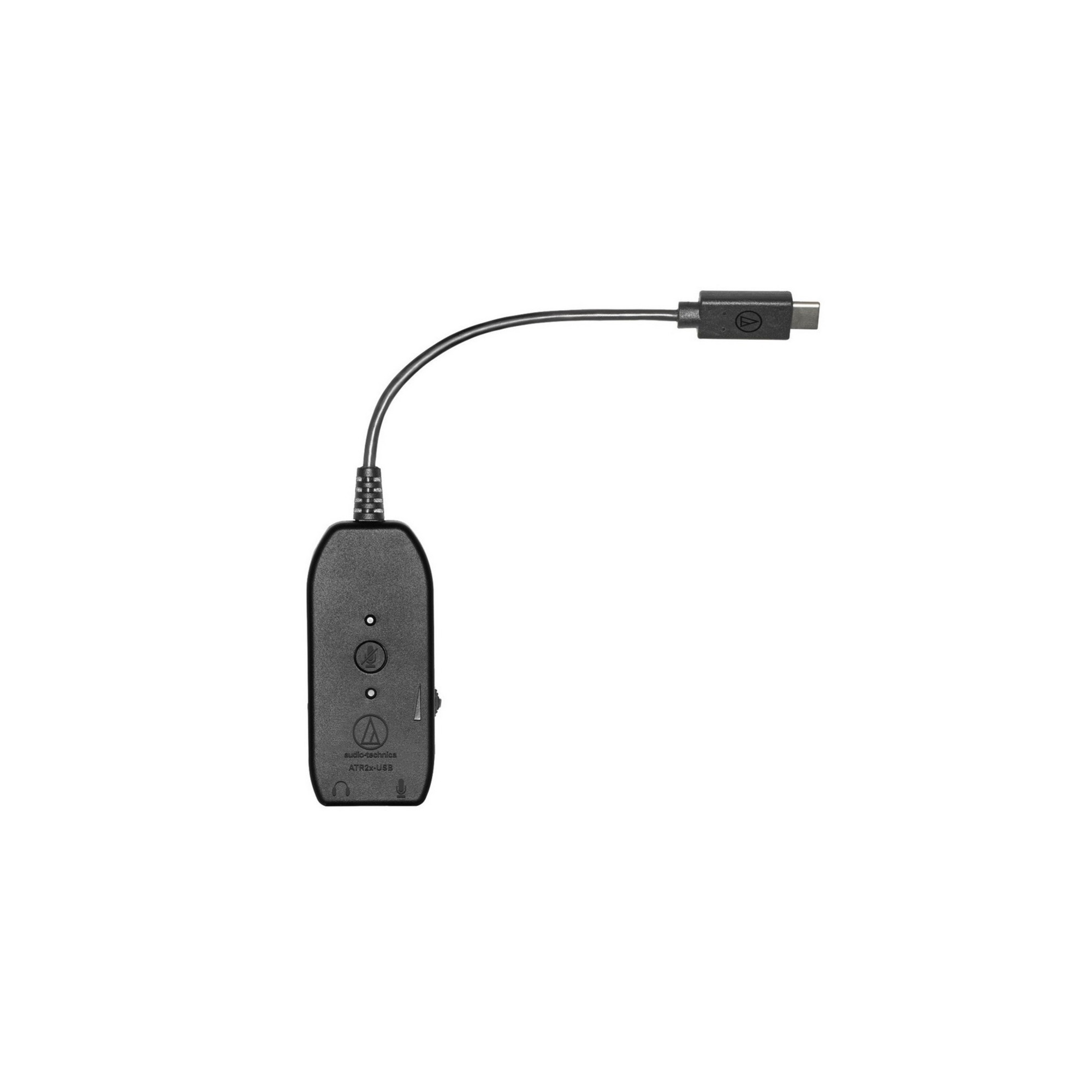

The ATR2x-USB 3.5mm to USB Type-C Audio Adapter from Audio-Technica is designed to turn any headphone, microphone, or headset with a 3.5mm plug into a USB-compatible device. This adapter is equipped with a 3.5mm microphone input and a 3.5mm headphone output, a mute button, a volume control, and LED's showing power and mute status. It features USB 2.0 operation and provides plug-in power for microphones that need power. A USB Type-C to USB-Type A adapter is also included for greater compatibility.
The adapter features a 3.5mm headphone jack for connecting your headphones to the device. It also has a 3.5mm microphone jack to connect a standard microphone for quality recording or communication.
With the USB 2.0 interface, the adapter provides high-speed operation with a 16-bit, 44.1/48 kHz sample rate for high-definition audio.
The adapter features a volume control to adjust headphone volume. A mute button silences the microphone audio when you do not wish to be heard.
The adapter provides plug-in power for microphones that need power.
A mute light illuminates red when the microphone is muted. The USB light illuminates green when the adapter is properly connected to a powered USB port and when the microphone is not muted.
The adapter is compatible with Windows 2000 or later, Mac OS X, iOS, and Android devices with a USB Type-C connector. It is plug-and-play, so drivers are not necessary.

Audio-Technica Consumer ATR2X-USB Specs
Form Factor Inline
Display None
Channels of I/O 1 Input / 1 Output
Max Sample Rate/Resolution 48 kHz / 16-Bit
Number of Mic Preamps None
Input Level Adjustment 1 x Knob
Connectivity
Analog Audio I/O 1 x 1/8" / 3.5 mm Unbalanced Mic Input
1 x 1/8" / 3.5 mm TRS Headphone Output
Phantom Power None
Digital Audio I/O None
Host Connection / USB 1 x USB Type-C (USB 2.0)
1 x USB Type-A (USB 2.0)
MIDI I/O None
Memory Card Slot None
Performance
Frequency Response 20 Hz to 20 kHz ±1 dB
Headphone Output Power 13 mW into 16 Ohms
SNR 70 dB
Digital Audio
Sample Rates Up to 48 kHz
Bit Depths Up to 16-Bit
Sync Sources None
Compatibility
OS Compatibility macOS
Windows 2000 or Later
Mobile Device Compatibility Android Smartphone
iPad Pro
Power
Power Requirements USB Bus Power
AC/DC Power Adapter None
Physical
Anti-Theft Features None
Packaging Info
Package Weight 0.165 lb
Box Dimensions (LxWxH) 5.8 x 4.2 x 1.3"
