Audio-Technica AT8035 specs
Transducer Fixed-Charged, Back Plate, Permanently Polarized Condenser

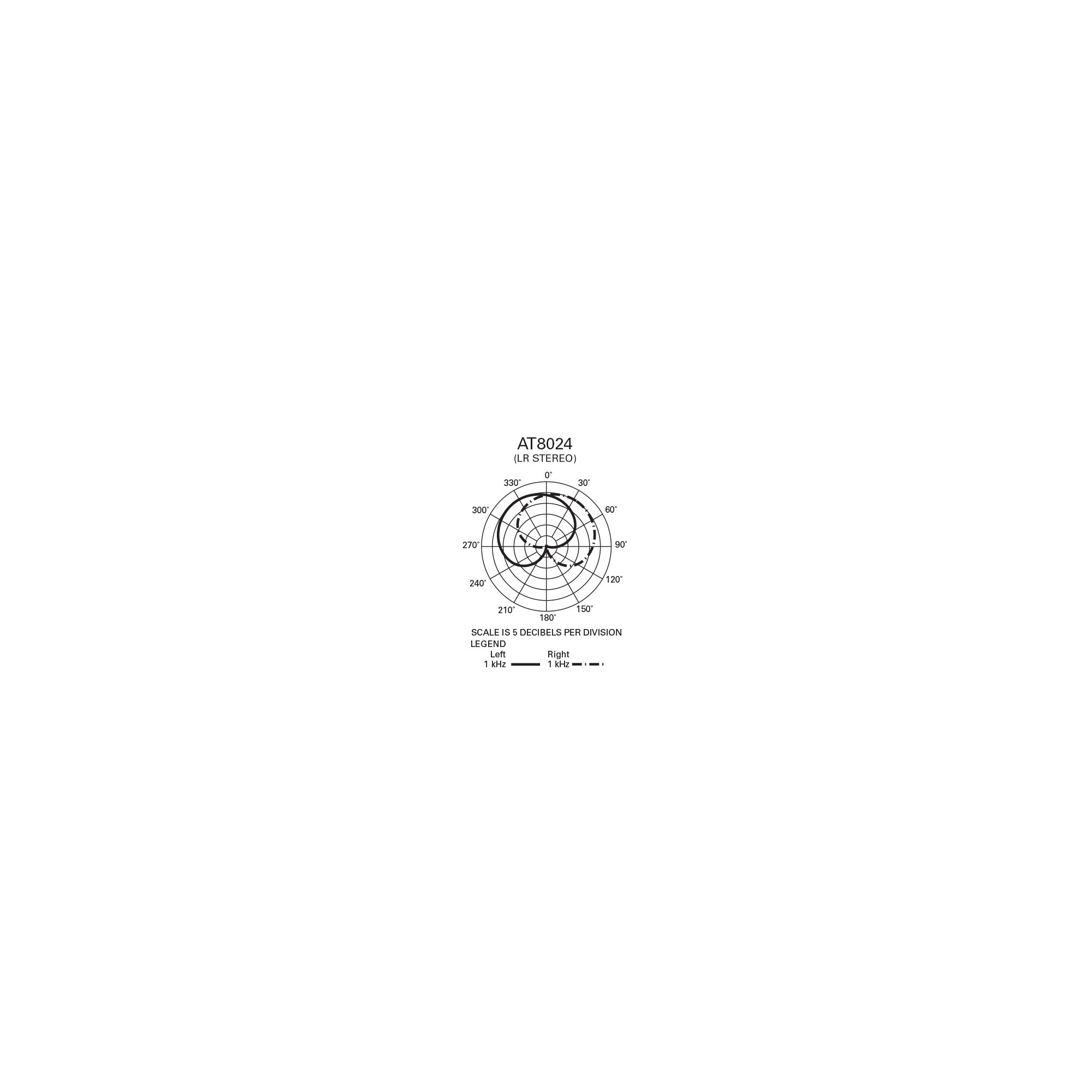

Polar Pattern Line + Gradient

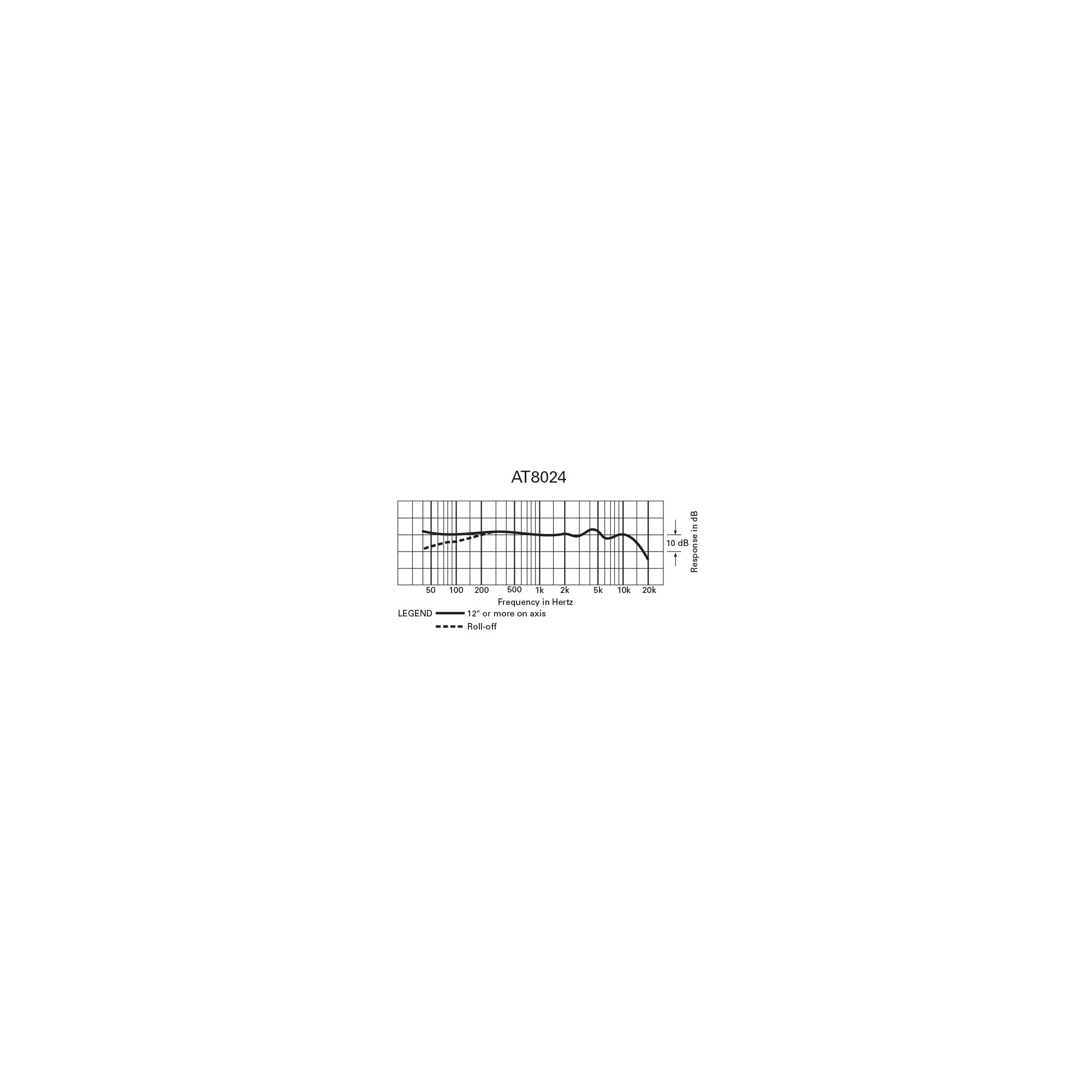

Frequency Response 40 Hz to 20 kHz
Low Frequency Roll-Off 80 Hz, 12 dB/octave
Open Circuit Sensitivity Phantom: -38 dB (12.5 mV) re 1 V at 1 Pa
Battery: -39 dB (11.2 mV) re 1 V at 1 Pa
Impedance Phantom: 250 ohms
Battery: 300 ohms
Max Input Sound Level (SPL) Phantom: 132 dB SPL, 1 kHz at 1% THD
Battery: 120 dB SPL, 1 kHz at 1% THD
Dynamic Range (Typical) Phantom 110 dB, (1 kHz @ maximum SPL)
Battery 98 dB, (1 kHz @ maximum SPL)
Signal-to-Noise Ratio 72 dB, (1 kHz @ 1Pa / A-Weighted)
Phantom Power Requirements 11 to 52 VDC
Battery AA (1.5v)
Battery Type AA/UM3: 1.5 V
Battery Current 0.4 mA / 1200 hours typical (alkaline)
Output Connectors XLR-3M Type
Switch Flat, Roll-Off
Dimensions (LxDiameter) 14.53 x 0.83" (369 X 21mm)
Weight 6.0 oz. (170 g)
Packaging Info
Package Weight 1.8 lb
Box Dimensions (LxWxH) 19.5 x 4.6 x 2.5"
