AE2500

Name: AE2500
Brand: Audiotechnica
SKU: AE2500
Price: 754.18 EUR
Availability: OutOfStock

Audiotechnica

Dual capsule microphone: condenser / dynamic, cardioid

go to the technical sheet

-2.5%

Save 2.5%

€ 754,18

€ 701,56 VAT excl.

€ 773,51

Available in 11 days

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

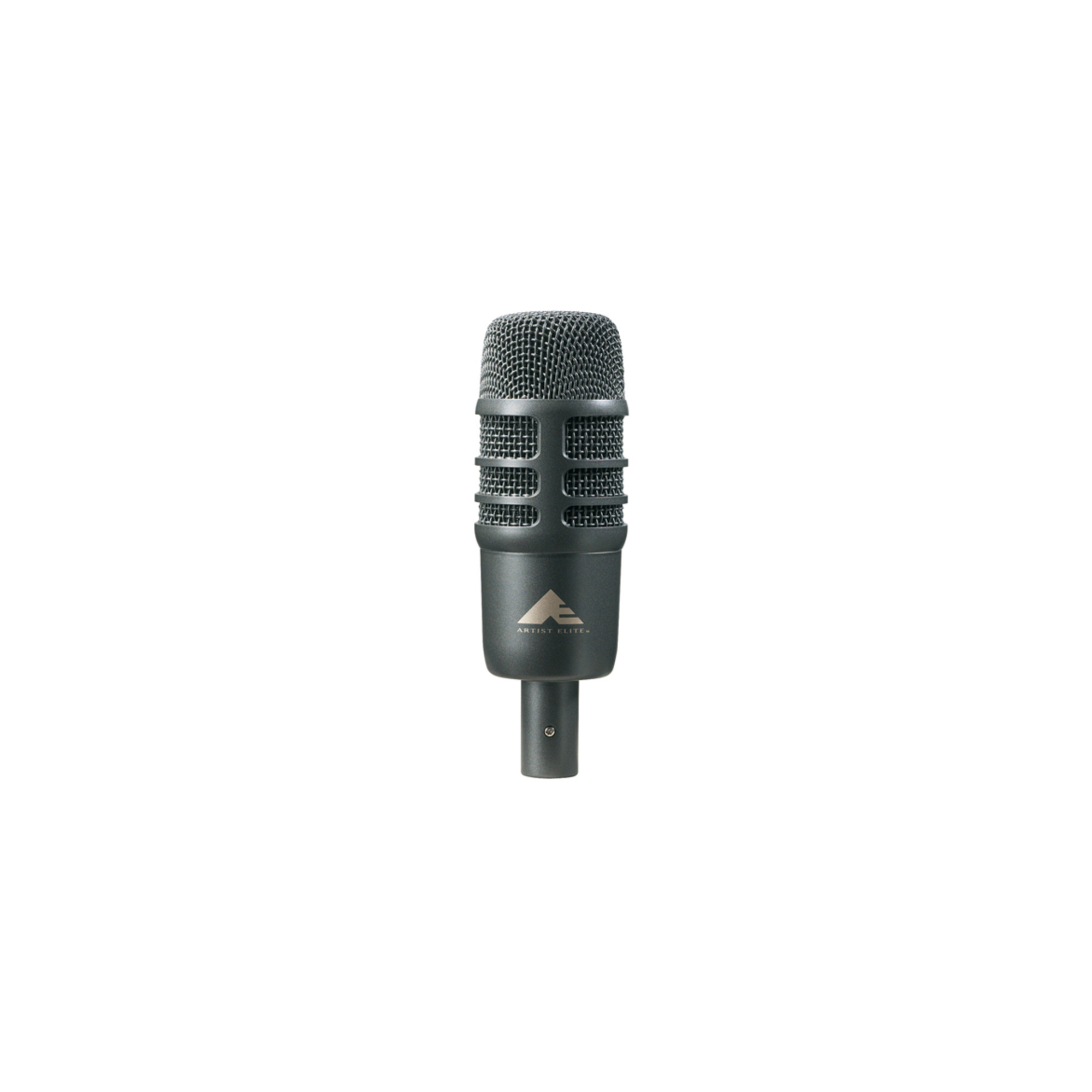

DOUBLE CAPSULE MICROPHONE (CONDENSER / DYNAMIC), CARDIOID
Revolutionary! The double capsule design, the first of its kind, represents an innovation in transducer technology.

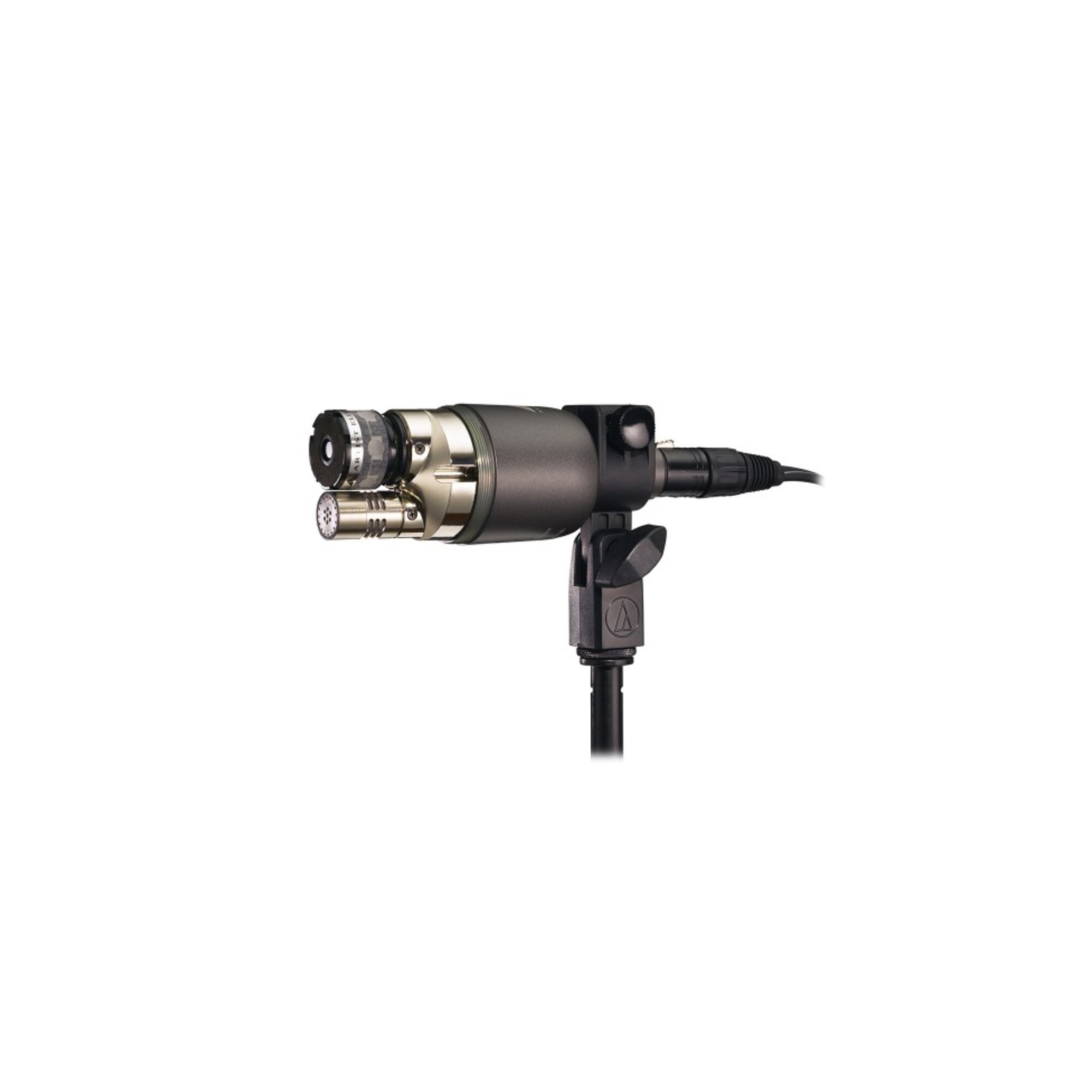

• Two capsules (condenser and dynamic) are incorporated in a single frame
• The dynamic capsule resumes the aggressive attack of the blow while the condenser one captures the "round" tone of the skin
• The capsules are positioned perfectly in phase, which is not possible in practice with two separate microphones
• Robust design to ensure a long life even for "on the road" use
• Integrated switches for 80 Hz high pass and 10 dB attenuator
• Double-shielded 5m cable, 8-core cable, 5-pole XLR socket connector to microphone, output with two 3-pole XLR plugs

Accessories included:

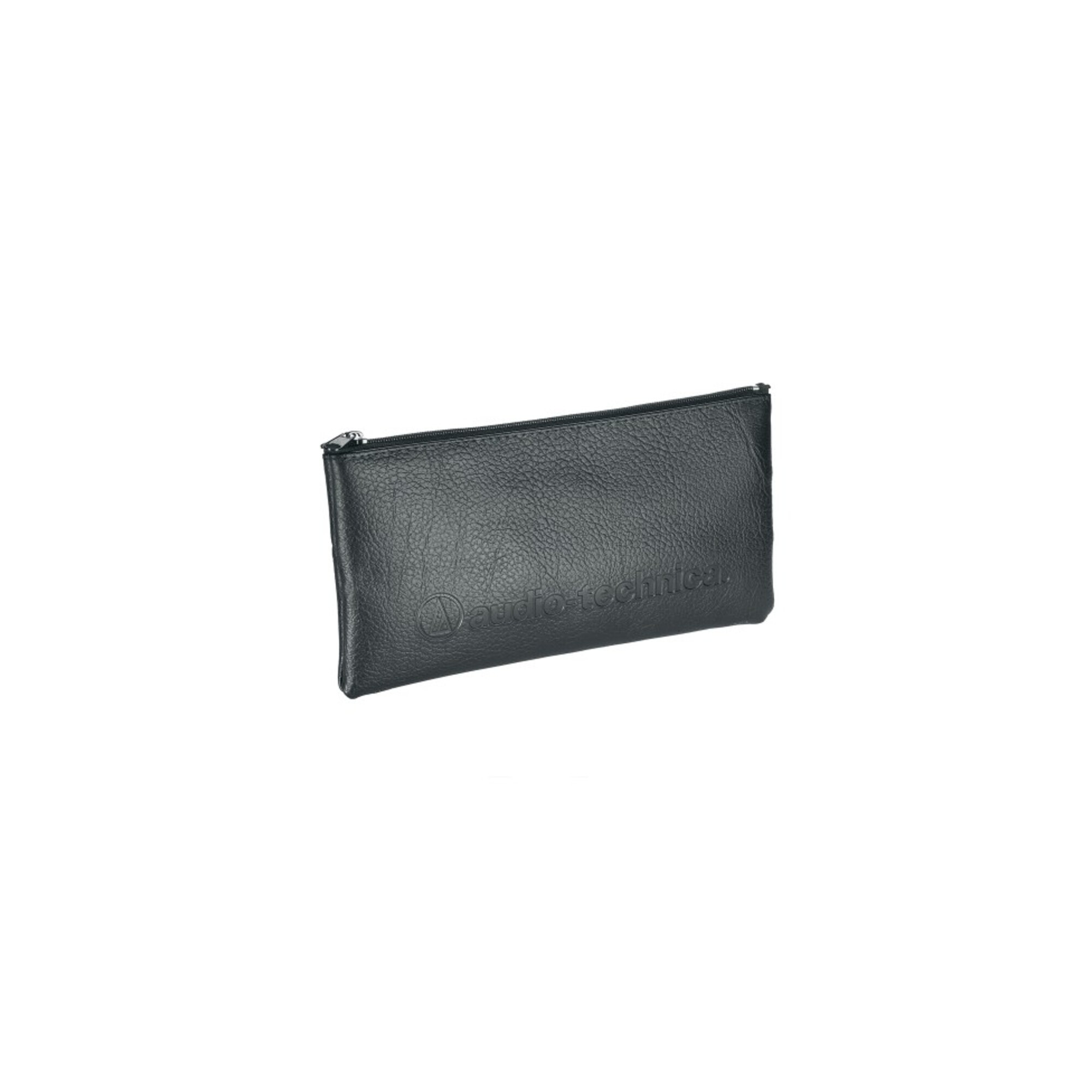

Pencil case

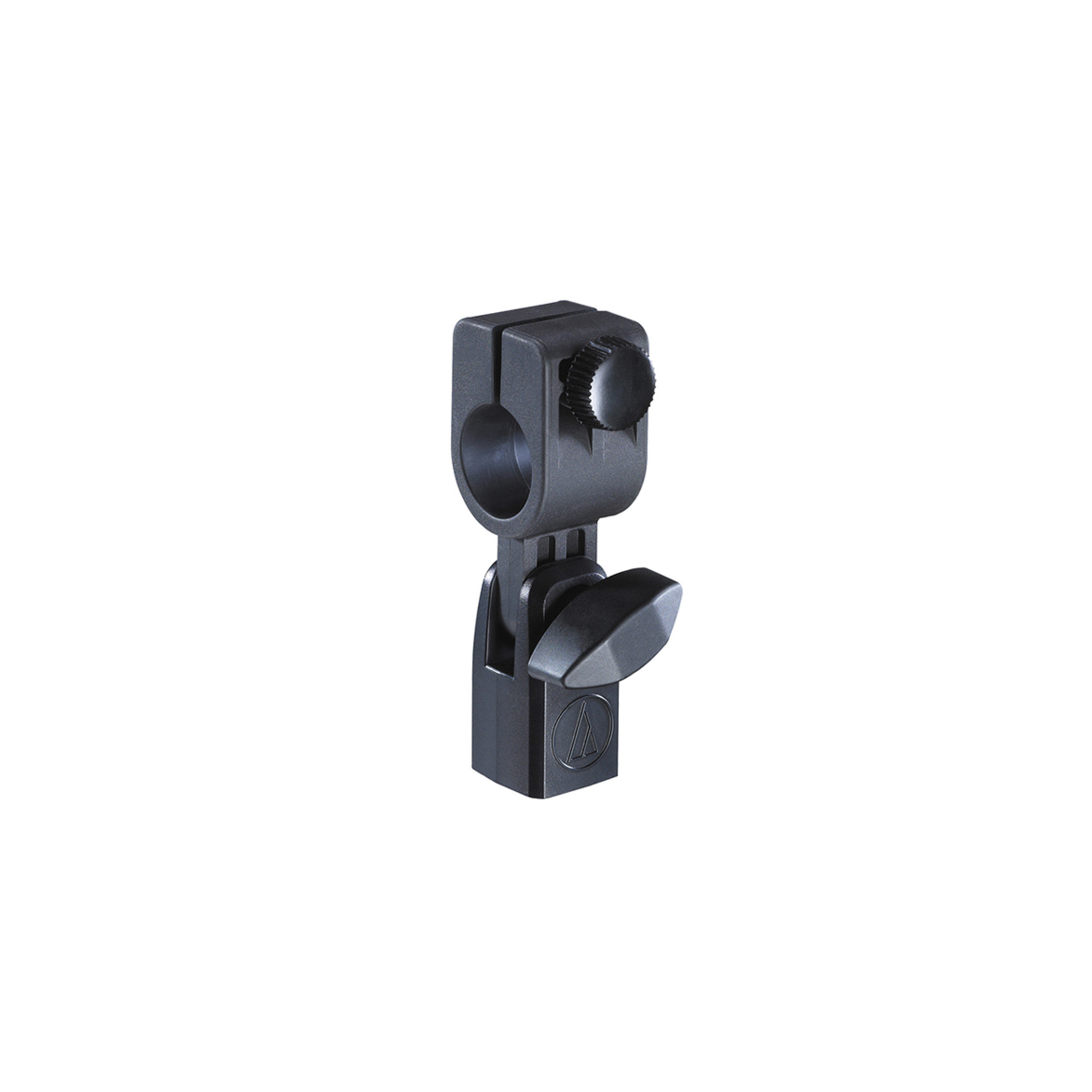

Rod support AT8471

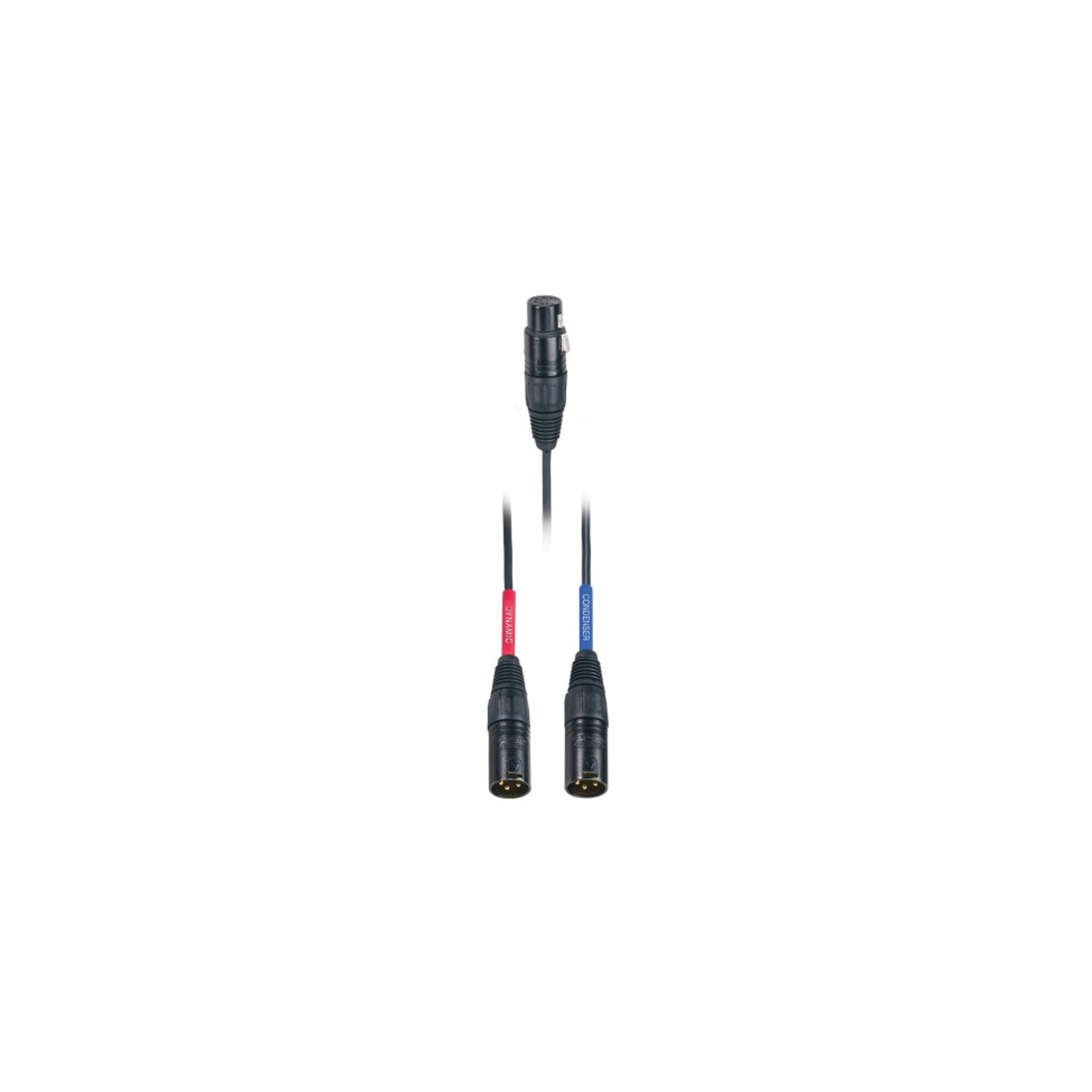

5m cable. double shielded, 8 conductors (XLR 5-pole - XLR 3-pole)

Capsule: Condenser, Dynamic
Polar feature: Cardioid
Frequency Response
-Dynamic: 30-10.000 Hz
- Capacitor: 20-17.000 Hz
Open Circuit Sensitivity
-Dynamic: - 54 dB (1.9 mV)
- Capacitor: - 51 dB (2.8 mV)
Impedance
-Dynamic: 600 ohm
- Capacitor: 100 ohm
Max Input Sound Pressure
Condenser:
-148 dB SPL 1 kHz, T.H.D. 1%
-158 dB SPL, with att. from 10dB

Rap. signal / noise (1 kHz, 1 Pa *)
Capacitor: 70 dB
Dynamic range (1 kHz)
Capacitor: 124 dB
Bass attenuation filter: 80Hz, 12dB / octave
Power Requirements: 11-52V DC, 3mA
Weight (excluding accessories): 390 g
Dimensions: Length 165 mm, diameter 55 mm
Output Connector: Integrated 5-pin XLR plug

Accessories supplied
-Soft case; AT8471 insulating terminal;
-5m double shielded cable, with 8 conductors and
- terminated with 1 x XLR5F on the microphone and 2 x XLR3M on the output

* 1 Pascal = 10 dynes / cm2 = 10 microbars = 94 dB SPL
