Sennheiser

4044155273274
Ceiling Array Microphone Microsoft Teams, Zoom, ClickShare, DANTE, AES67 - White
go to the technical sheet
₦ 5,263,265.00

₦ 4,896,060.40 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant
Sennheiser Ceiling Array Microphone Microsoft Teams, Zoom, ClickShare, DANTE, AES67 Certified (White)

The white TeamConnect Ceiling Medium Microphone Array with Flushmount Kit from Sennheiser is a conference microphone designed for permanent installation in medium-size conference rooms and meeting spaces.
The array features 15 SMD microphone capsules and adaptive beamforming technology that automatically follows the active speaker's voice, letting people speak naturally whether they are sitting, standing, or walking around the room.

The Medium Microphone offers great versatility and interoperability with support for Dante networks and PoE (Power over Ethernet) via dual RJ45 ports, while a 3-pin Phoenix connector provides analog outputs.
The microphone is compatible with Sennheiser's Control Cockpit software for efficient remote management and offers remote configuration and monitoring via an open media control protocol (API), allowing for easy integration into media systems.

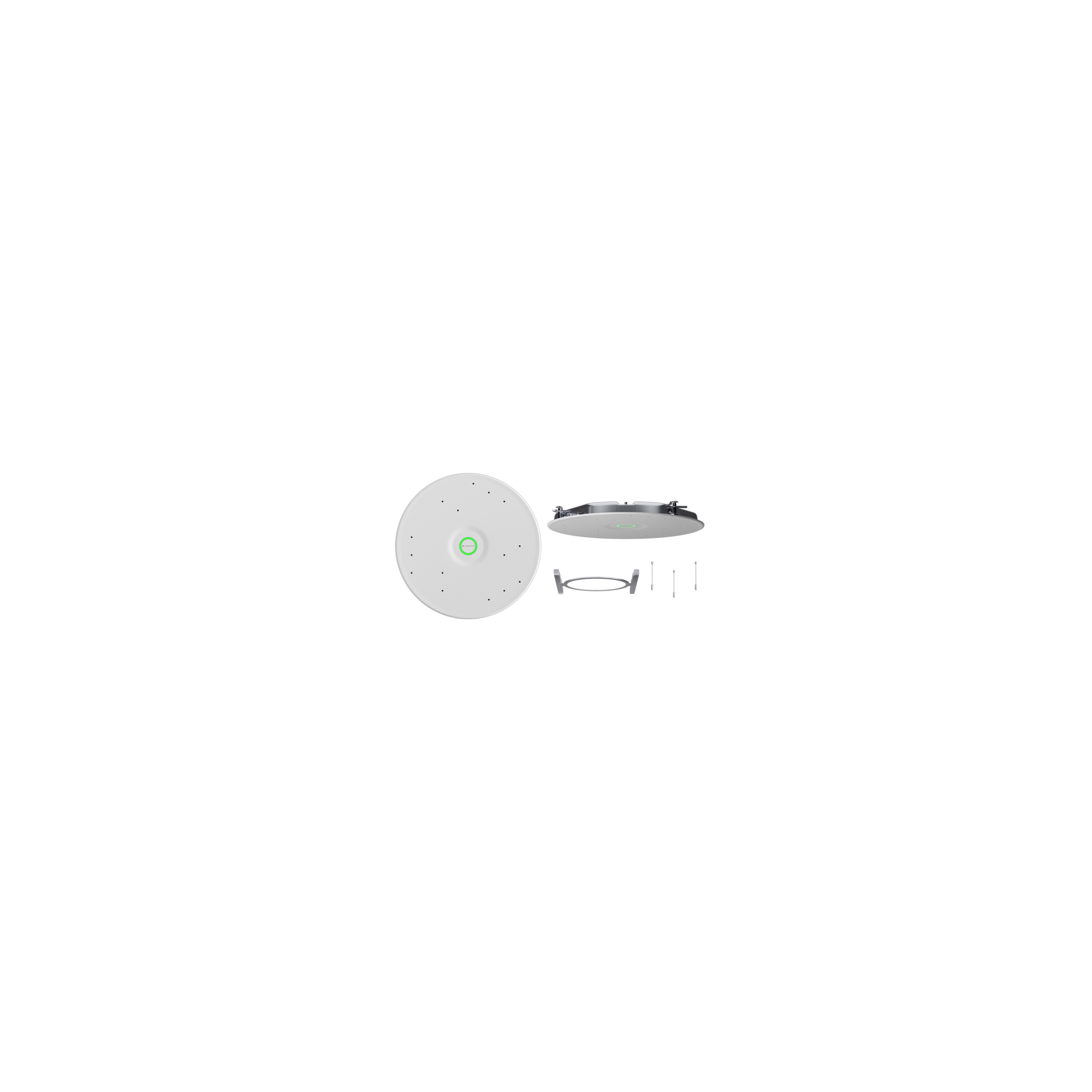

The included kit provides the necessary components to discreetly flushmount the mic array to the ceiling for an elegant, low-profile appearance.

- Ceiling microphone array with patented automatic speaker position detection and dynamic beamforming for best speech intelligibility
- Array includes 15 SMD electret-condenser capsules made in Germany
- TruVoicelift functionality provides speech ampification to ensure everyone gets heard, even from the back of the room
- Configuration and monitoring via Sennheiser´s Control Cockpit software
- Set exclusion zones to be ignored by the beamtracking
- Set priority zones so that anyone speaking in a particular area of the room is giving priority
- Analog and digital (Dante) audio outputs for easy connectivity to video and audio conference systems
- PoE (Power over Ethernet) for easy installation
- Camera control via talker position data
- Certified for: MS Teams, Zoom, DingTalk and Tencent
- Supports IEEE 802.1x networking protocol
- Supports TLS 1.2 security protocol

Inputs / Outputs
_________________________

Audio I/O:
- 1x Block 3-Pin Line Output
- 1x RJ45 Dante Input
- 1x RJ45 Dante Output
Transducer:
- Pre-Polarized Condenser Microphone
- 15 Microphone Capsules
Frequency Response: 100 Hz to 16 kHz
Signal to Noise Ratio: 77 dB (A Weighted)
Sensitivity: 0 dBV/Pa (1020 mV/Pa)
Equivalent Noise Level: 17 dB (A Weighted)
Polar Pattern: Beam Pattern
Maximum Sound Pressure Level (SPL): 98 dB
Dynamic Range: 81 dB (A Weighted)

Wireless
_________________________

Mobile App Compatible: No

Power
_________________________

Power Source: PoE
Power Consumption: 8 W

Environmental
_________________________

Certifications: IEC/EN62368-1
Operating Temperature: 32 to 104°F / 0 to 40°C
Operating Humidity: 20 to 95% ()

Physical
_________________________

Mounting: Bottom: Multiple Flushmount Kit
Color: White
Dimensions: 161.8" / 40746 mm
Weight: 10.8 lb / 4.9 kg

1x Ceiling Array Microphone Microsoft Teams, Zoom, ClickShare, DANTE, AES67 Certified (White)
1x Front Plate
1x Flushmount Kit
1x Chicago Plenum Connection Box Cover Plate
1x Drilling Templates
1x Phoenix Connector
1x Safety Rope
1x Suspension Kit
