HXC-FZ90HNPR

Name: HXC-FZ90HNPR
Brand: Sony
SKU: HXC-FZ90HNPR
Price: 14096.6 EUR
Availability: OutOfStock

Sony

EAN: 5013493467958

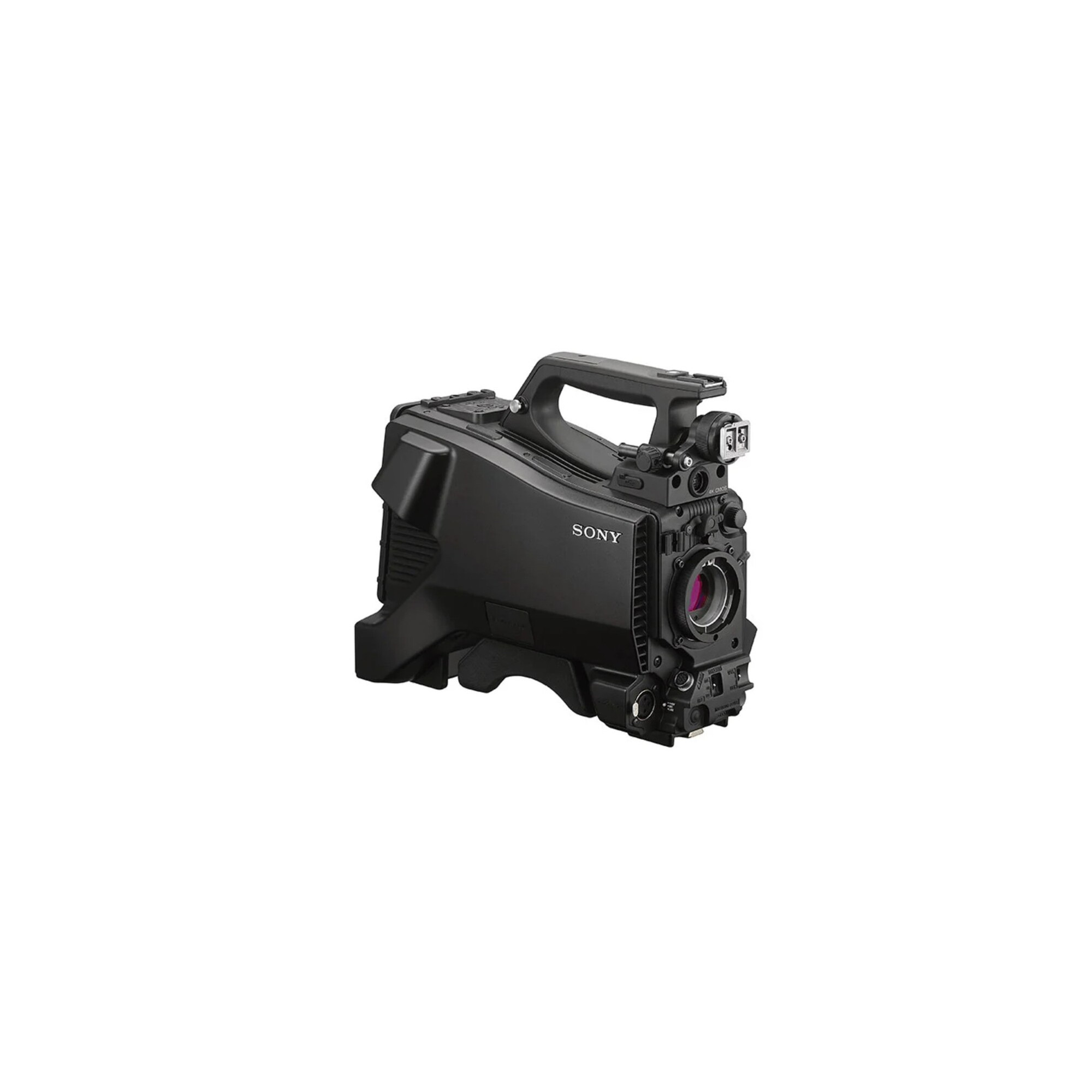

4k upgradable Studio Camera Neutrik + try upgrade promo 1 week 4k HZC-UHD9W

go to the technical sheet

€ 14.096,60

€ 13.113,12 VAT excl.

Available in 15 days

Datasheet: Download

Not sure if this is the right product for you? Talk to a consultant

4k upgradable Studio Camera Neutrik model and and a promotional HZC-UHD9W (1 week upgrade 4K licence)

° High image quality for HD and 4K productions
Thanks to Sony's 2/3-type 4K CMOS image sensor.
Or it offers particularly clear and rich HD coverage thanks to the sampling starting from 4K.
Invest less now by starting with HD shooting, then upgrade to 4K later without any hardware changes.

° Flexible integration, regardless of camera configuration
Ideal for 4K HDR productions and adaptable to the look you need, thanks to BT.2020 wide color support and SR Live for HDR (HLG/S-Log3).
Management of 4K output directly from the camera, via 12G-SDI connection, for standalone use.
It also allows you to operate wirelessly and record directly with third-party accessories.

° Features designed to simplify live productions
Specific functions simplify live operations, from focus assist interventions to headset intercom.
Our Total Live Control System (TLCS) offers easy automatic control of iris, gain and shutter.
With Network Trunk, devices such as PTZ camera can be controlled and operated, as well as provide high-speed data transmission between the camera and the CCU for remote operation.

° Study: simple and integrated operation
Easily capture a sharp image, thanks to various Focus Assist features, such as Dynamic Focus and Focus Assist Indicator, which help operators maintain image sharpness.
Meanwhile, iris, gain and shutter can all be controlled easily.
Transmit data for remote controllers and control PTZ cameras with the Network Trunk.

° Studio camera with 2/3 4K CMOS sensor
° LEMO and 12G-SDI connector
° Standard HD recording
° Optional and paid 4K license
° Integrated digital extender with 2x and 4x magnification
° Optical low-pass filter, available as an option
° Integrated V-mount battery plate
° High light intensity with F11
° Automatic image optimization based on lens properties (ARIA)
° UMBRA function for dynamic contrast and better focus control in dark shooting situations

Studio Cameras & Boxed Monitors

Sony

RCP-3500U

€ 5.235,42 VAT included

Available in 14 days

-2.5%

Sony

HDVF-EL30U

-2.5%

€9.148,74 € 8.920,03 VAT included

Available in 14 days

Sony

HDVF-EL75U

€ 6.613,46 VAT included

Available in 14 days

-2.5%

Sony

HDVF-EL20U

-2.5%

€6.875,69 € 6.703,80 VAT included

Available in 14 days

Download

Datasheet

Download (3.39MB)

The upgrade 4K is possible with week, month and year solution:
HZC-UHD9W - week
HZC-UHD9M - month
HZC-UHD9Y - year

Camera Section
Pickup Device : 2/3-inch type 4K CMOS
Effective Picture Elements : 3840 x 2160 (H x V)
Signal Format :
° 4K 2160: 59.94p, 50p, 60p, 30p, 29.97p, 25p, 24p, 23.98p
° HD 1080: 59.94p, 59.94i, 50p, 50i, 60p, 29.97PsF, 25PsF, 24PsF , 23.98PsF,
° HD 720: 59.94p, 50p SD 59.94i, 50i
Lens Mount : B4 Mount Lens
Built-in Filters : CC: Electrical / ND: 1; CLEAR, 2; 1/4ND, 3; 1/16ND, 4; 1/64ND
Sensitivity (at 2000 lx, 3200K, 89.9% reflectance) : F10 (59.94 Hz), F11 (50 Hz)
Signal-to-noise Ratio : -62dB
Horizontal Resolution : 2,000 TV lines
Gain : –6, –3, 0, 3, 6, 9, 12
Shutter Speed : 1/100, 1/150, 1/200, 1/250, 1/500, 1/1000, 1/2000
Shutter Speed (Slow Shutter (SLS)) : Support

Input/Output
Audio Input (CH1)
° XLR type: 3-pin, female (x1)
° MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FZ90), balanced
° MIC +48V: When supplying +48 V phantom power to microphones
° LINE IN: 0dBu, balanced
Audio Input (CH2)
° XLR type: 3-pin, female (x1)
° MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FZ90), balanced
° MIC +48V: When supplying +48 V phantom power to microphones
° LINE IN: 0dBu, balanced
Prompter/Genlock : BNC (x1); 1Vp-p, 75O
SDI Input/Output : BNC (x1)
SDI Output : BNC (x1)

CCU
Optical Fiber (x1), CCFN Cable or Single Mode Fiber Cable (LC type)
Distance of Power Supply : 300 m with optical fiber composite cable
Distance of Fiber Cable : 300 m (optical fiber composite cable), 10 km (single mode fiber with HXCE)
Intercom : XLR type: 5-pin, female (x1)
Earphone Output : 4pole stereo mini jack (x1)
Lens : 12-pin (x1)
Viewfinder : 20-pin (1)
Remote : 8-pin (x1)
TRUNK Input/Output : TRUNK LINE Remote 8pin : RS-422A
EXT Input/Output : DC-OUT 2pin
USB : USB 2.0 (x1)
DC Input : XLR-type 4-pin (x1), DC 10.5 V to 17 V
DC Output : 4-pin (x1), DC 10.5 V to 17 V

Lens
Lens Mount : 2/3-inch type Sony Bayonet
Focal Length : 8.2 mm (11/32 inches) to 164 mm (6 1/2 inches)
Zoom : Servo/Manual selectable
Zoom Ratio : 20 x
Maximum Relative Aperture : 01:01.9
Iris : Auto/Manual selectable F1.9 to F16 and C (Close)
Focus : Full manual focus 900 mm to 8 (MACRO OFF) 10 mm to 8 (MACRO ON, Wide)
Filter Thread : M82 mm, pitch 0.75 mm
Macro : On/Off switchable

General
Power Consumption : Approx.56W (Camera body only)
Operating Temperature : -10°C to +45°C / 14°F to +113°F"
Storage Temperature : -20°C to +60°C / -4°F to +140°F"
Dimensions (W x H x D) : (Body) 160 x 266 x 326 mm / (Body) 6 3/8 x 10 1/2 x 12 53/64 inches
Mass : (Body) Approx. 3.8 kg / (Body) Approx. 8 lb 6 oz

1x Broadcast Camera HXC-FV90 Neutrik connector
1x HZC-UHD9W (1 week upgrade 4K licence)
1x Camera Operation Guide
1x Operating Instructions (CD-ROM), JP, GB, FR, DE, IT, ES, CS
1x Lens Mount Cap
1x Flange back adjustment chart
1x Tally Number Plate (0~9)
1x Warranty booklet
