AK-HC5000

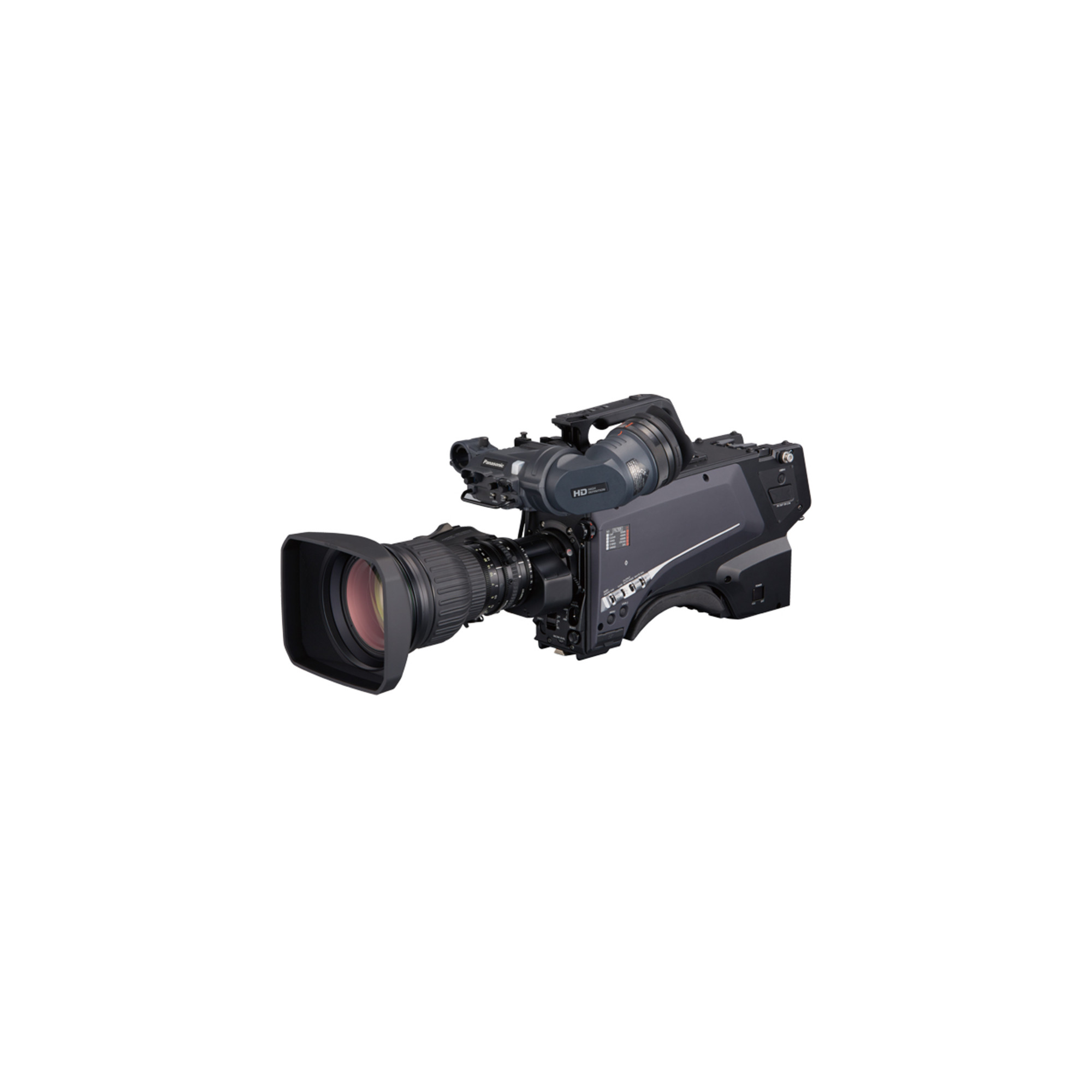

The AK-HC5000 Series HD Studio Handy Camera is a broadcast-use camera equipped with a newly developed 2/3-inch 3MOS sensor
that achieves high sensitivity and an excellent S/N ratio. While including functions appreciated in the conventional model such
as DRS
and CineGamma, the AK-HC5000 Series adds new features such as focus assist, flash band compensation, and skew reduction which is
realized through high-speed readout from the MOS sensor. There are additional functions to improve shooting experience including
enhanced shockless gain (-3 dB to 36 dB), a user gamma function, black gamma correction according to the pedestal setting, multi-step
DNR and easy matrix adjustment.
AK-HC5000 Series achieves excellent image quality and operability. When used with AK-UCU500 Camera Control Unit, it is capable
of
1080/60p, 240p image output and high-image-quality uncompressed long-distance transmission. The AK-HRP1000/HRP1005 Remote
Operation Panel equipped with a color LCD to provide visibility of the display for smooth control. The camera and camera contro
l unit
can be connected for approximately 2,000-meter long-distance transmission of video signals when power is supplied from the came
ra
control unit. The remote operation panel and the camera can be connected using dedicated cable. In addition, there is a plan to
support
IP connection using LAN-cable. The AK-HVF100 9-inches (230 mm) LCD color view finder has also been newly developed equipped with
a large display and diverse functions such as focus assist. Overall, this system offers superior cost performance with respect
to both
operability and ease of use.
