₦ 51,623,599.00 VAT excl.
Imager

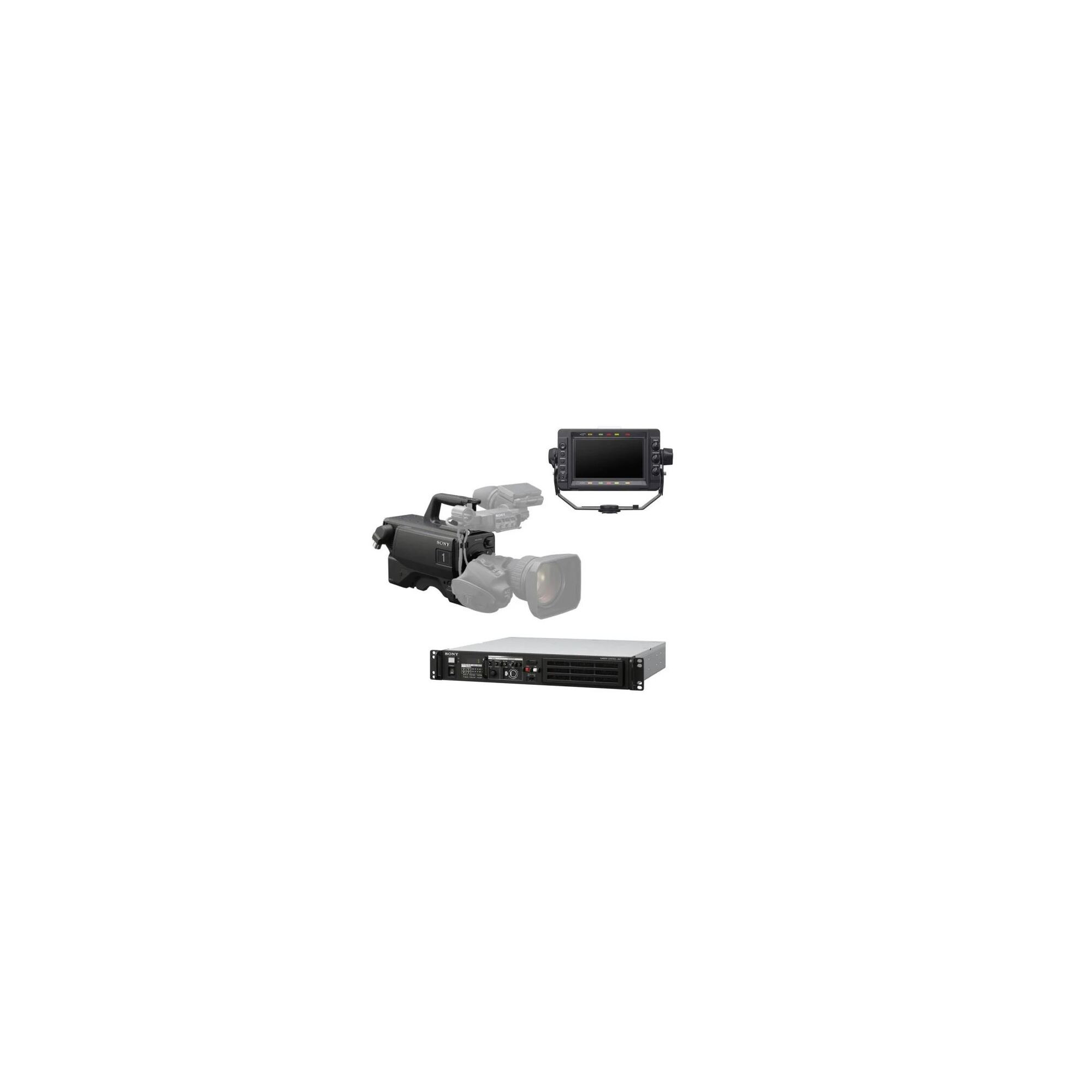

Imager : 2/3 inch type CMOS sensor with global shutter
Method : 3-CMOS, RGB
Electrical characteristics
Sensitivity: F12 with 1080/59.94i - F13 with 1080/50i (at 2,000 lx with 89.9% reflectance)
Signal-to-noise ratio : -62 dB or higher
Horizontal resolution : 1,000 TV lines (at center of screen), 5% or higher modulation
Geometric distortion : Negligible (not including lens distortion)
Optical system specifications
Spectrum system
F1.4 prism
Built-in filters
1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Input/output connectors
CCU : Electro-optical connector (LEMO 3K.93C connector) (x1)
LENS : 12-pin (x1)
VF : 20-pin (x1)
MIC : 1 IN XLR 3-pin, female (x1)
AUDIO IN CH1, CH2
XLR 3-pin, female (x1 each)
AUDIO switch for MIC: -60 dBu (can be selected up to -20 dBu in the menu), balanced
AUDIO switch for LINE: 0 dBu, balanced
INTERCOM 1, INTERCOM 2 : XLR 5-pin, female (x1)
EARPHONE : 4-pole mini jack (x1), (2-pole mono, 3-pole stereo, 4-pole CTIA standard, 4-pole OMTP standard)
DC IN : XLR 4-pin (x1), DC 10.5 to 17 V
DC OUT : 4-pin (x1), DC 10.5 to 17 V, max. 0.5 A*¹, 2-pin (x1), DC 10.5 to 17 V, Max. 2.5 A*¹
SDI 1 : BNC (x1)
SDI 2 : No
SDI MONI : BNC (x1)
TEST OUT : BNC (x1)
PROMPTER/GENLOCK : BNC (x1)
PROMPTER 1 Vp-p, 75 O
GENLOCK HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 O, SD: Black burst (NTSC: 0.286 Vp-p, 75 O/PAL: 0.3 Vp-p, 75 O)
PROMPTER2 : No
RET CTRL : 6-pin (x1)
REMOTE : 8-pin (x1)
TRACKER : 12-pin (x1)
CRANE : No
USB
USB 2.0 Type A 4-pin (x1) (for connecting USB drive)
NETWORK TRUNK : No
, 1.05 A (max.)
General
Operating temperature : .20°C to +45°C (.4°F to 113°F)
Storage temperature : .20°C to +60°C (.4°F to 140°F)
Mass : Approx. 4.8 kg (10 lb 9 oz)
Power requirements
AC 240 V, 1.05 A (max.), DC 240 V
Supplied accessories
Before Using This Unit (1), Operating Instructions (CD-ROM) (1), Cable clamp belt (1 set), Screws (+B3×8) (2), Attached label (1), Camera number label (1)
