AW-UE150AK

Name: AW-UE150AK
Brand: Panasonic
SKU: AW-UE150AK
Price: 16674385 NGN
Availability: OutOfStock

Panasonic

PTZ sensore MOS 4K Zoom : 20x - Full NDI - Low pass filter- Nero

go to the technical sheet

₦ 16,674,385.00

₦ 15,511,056.00 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

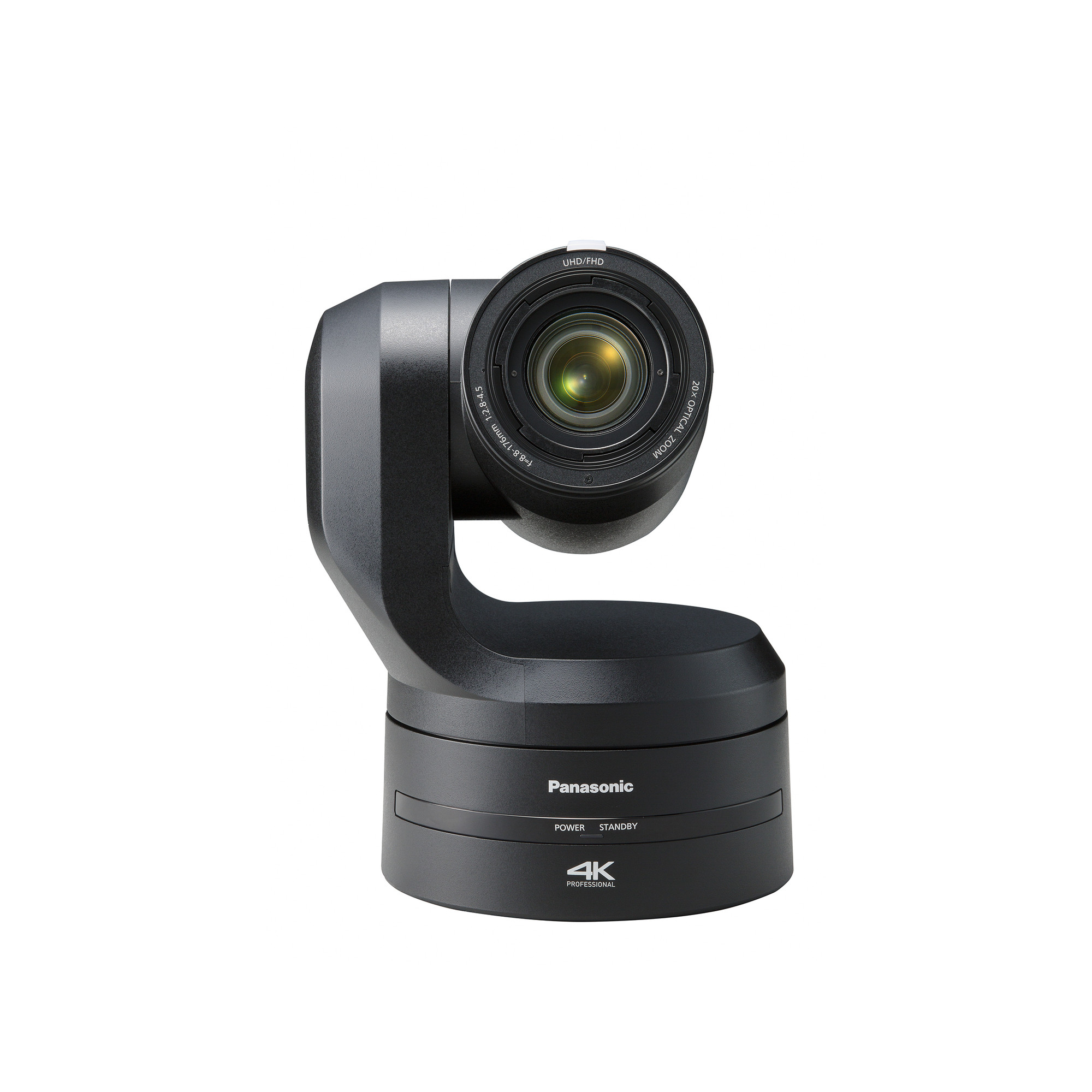

Panasonic 4K 12 MOS Sensor PTZ Camera, Optical Zoom: 20x, i.Zoom: UHD 24x, FHD 32x - Black

- High-sensitivity 1.0-type sensor supports 4K/60p recording
- Supports multiple transmission protocols, including NDI® High Bandwidth for low-latency 4K video.
- Built-in auto-tracking for flexible shooting
- Optical Low-pass Filter for Superior Image Quality that reduces luminance and colour moiré when filming monitors or LED walls

The AW-UE150A 4K PTZ camera has been designed to meet the needs of professional broadcasters and content creators, delivering advanced video quality, operability and efficiency in studio-based video productions.
The UE150A supports the NDI® High Bandwidth* protocol, enabling seamless IP-based, low-latency 4K video transmission.
This is in addition to existing support for SRT and NDI® HX2 protocols, ensuring steady performance in unstable network conditions.
It is also compatible with 12G-SDI, 2x 3G-SDI, HDMI, and fibre output formats.
This enables the UE150AW/AK to be easily integrated into a variety of on-site production systems, making it the perfect choice for both remote production and live streaming environments.

Exceptional performance and high-quality video
Equipped with a high-sensitivity 1.0-type 4K MOS sensor, Panasonic's UE150AW/AK delivers high quality video.
Its wide-angle lens (75.1° horizontal), 20x optical zoom, and built-in auto-tracking functionality make it the ideal choice for a versatile range of installations.
The UE150AW/AK features an optical low-pass filter (OLPF) that reduces luminance and colour moiré when filming monitors or LED walls, whilst HDR (HLG) compatibility delivers true-to-life image reproduction.
Its enhanced Optical Image Stabilizer (OIS) minimises image shake during pan and tilt operations, and upgraded synchronisation of pan, tilt and zoom presets for a smoother camera operation

Increased compatibility for any environment
The UE150AW/AK is compatible with Panasonic's AK-HRP1010GJ/HRP1015GJ Remote Operation Panel for seamless colour matching with studio cameras, increasing overall versatility and functionality within broadcasting setups

General
__________________
Power Requirements: DC12 V(10.8 V to 24.0 V)
PoE: IEEE802.3 bt standard : DC42 V to 57 V (Software authentication (LLDP) is supported)
Current Consumption: 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
Ambient Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity: 20 % to 90 % (no condensation)
Storage Temperature: -20 °C to 50 °C (-4 °F to 122 °F)
Dimensions: 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) | (excluding protrusions, cable cover,direct ceiling mount bracket)
Weight: Approx. 4.3 kg (9.48 lbs) (excluding mount bracket)

Camera Unit
__________________
Imaging Sensor: 1-type 4K MOSx1
Effective Pixels: Approx 20,180,000 pixel
Zoom: Optical zoom: 20x | i.Zoom: UHD 24x, FHD 32x
Lens: Motorized Optical 20x zoom, F2.8 to F4.5
[f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches),
35 mm (1-3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)]
Conversion Lens: Noy supported
Angle of View Range:
- Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
- Vertical angle of view: 46.7° (wide) to 2.3° (tele)
- Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
ND Filter: Through, 1/4, 1/16, 1/64, IR through (IR through is used as "Night mode")
Focus: Switching between auto and manual
Focus Distance: Entire zooming range: 1000 mm (3.3 ft) | Wide end: 100 mm (0.33 ft)
Color Separation Optical System: 1MOS
Standard Sensitivity: F9, 2000 lx
Minimum Illumination: 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
Horizontal Resolution: 2,000 TV lines Typ (Center area)
Gain Selection: Auto, -3 dB to 36 dB
·1 dB step increments can be set.
Super Gain function equipped : +37 dB to 42 dB
Frame Mix: 0 dB, 6 dB, 12 dB, 18 dB, 24 dB

Input Connector
____________________
G/L IN: BBS (Black Burst Sync), tri-level sync supported
MIC/LINE Input: MIC/LINE input compatible (SDI/HDMI/IP)
AAC compatible (compatible with IP only)
Ø 3.5 mm stereoe: TCP/UDP | Unicast/Multicast
