AW-UE100WEJ
Panasonic
5025232911790

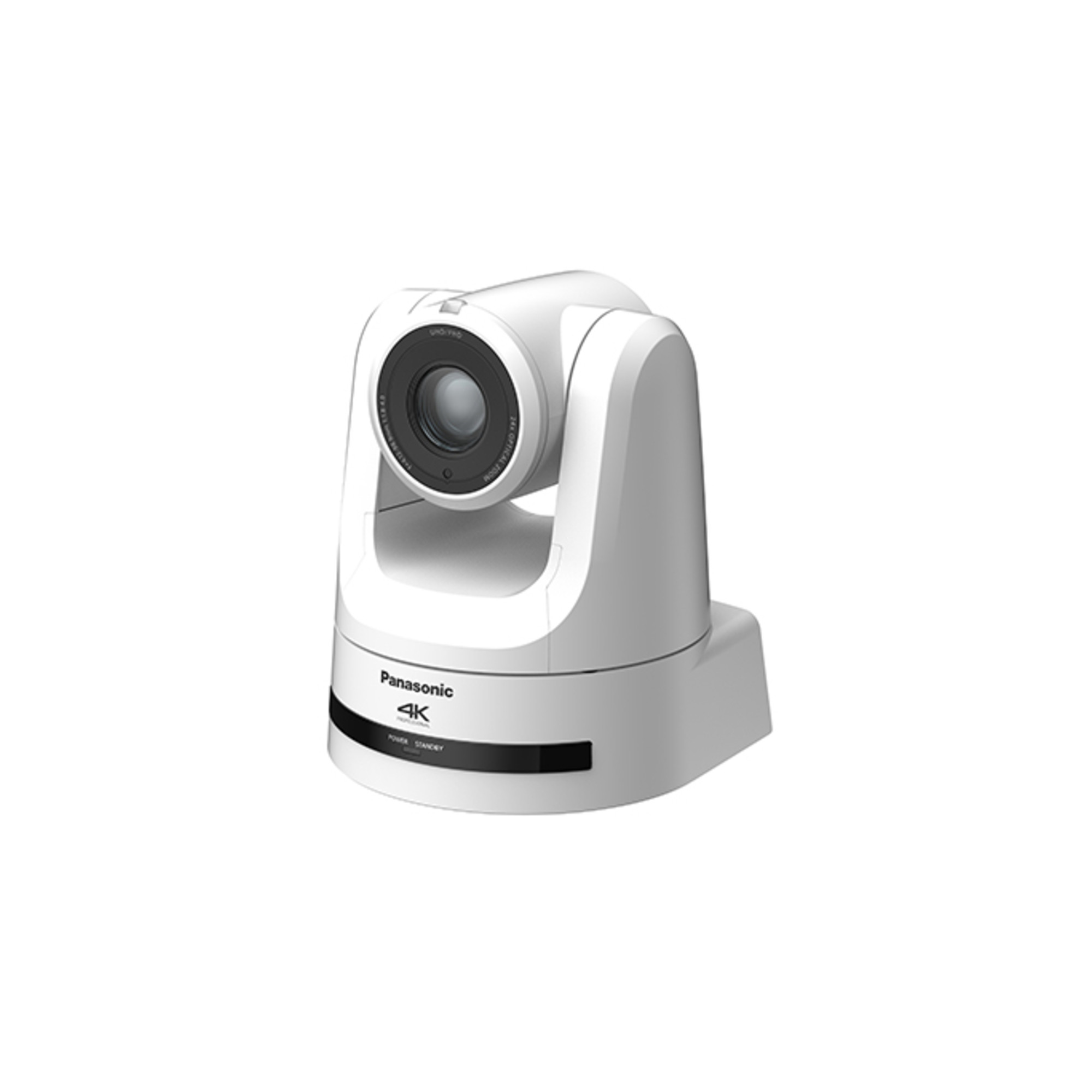

World's First 4K/60p PTZ Camera supporting NDI and SRT White
go to the technical sheet
€ 6.416,55
€ 5.968,88 VAT excl.
Supports high bandwidth NDI for low latency transmission of high-quality 4K 60p video, and SRT for high-quality and stable transmission, and also compatible with 12G-SDI output for use in a wide range of situations, from live streaming of events to studio production.G-SDI, HDMI, IP, USB (mini B)
Inputs include genlock, audio (mic/line)
RS422, RS232C, IP remote control types
microSD card recording function
Key features
Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT
Supports 4K 60p shooting and 12G-SDI output
Includes a wide-angle lens with a 74.1° field of view and 24x optical zoom
Supports FreeD for building AR/VR systems
Adopts new mechanical pan/tilt for improved responsiveness and quietness
World's First 4K/60p PTZ Camera supporting NDI and SRT
Supports high bandwidth NDI for low latency transmission of high-quality 4K 60p video, and SRT for high-quality and stable transmission, and also compatible with 12G-SDI output for use in a wide range of situations, from live streaming of events to studio production.
Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT
High bandwidth NDI that can transmit 4K video at speeds of up to 250 Mbps and full HD video up to 100 Mbps is included to provide high-quality low latency live video transmission with a single LAN cable. High efficiency low bandwidth NDI|HX (HD) is also included to enable video transmission at low bitrates. SRT is also supported to maintain stability while transmitting high-quality video, even in unstable network environments. RTMP/RTMPS provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera.
Supports 4K 60p shooting and 12G-SDI output
Supports 4K 60p/50p video at 3840 x 2160 to provide smooth and high-quality shooting of moving images, and a wide variety of output interfaces such as 12G-SDI, 3G-SDI, HDMI, and IP. The AW-UE100 PTZ camera offers PoE++ support for camera power, control and video transmission over a single cable. Additionally, a power adapter is included with the camera.
Includes a wide-angle lens with a 74.1° field of view and 24x optical zoom
A wide angle lens with a horizontal angle of view of 74.1 degrees enables a wide area to be shot from a limited installation space, and 24x optical zoom maintains high image quality at high zoom ratios. This allows shooting in large indoor spaces.
Supports FreeD for building AR/VR systems
FreeD command output enables connection with AR/VR (Augmented Reality / Virtual Reality) systems. This allows the camera tracking information (pan/tilt/zoom/focus/iris) to be output together with a synchronization signal to easily build systems without an encoder.
Adopts new mechanical pan/tilt for improved responsiveness and quietness
The inclusion of a Direct Drive mechanism improves the responsiveness of pan/tilt and quietness during pan/tilt operations. In addition to Optical Image Stabilization (OIS), Electronic Image Stabilization (EIS) has been added for the roll direction. This provides stable video shooting even at locations utilizing robotics and rail systems, etc.
Inputs include genlock, audio (mic/line)
RS422, RS232C, IP remote control types
microSD card recording function
Key features
Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT
Supports 4K 60p shooting and 12G-SDI output
Includes a wide-angle lens with a 74.1° field of view and 24x optical zoom
Supports FreeD for building AR/VR systems
Adopts new mechanical pan/tilt for improved responsiveness and quietness
World's First 4K/60p PTZ Camera supporting NDI and SRT
Supports high bandwidth NDI for low latency transmission of high-quality 4K 60p video, and SRT for high-quality and stable transmission, and also compatible with 12G-SDI output for use in a wide range of situations, from live streaming of events to studio production.
Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT
High bandwidth NDI that can transmit 4K video at speeds of up to 250 Mbps and full HD video up to 100 Mbps is included to provide high-quality low latency live video transmission with a single LAN cable. High efficiency low bandwidth NDI|HX (HD) is also included to enable video transmission at low bitrates. SRT is also supported to maintain stability while transmitting high-quality video, even in unstable network environments. RTMP/RTMPS provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera.
Supports 4K 60p shooting and 12G-SDI output
Supports 4K 60p/50p video at 3840 x 2160 to provide smooth and high-quality shooting of moving images, and a wide variety of output interfaces such as 12G-SDI, 3G-SDI, HDMI, and IP. The AW-UE100 PTZ camera offers PoE++ support for camera power, control and video transmission over a single cable. Additionally, a power adapter is included with the camera.
Includes a wide-angle lens with a 74.1° field of view and 24x optical zoom
A wide angle lens with a horizontal angle of view of 74.1 degrees enables a wide area to be shot from a limited installation space, and 24x optical zoom maintains high image quality at high zoom ratios. This allows shooting in large indoor spaces.
Supports FreeD for building AR/VR systems
FreeD command output enables connection with AR/VR (Augmented Reality / Virtual Reality) systems. This allows the camera tracking information (pan/tilt/zoom/focus/iris) to be output together with a synchronization signal to easily build systems without an encoder.
Adopts new mechanical pan/tilt for improved responsiveness and quietness
The inclusion of a Direct Drive mechanism improves the responsiveness of pan/tilt and quietness during pan/tilt operations. In addition to Optical Image Stabilization (OIS), Electronic Image Stabilization (EIS) has been added for the roll direction. This provides stable video shooting even at locations utilizing robotics and rail systems, etc.
ST500 Wall Mount B
€ 83,07
VAT included
Available 3 unit in 4 Days
AW-RP150GJ
€ 5.147,55
VAT included
Available 2 unit in 4 Days
AW-RP60GJ
€ 2.596,50
VAT included
Available 1 unit in 4 Days
AW-H Wall Mount White
€ 83,07
VAT included
Available in 19 days
PTZ-RIG
€ 146,22
VAT included
Available 27 unit in 4 Days
PTZ PRO v2
-2.5%
€2.629,51
€ 2.563,77
VAT included
Available 1 unit in 4 Days
PGX.UE100.0
€ 186,35
VAT included
Available in 19 days
AW-RM50AG
€ 121,60
VAT included
Available 5 unit in 4 Days
APTZ001
-2.5%
€637,18
€ 621,25
VAT included
Available 1 unit in 4 Days
APTZ002
-2.5%
€127,71
€ 124,52
VAT included
Available in 14 days
QUICK-PAD-V1-BK
€ 1.025,10
VAT included
Available in 14 days
AW-SF300G
-2.5%
€1.495,88
€ 1.458,49
VAT included
Available in 14 days
Lifto 25
-2.5%
€2.933,73
€ 2.860,39
VAT included
Available 1 unit in 4 Days
LX-ePed
€ 2.968,88
VAT included
Available in 14 days
LX-ePed Studio
€ 3.127,76
VAT included
Available in 14 days
Weight Approx. 2.2 kg (4.85lbs) (excluding cable cover, direct ceiling mount bracket)Approx. 2.3 kg (5.07lbs) (excluding direct ceiling mount bracket
Current Consumption Main unit: 3.0 A (DC jack input), 1.2 A (PoE++ power supply), AC adaptor (included):3.0 A
Power Requirements Main unit: DC 12 V±10% (10.8 V to 13.2 V), AC adaptor: AC 100 V to 240 V
PoE++ Complies with IEEE802.3bt: DC 42 V to 57 V (camera end) (supports softwareauthentication (LLDP communication)
Dimensions 169.2 mm x 170.6 mm x 204.6 mm (6.66 inches x 6.72 inches x 8.06 inches)(excluding protrusions, cable cover, and direct ceiling mount bracket)
mage Sensor 1/2.5-type 4K MOS x 1
Lens Electric powered 24x optical zoom F1.8 to F4.0 (f = 4.12 mm to 98.9 mm, convertedto 35 mm: 25.0 mm to 600.0 mm)i.Zoom (UHD: 28x, FHD: 36x) (*switches from optical 24x i.Zoom digital zoom)
Field of View Range Horizontal field of view: 74.1° (wide) to 3.3° (tele), vertical field of view: 46.0° (wide)to 1.9° (tele),diagonal field of view: 81.8° (wide) to 3.8° (tele)
Horizontal Resolution 1,400 TV lines Typ (center area)
Output Formats [4K formats] 2160/59.94p, 2160/50p, 2160/29.97p (native), 2160/25p (native),2160/24p (native), 2160/23.98p (native)[HD formats] 1080/59.94p, 1080/50p, 1080/29.97p (native), 1080/29.97PsF,1080/25p (native), 1080/25PsF, 1080/23.98p over 59.94i, 1080/24p (native),1080/23.98p (native), 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
HDMIHDMI 2.0 connector4:2:2/10 bit*3-4
LANLAN for IP control and video transmission/PoE++ terminal (RJ-45)
RS-422CONTROL IN RS422A (RJ-45)
12G-SDI OUTSMPTE2082-1, SMPTE292 compliant/75 O (BNC x 1)
3G-SDI OUTSMPTE292/75 O (BNC x 1)*5
MIC/Line Input Supported (SDI/HDMI/IP), AAC compatible (IP only) O3.5 mm stereo mini jackFor mic input, input level: -40 dBV (0 dB = 1 V/Pa, 1 kHz) plug-in power compatible,supply voltage: 2.5 V ±0.5 Vfor line input, input level: -10 dBVInput volume variable range: -36 dB to 12 dB (3 dB step)embedded audio output level: -12 dBFSSampling frequency: 48 kHzQuantified bit count: 24bit (SDI, HDMI), 16bit (IP)
Risoluzione 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180
Tilting Range -30° to 210°*6
Panning Range ±175°
Video Compression Format JPEG (MJPEG), H.264, H.265, NDI|HX, High bandwidth NDI
NDI Support NDI, NDI|HX: Included as standard*7*8
Mechanical Pan/Tilt Direct Drive system
Note Product specifications are subject to change without notice for reasons ofimprovement, etc.*3: HDCP not supported.*4: VIERA Link not supported.*5: Level-A/Level-B supported.*6: The main unit may appear in video, depending on the pan/tilt position.*7: High bandwidth NDI and high efficiency low bandwidth NDI|HX cannot be usedsimultaneously.*8: NDI: High bandwidth NDI, NDI|HX: High efficiency low bandwidth NDI|HX.*NDI and NDI|HX, a technology of NewTek, Inc. NDI and NDI|HX are registeredtrademarks of NewTek, Inc.* The terms HDMI and HDMI High-Definition MultimediaInterface, and the HDMI Logo are trademarks or registeredtrademarks of HDMI Licensing Administrator, Inc. in the United States and othercountries.* "YouTube" and the "YouTube logo" are registered trademarks of GoogleInc.* "Facebook" is a registered trademark of Facebook, Inc.
